Receiver Drier: Notes

WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

MATERIAL SPECIFICATIONS

Item	Specification
Motorcraft® PAG Refrigerant Compressor Oil YN-12-D	WSH-M1C231-B

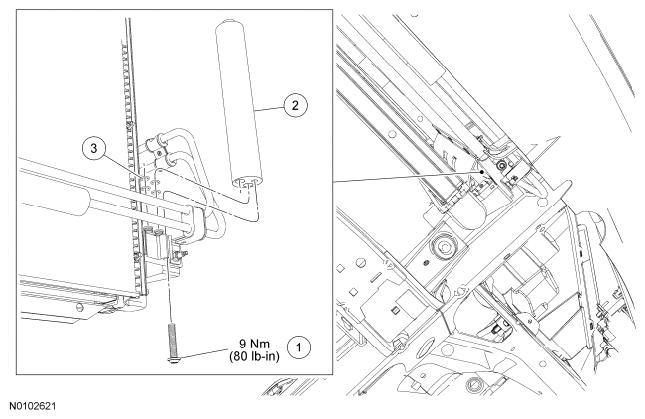

Fig 1: Receiver/Drier With Bolt And O-Ring Seal With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Receiver/drier bolt
2	19C836	Receiver/drier
3	-	Receiver/drier fitting O-ring seal (4 required)
