Engine Ignition
WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty and 2013 Ford F-450 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

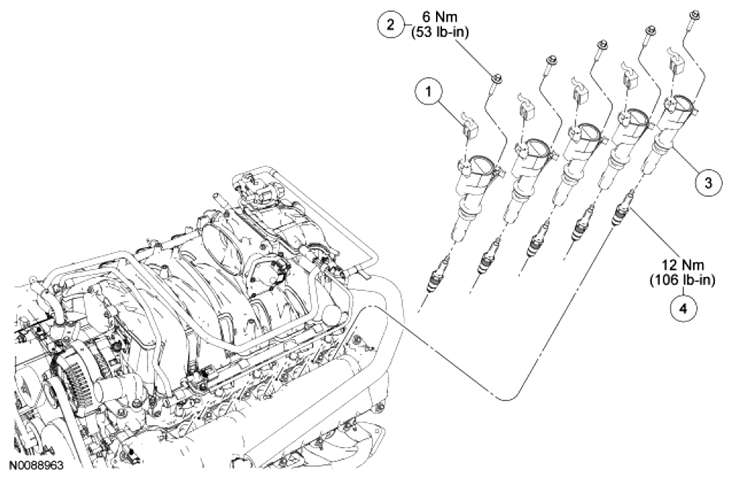

NOTE:
LH shown, RH similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | - | LH ignition coil-on-plug electrical connector (part of 12B637) (5 required) |
| 2 | W503282 | LH ignition coil-on-plug bolt (5 required) |
| 3 | 12029 | LH ignition coil-on-plug (5 required) |
| 4 | 12405 | LH spark plug (5 required) |
- Refer to the procedures and/or exploded views in this article for any Warnings, Notices, Notes, Materials, Specifications, and Special Tools. Items in the exploded views may not be listed in order of removal.
