Powertrain Control Module (PCM): Removal
NOTE:
Removal steps in this procedure may contain installation details.
-
WARNING: Before beginning any service procedure in this article, refer to Safety Warnings in GENERAL INFORMATION -- (HYBRID) . Failure to follow this instruction may result in serious personal injury.
Refer to: HEALTH AND SAFETY PRECAUTIONS .
-
NOTE: This step is only necessary when installing a new component.
Download the module information to the diagnostic tool using the Programmable Modules Installation routine.
Use the General Equipment: Ford Diagnostic Equipment

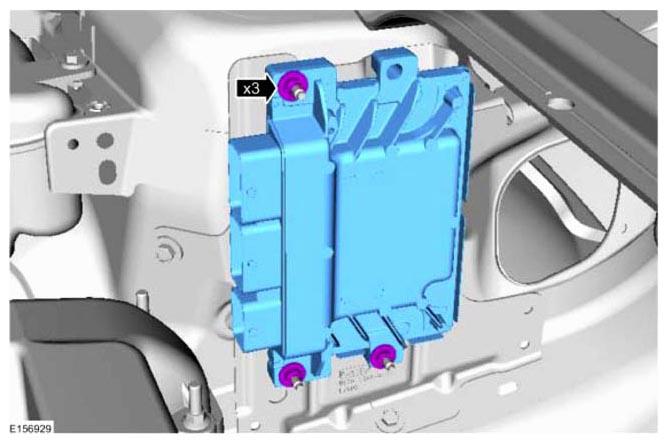

- Torque
: 89 lb.in (10 Nm)
