Front Brake Caliper: Removal

WARNING: This page is about a different car, the 2015 Lincoln MKT. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Before beginning any service procedure in this service information, refer to Safety Warnings in SERVICE INFORMATION

NOTE: Do not spill brake fluid on painted or plastic surfaces or damage to the surface may occur. If brake fluid is spilled onto a painted or plastic surface, immediately wash the surface with water.

NOTE: Do not allow grease, oil, brake fluid or other contaminants to contact the pad lining material, or damage to components may occur. Do not install contaminated pads.

NOTE: Removal steps in this procedure may contain installation details.

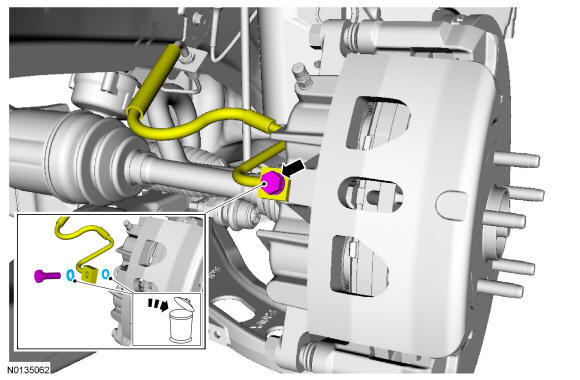

1.

Discard the specified component. Follow local disposal regulations.
- To install, tighten to 47 Nm (35 lb-ft).

Courtesy of FORD MOTOR COMPANY

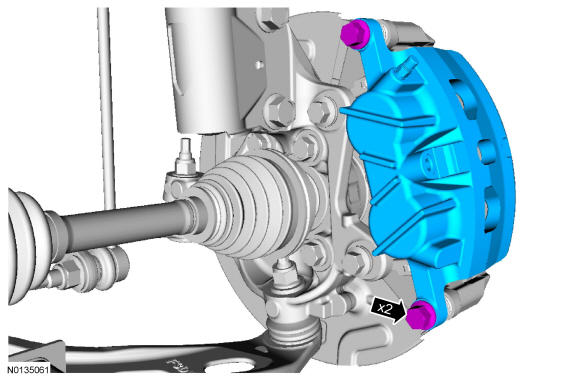

2.

NOTE: Make sure the brake caliper guide pin bolts are clean and free of debris or a binding condition may occur.

NOTE: Make sure the caliper pin boots are correctly seated to prevent corrosion to the guide pins.
- 325 mm (13 in) brakes: To install, tighten to 72 Nm (53 lb-ft).
- 352 mm (14 in) brakes: To Install, tighten to 75 Nm (55 lb-ft).

Courtesy of FORD MOTOR COMPANY
