Removal And Installation: Condenser: Removal
WARNING: This page is about a different car, the 2016 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- 1.
Recover the refrigerant. Refer to: Air Conditioning (A/C) System Recovery, Evacuation and Charging .
- 2.
Remove the radiator grille. Refer to: Radiator Grille .
- 3.
Remove the air cleaner. Refer to: Air Cleaner - 2.7L EcoBoost . Refer to: Air Cleaner - 3.5L Duratec . Refer to: Air Cleaner - 3.5L EcoBoost . Refer to: Air Cleaner - 5.0L 32V Ti-VCT .
- 4.

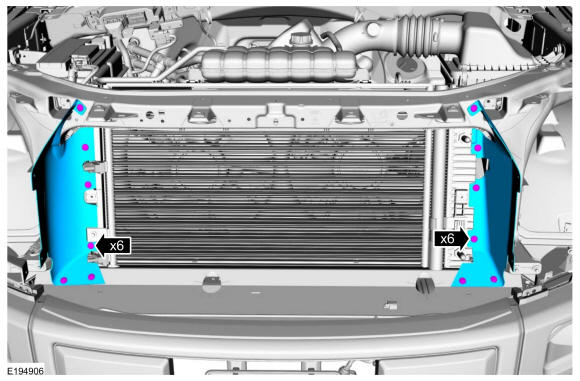

Remove RH and LH radiator side air deflector pin-type retainers and the radiator side air deflectors.
- 5.NOTE: 5.0L transmission fluid auxiliary cooler shown, others similar.
If equipped with a transmission fluid auxiliary cooler, remove the retainers and position it aside.
Torque: 62 lb.in (7 Nm)
- 6.NOTE: Make sure that all openings are sealed.

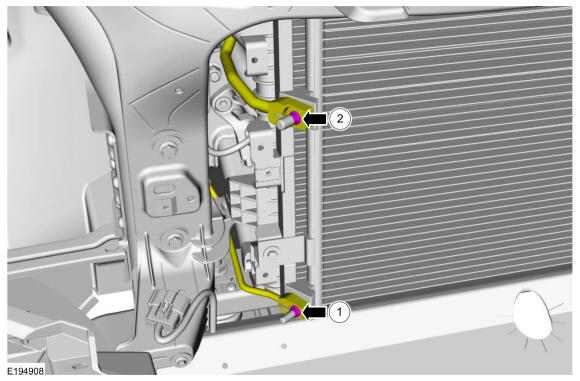

Remove the condenser inlet and outlet nuts and disconnect the fittings.
Torque:
1: 71 lb.in (8 Nm)
2: 133 lb.in (15 Nm)
