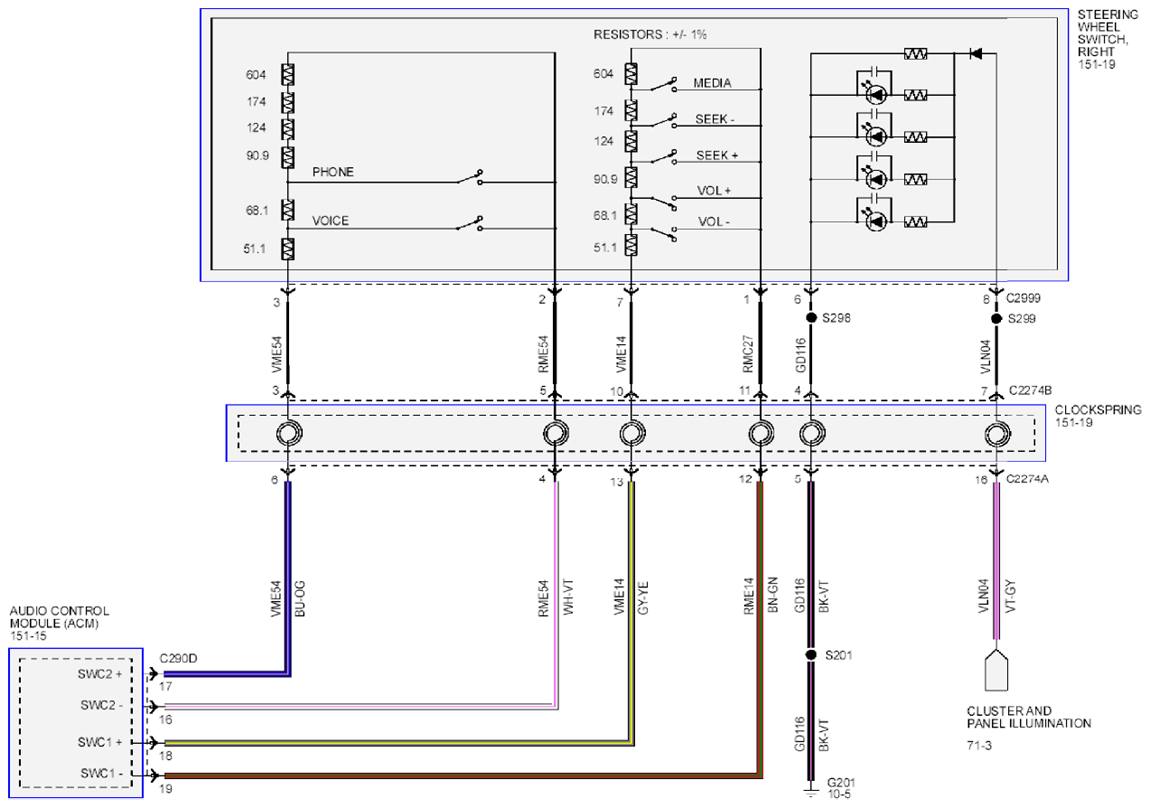

Fig 1: Shaker/Shaker Pro - Wiring Diagram (With Redundant Audio Controls/Sync/Navigation)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
