Power Steering Control Module (PSCM) Connector End View (C1463A)

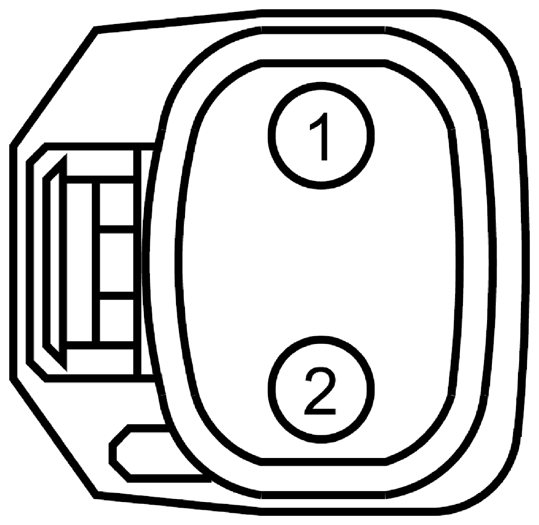

Fig 1: Identifying Power Steering Control Module Connector (C1463A)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	GD125 (BK)	8	GROUND - FENDER FRONT RIGHT # 3RD STUD
2	SBF01 (RD)	8	BATTERY - # PLUS	3.7L/5.0L
2	SBF01 (RD)	6	BATTERY - # PLUS	5.8L
