OEM Ground Distribution: Grounds: G201

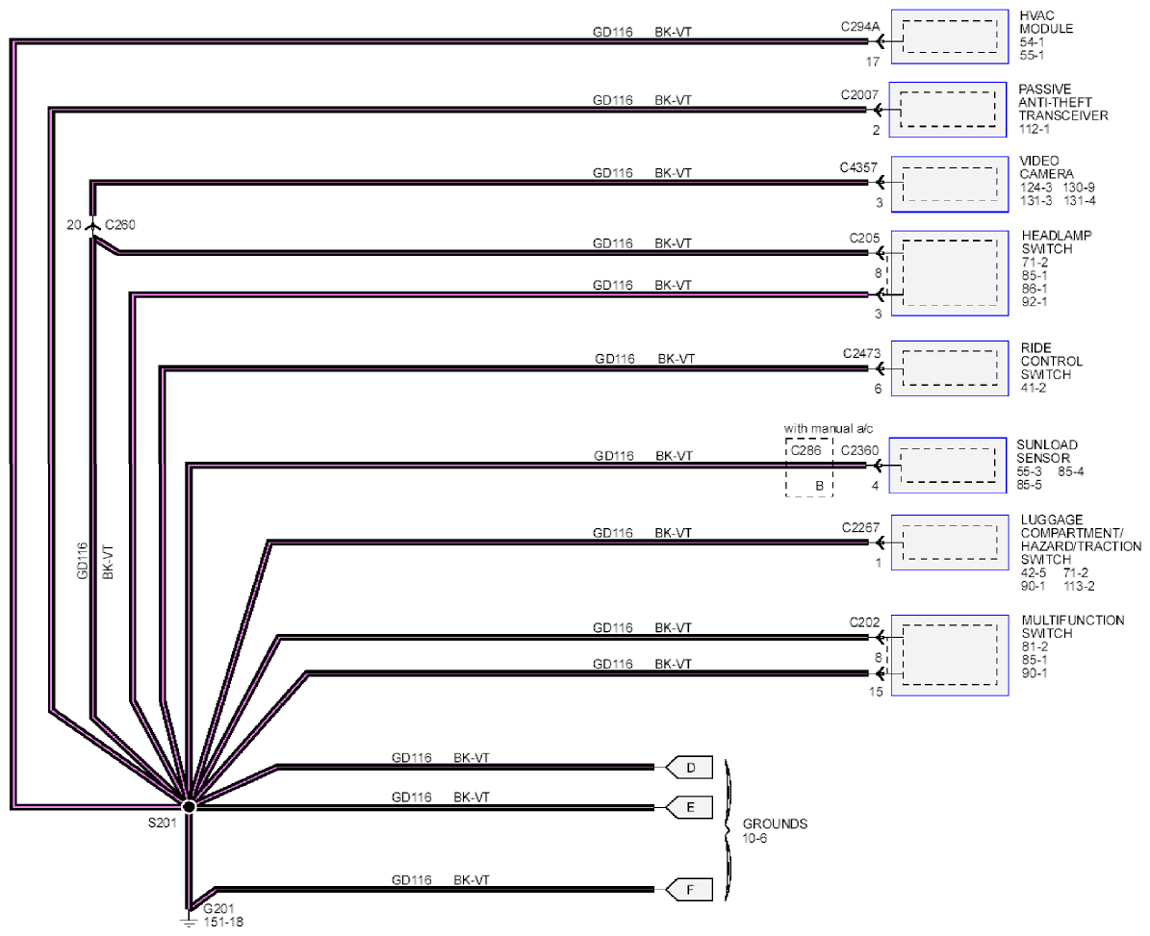

Fig 1: Grounds - Wiring Diagram (G201)
G09283090Courtesy of FORD MOTOR CO.
