Multifunction Switch, Wiper/Washer Portion - Front
›
Schematic
Multifunction Switch, Wiper/Washer Portion - Front: Schematic

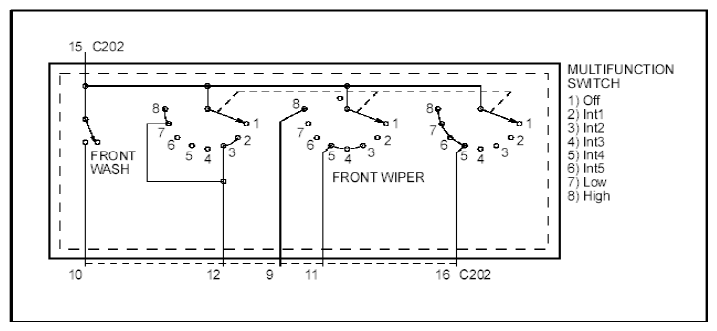

Fig 1: Multifunction Switch, Wiper/Washer Portion Schematic (Front)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
