Fuel Level Sensor: Notes
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.
SPECIAL TOOL DESCRIPTION
| Fuel Storage Tanker 164-R3202 or equivalent |
|
| Fuel Tank Sender Unit Wrench 310-123 |

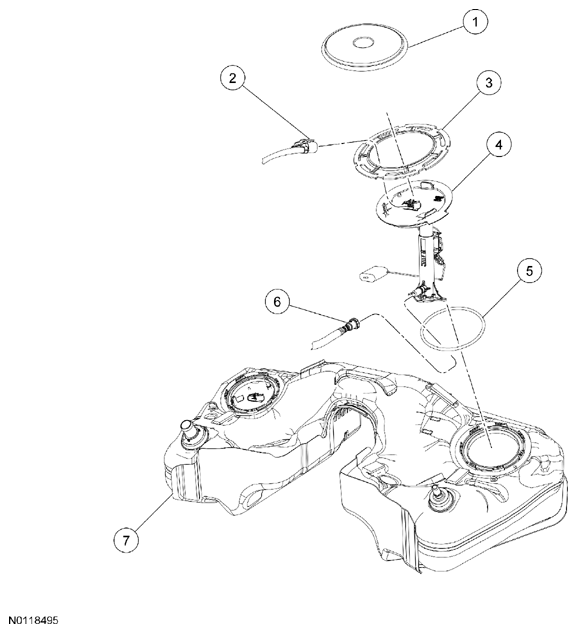

| Item | Part Number | Description |
|---|---|---|
| 1 | 9C335 | Fuel level sensor access cover |
| 2 | 14A464 | Fuel level sensor electrical connector |
| 3 | 9C385 | Fuel level sensor lock ring |
| 4 | 9275 | Fuel level sensor |
| 5 | 9E275 | Fuel level sensor O-ring seal |
| 6 | - | Internal fuel tube-to-fuel level sensor quick connect coupling (part of 9002) |
| 7 | 9002 | Fuel tank |
