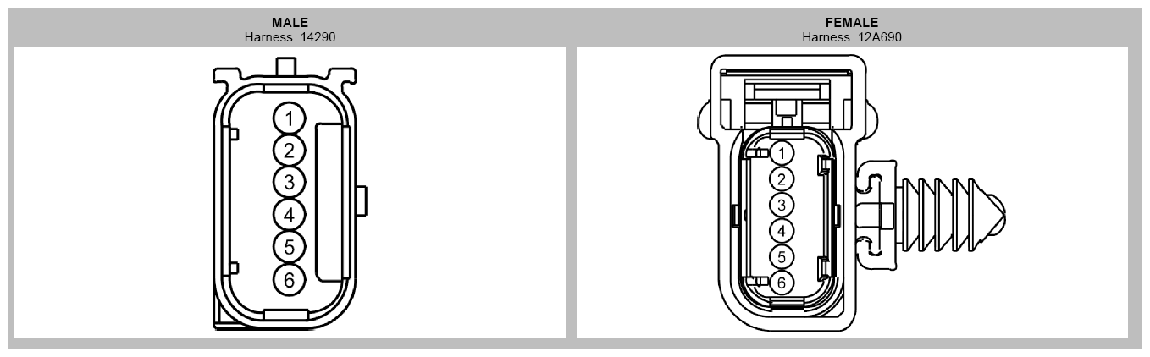

Inline Connector End View (C192)

Fig 1: Identifying Inline Connector (C192)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Qualifier
1	CE620 (WH-GN)	18	5.8L
2	VE740 (VT-GY)	20	5.8L
3	CBB48 (GY-YE)	20	5.8L
4	RE320 (BU)	20	5.8L
5	VE807 (YE-VT)	20	5.8L
6	GD123 (BK-GY)	18	5.8L
