Module Communications Network: Notes

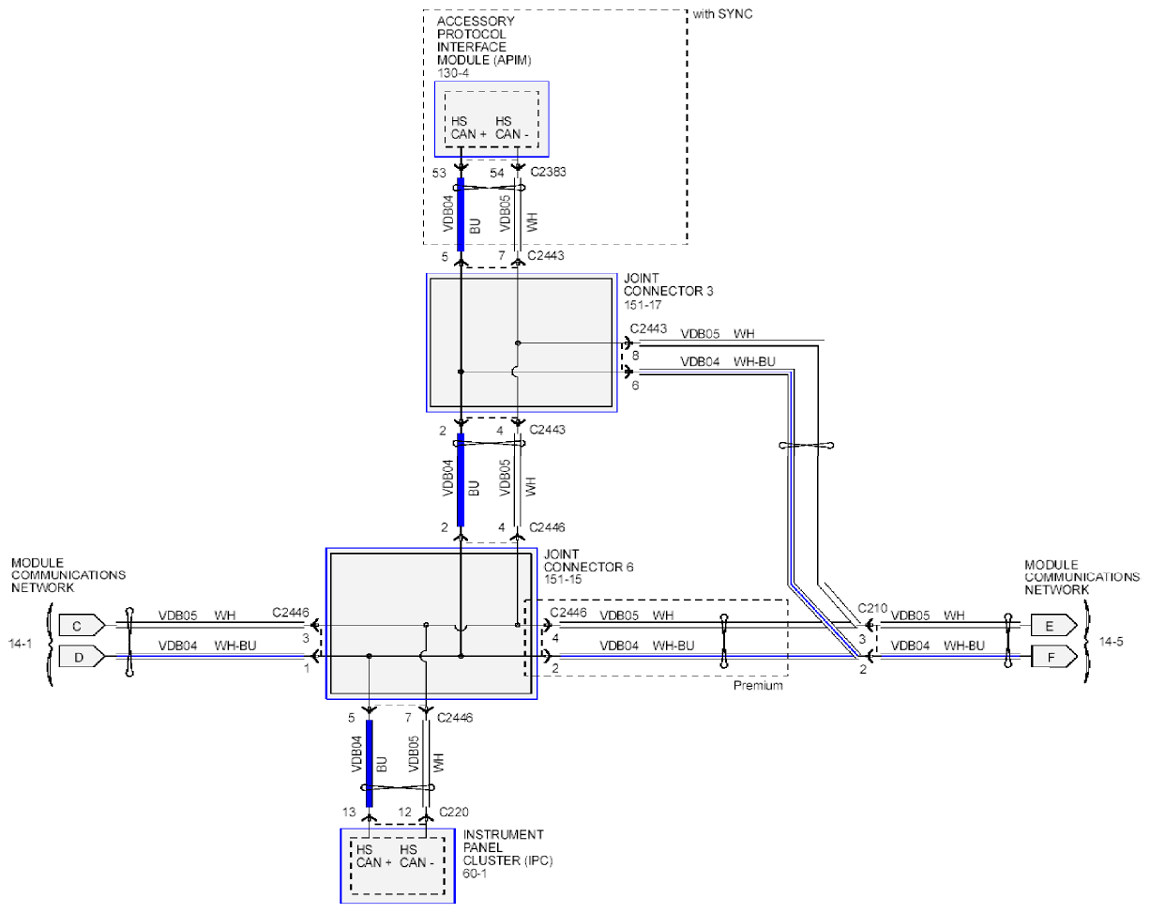

Fig 1: Module Communications Network - Wiring Diagram (1 Of 4)

Courtesy of FORD MOTOR CO.

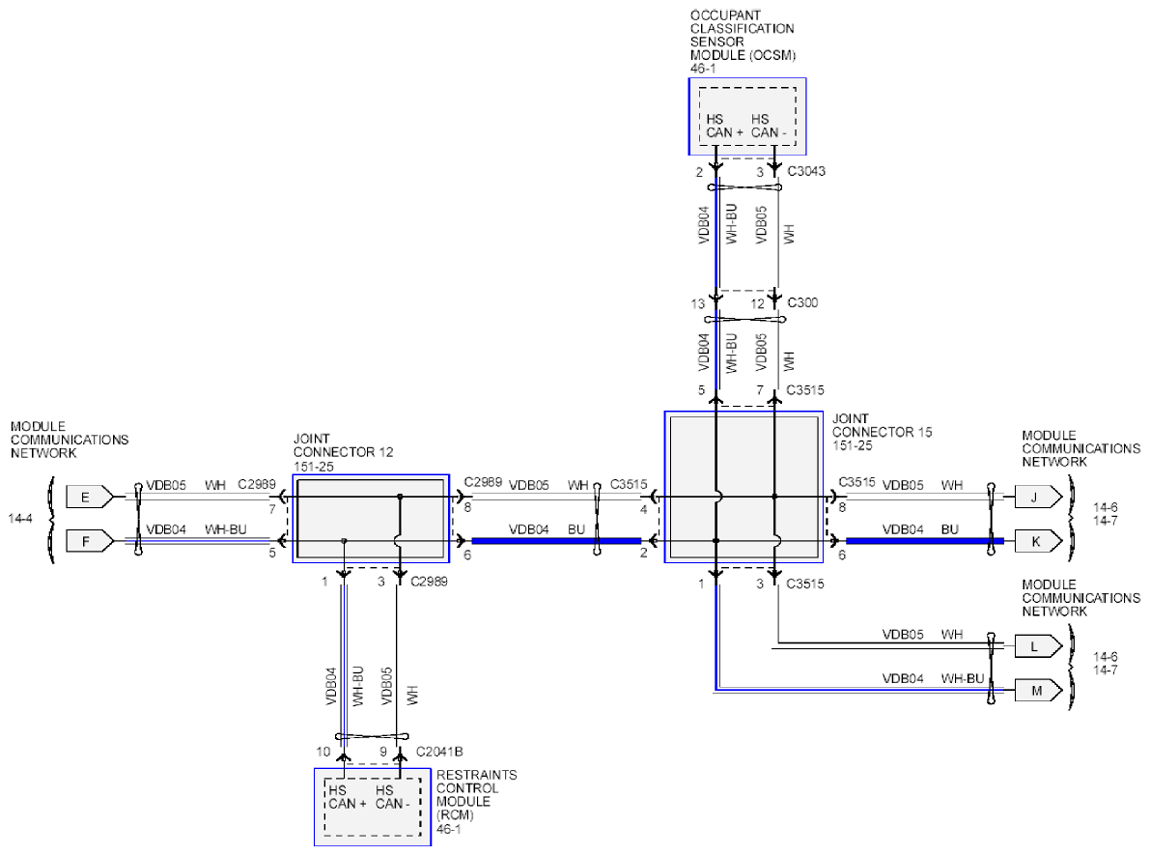

Fig 2: Module Communications Network - Wiring Diagram (2 Of 4)

Courtesy of FORD MOTOR CO.

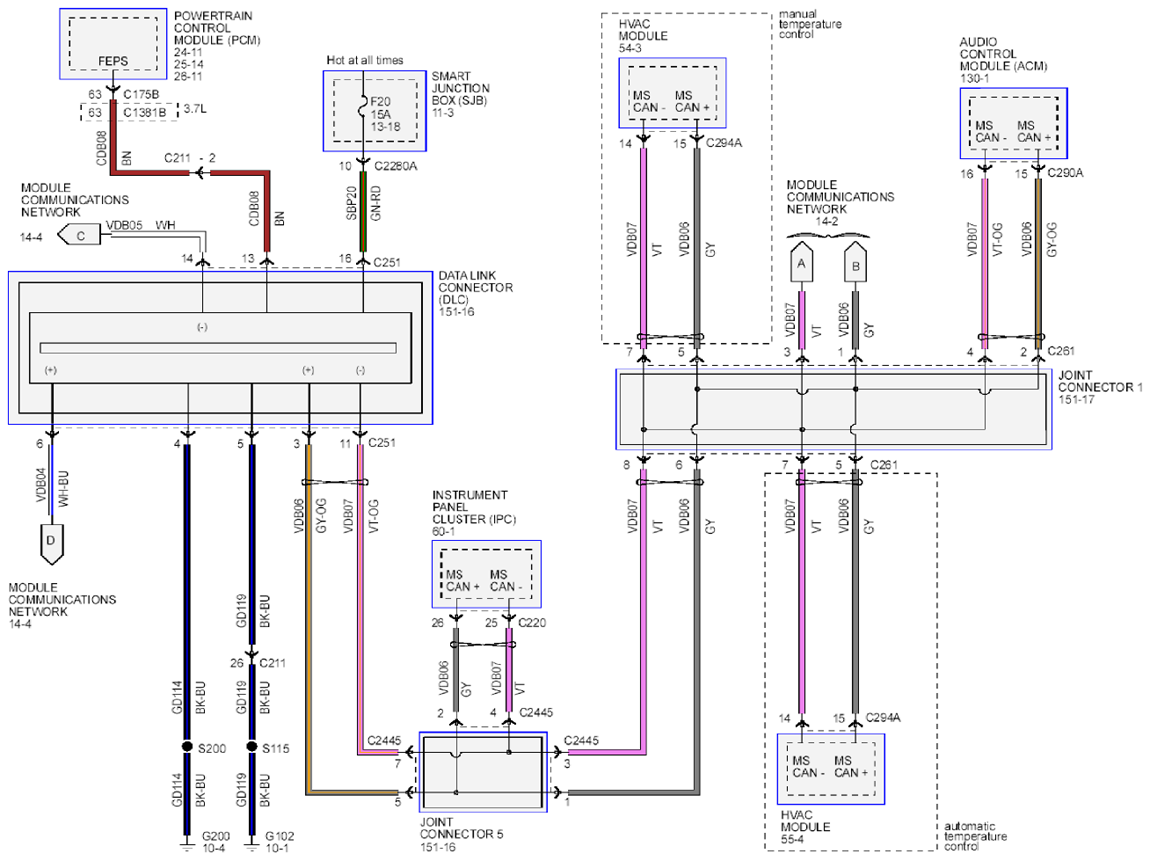

Fig 3: Module Communications Network - Wiring Diagram (3 Of 4)

Courtesy of FORD MOTOR CO.

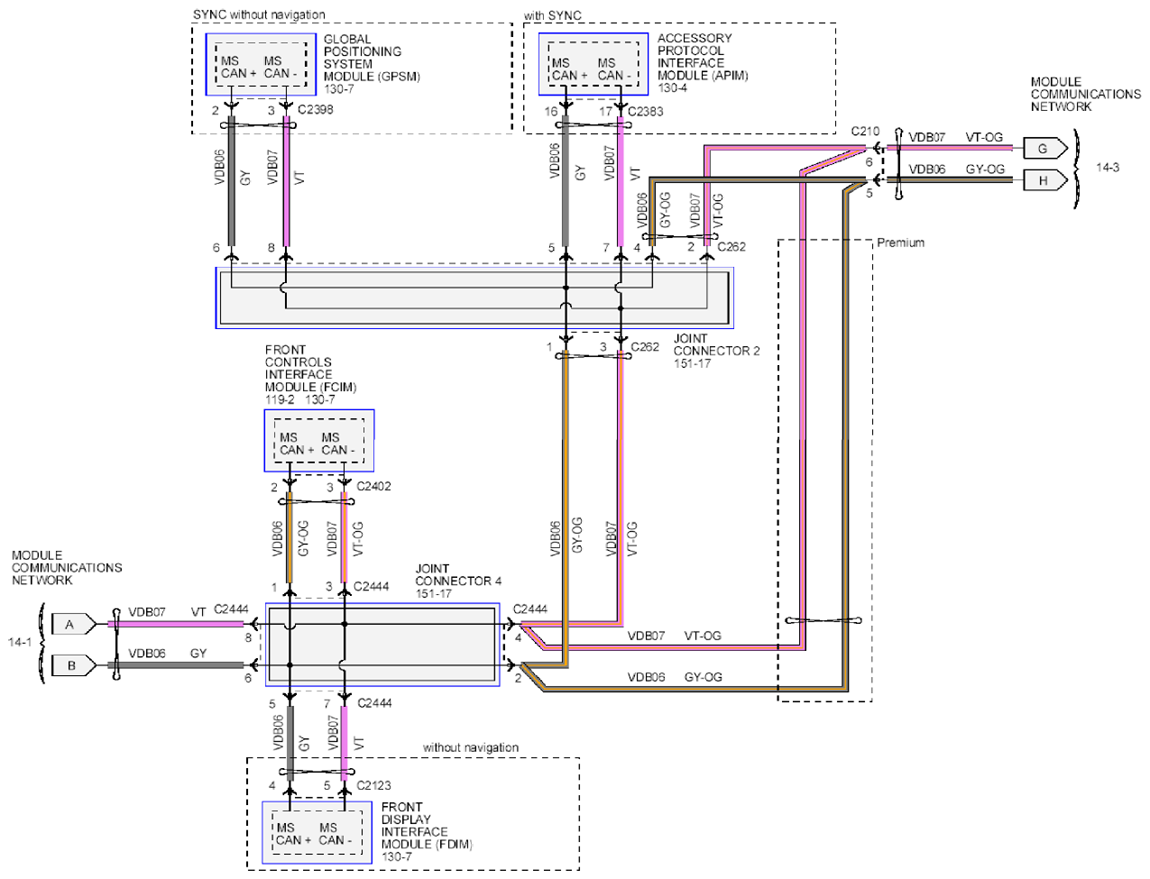

Fig 4: Module Communications Network - Wiring Diagram (4 Of 4)

Courtesy of FORD MOTOR CO.
