Component Location View

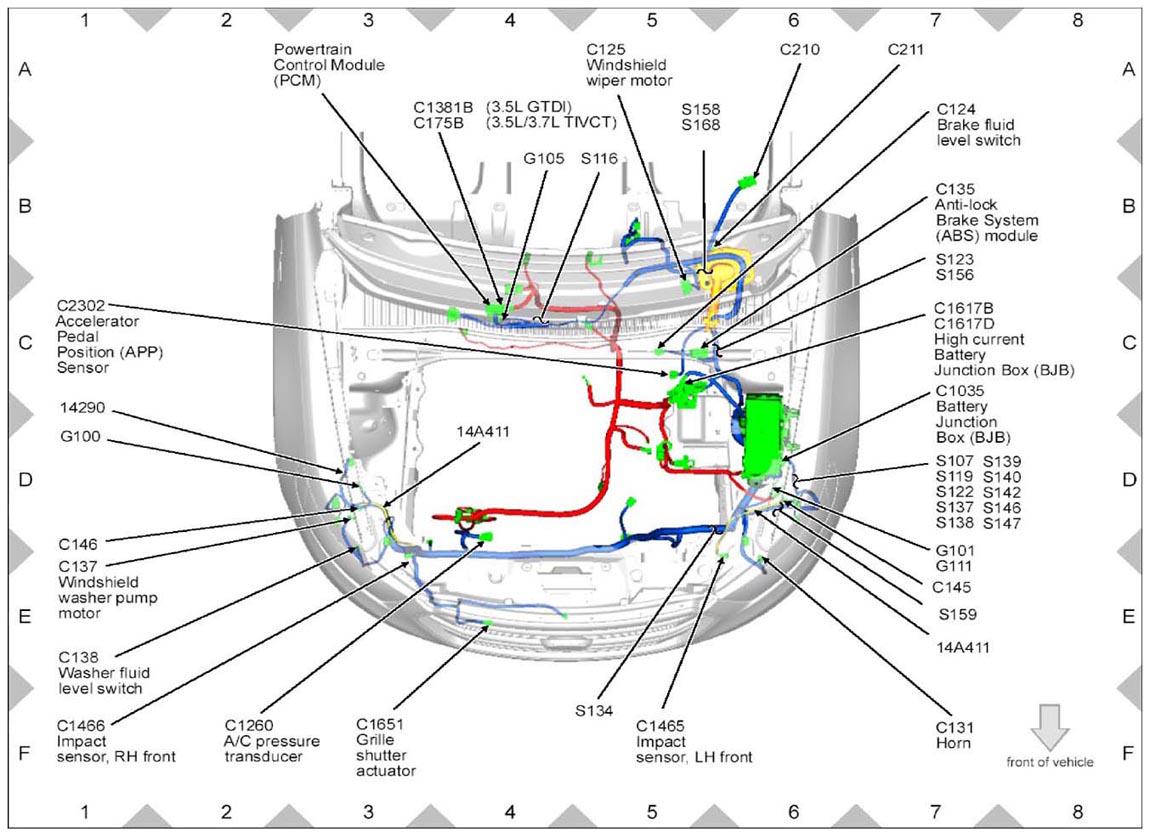

Fig 1: Engine Compartment Wiring Harness Connectors Location (1 Of 6)

G09301856

Courtesy of FORD MOTOR CO.

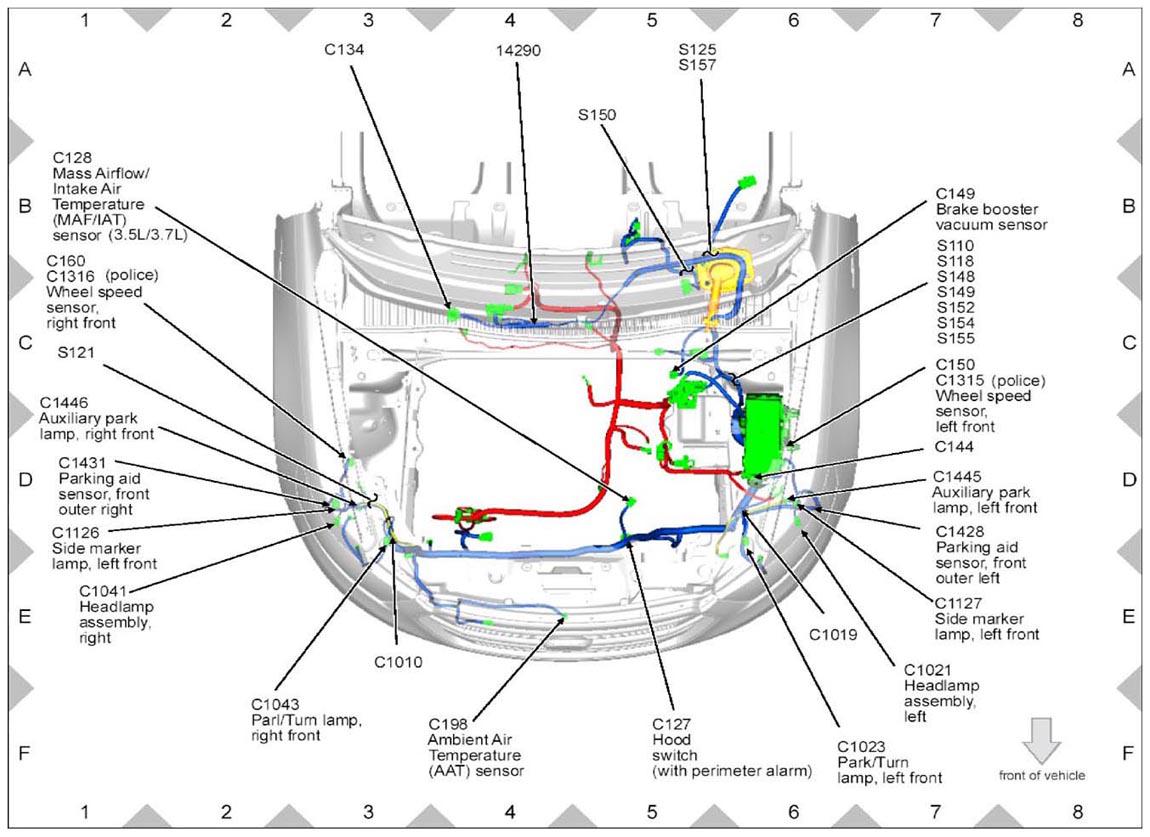

Fig 2: Engine Compartment Wiring Harness Connectors Location (2 Of 6)

G09301857

Courtesy of FORD MOTOR CO.

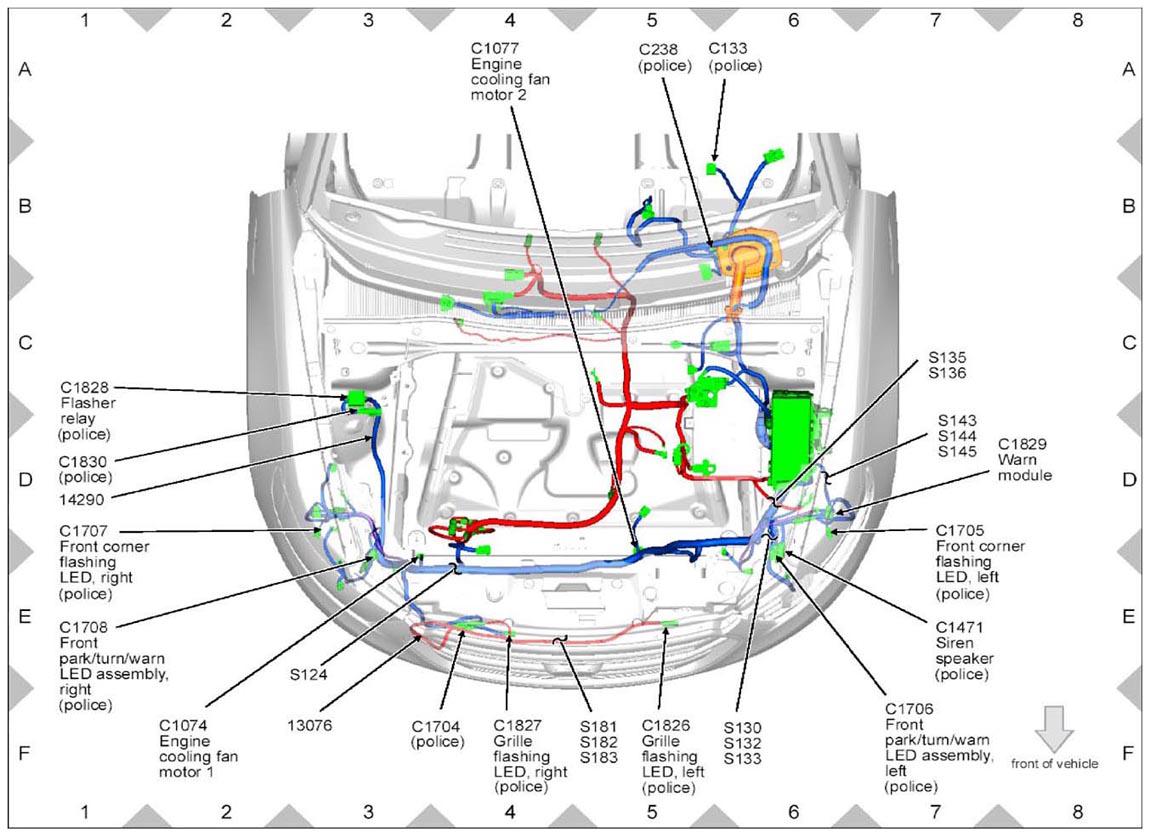

Fig 3: Engine Compartment Wiring Harness Connectors Location (3 Of 6)

G09301858

Courtesy of FORD MOTOR CO.

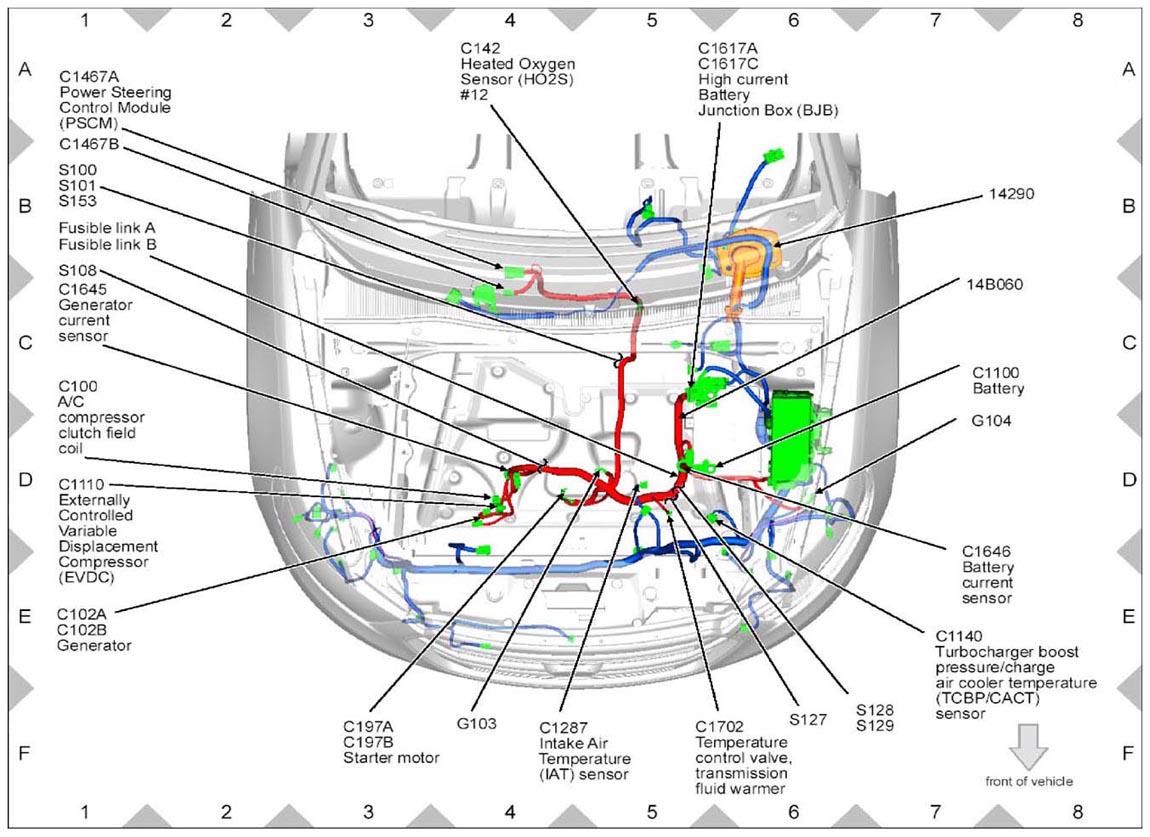

Fig 4: Engine Compartment Wiring Harness Connectors Location (4 Of 6)

G09301859

Courtesy of FORD MOTOR CO.

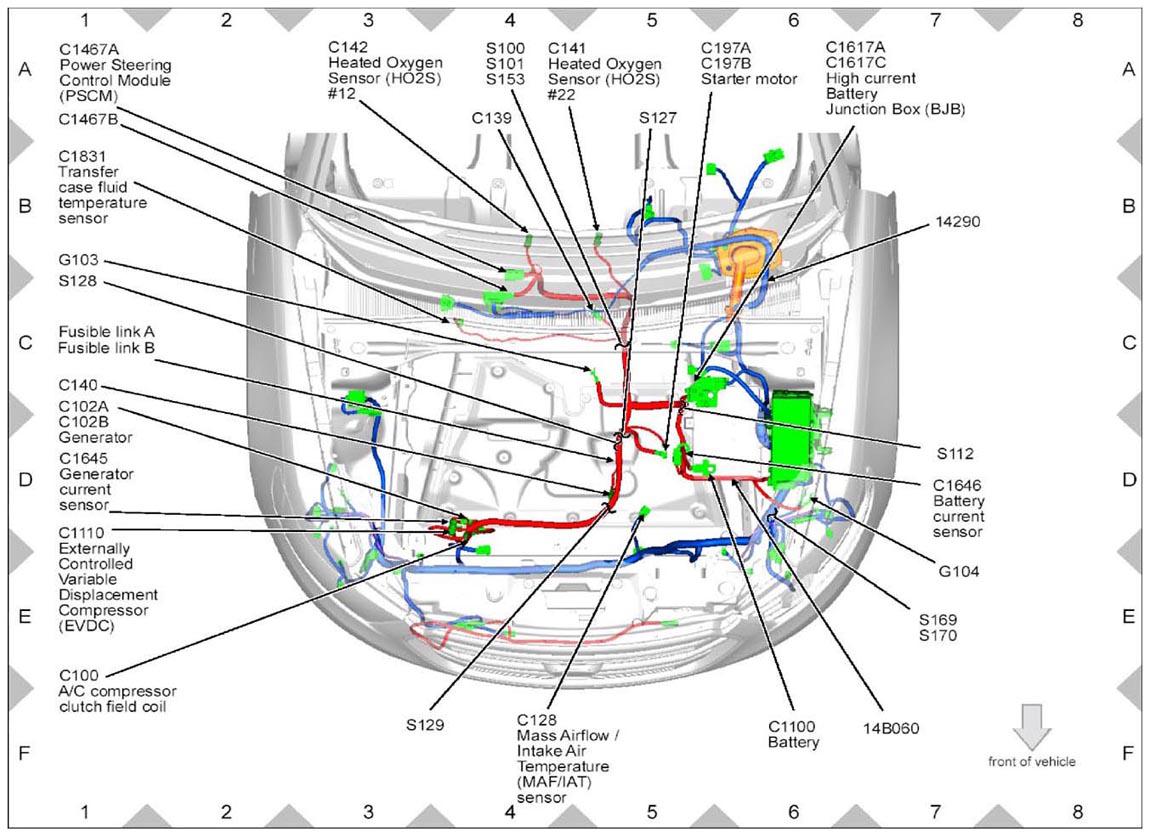

Fig 5: Engine Compartment Wiring Harness Connectors Location (5 Of 6)

G09301860

Courtesy of FORD MOTOR CO.

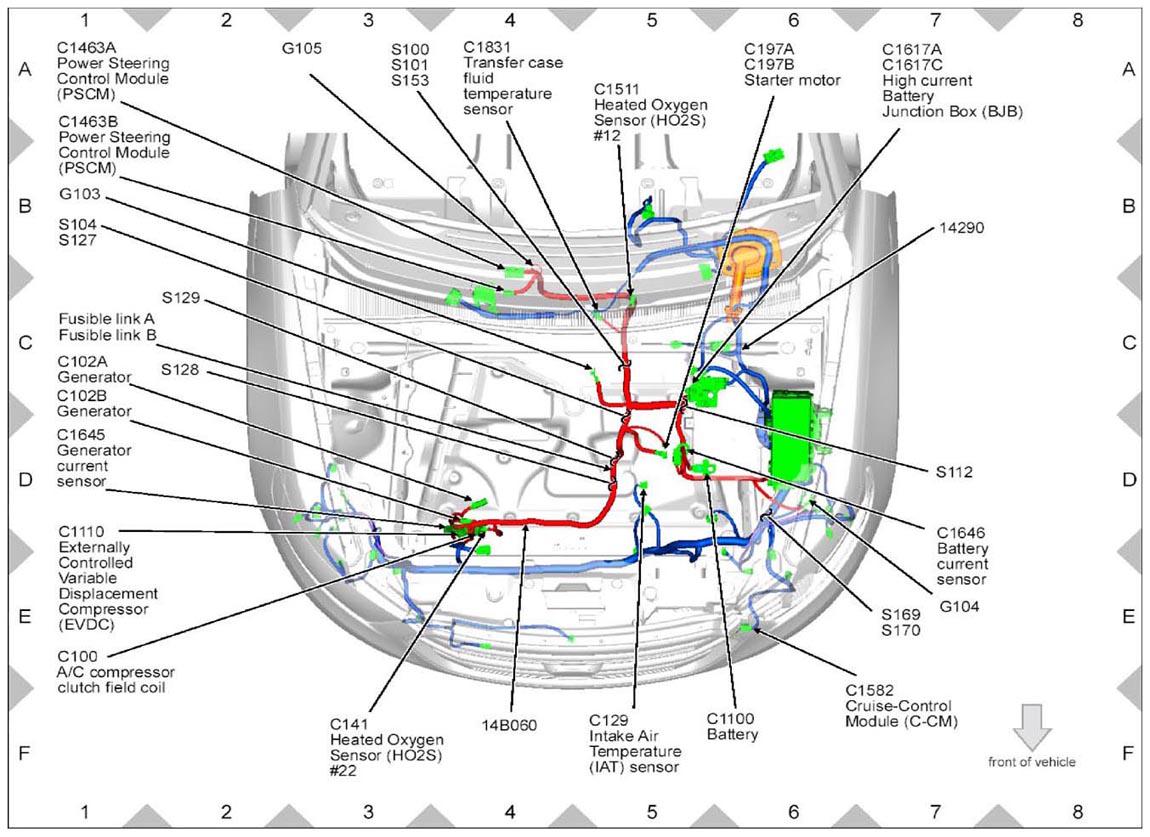

Fig 6: Engine Compartment Wiring Harness Connectors Location (6 Of 6)

G09301861

Courtesy of FORD MOTOR CO.

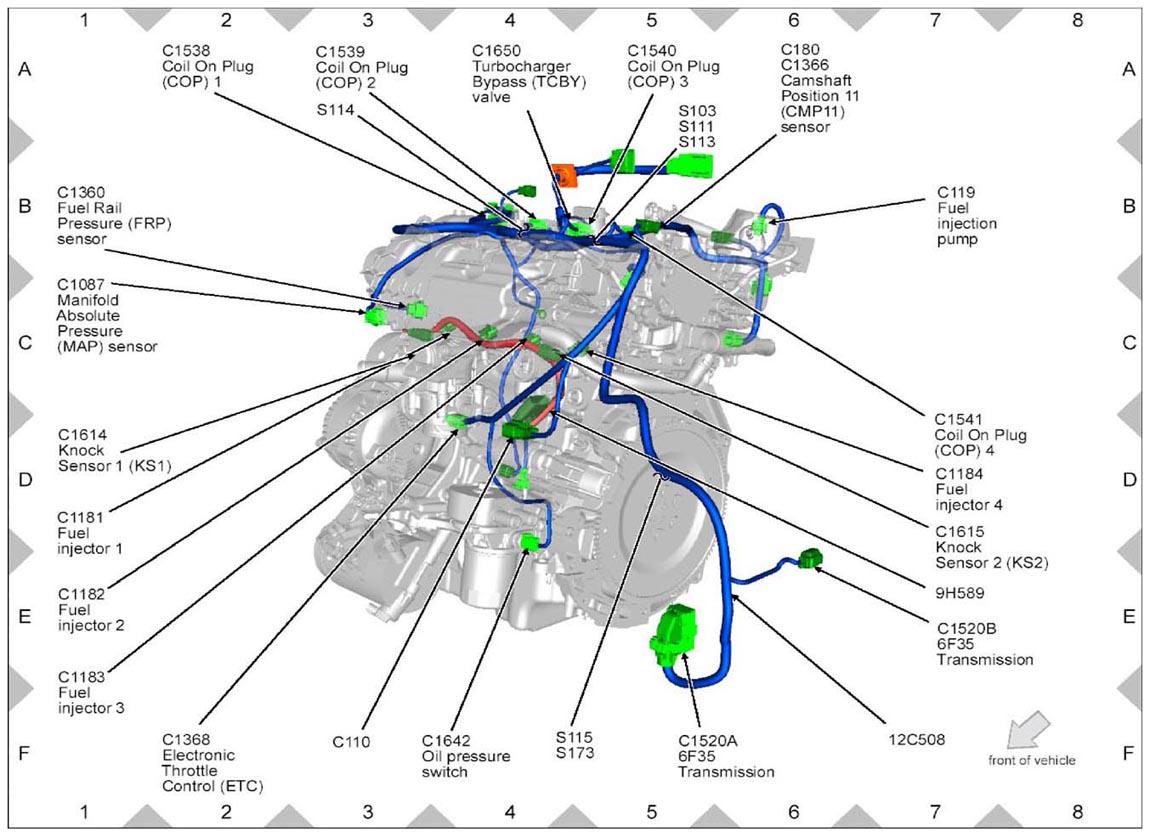

Fig 7: Engine Wiring Harness Connectors Location (1 Of 6)

G09301862

Courtesy of FORD MOTOR CO.

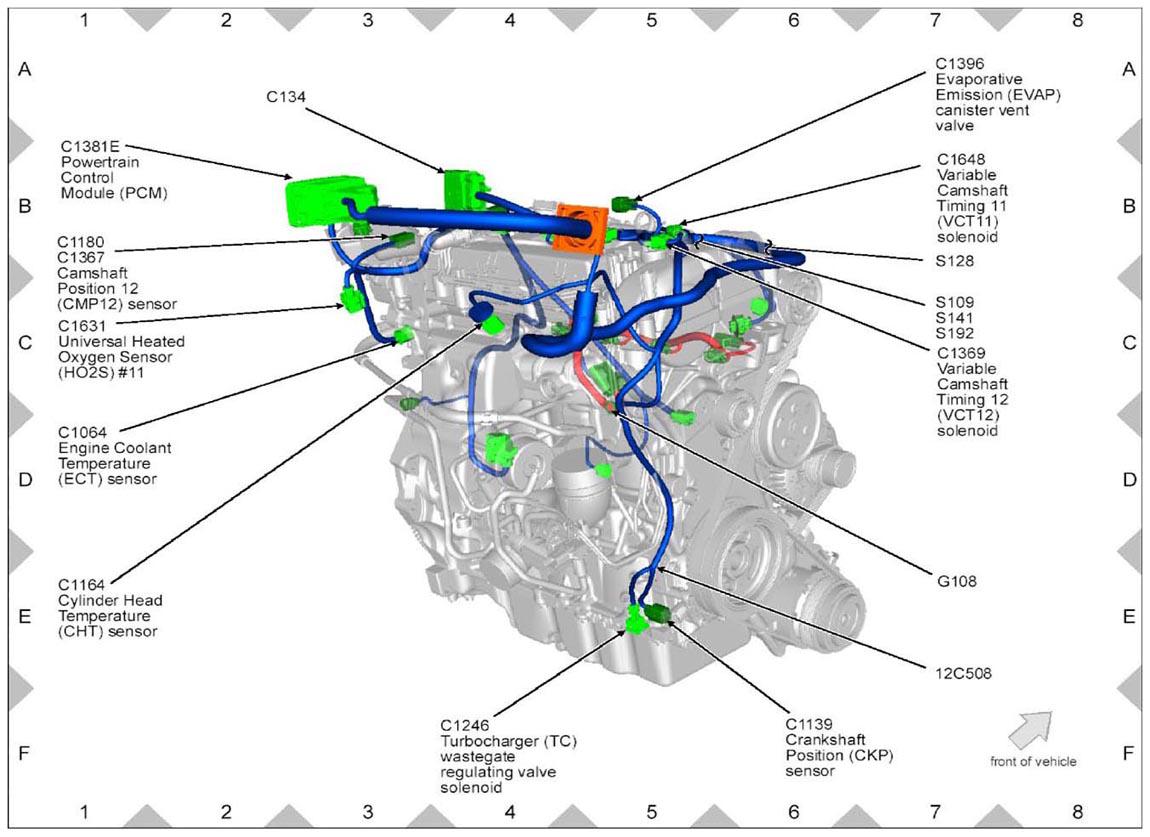

Fig 8: Engine Wiring Harness Connectors Location (2 Of 6)

G09301863

Courtesy of FORD MOTOR CO.

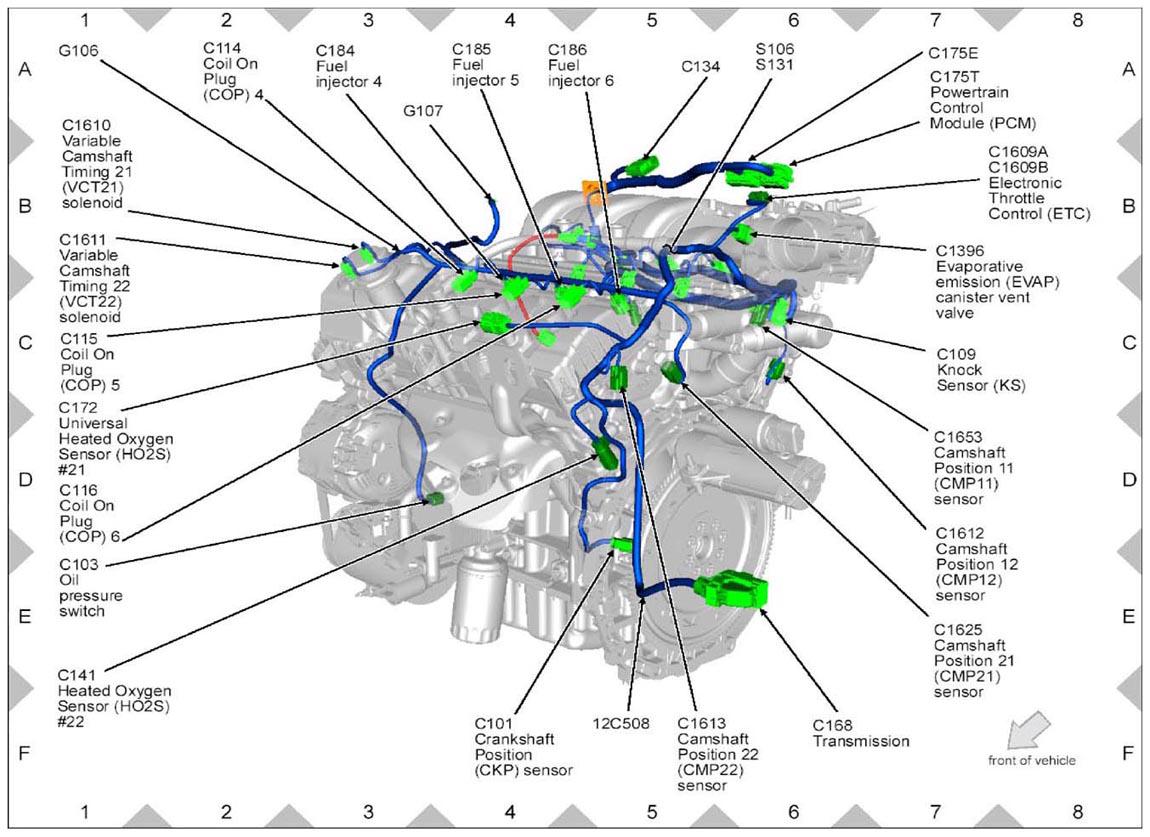

Fig 9: Engine Wiring Harness Connectors Location (3 Of 6)

G09301864

Courtesy of FORD MOTOR CO.

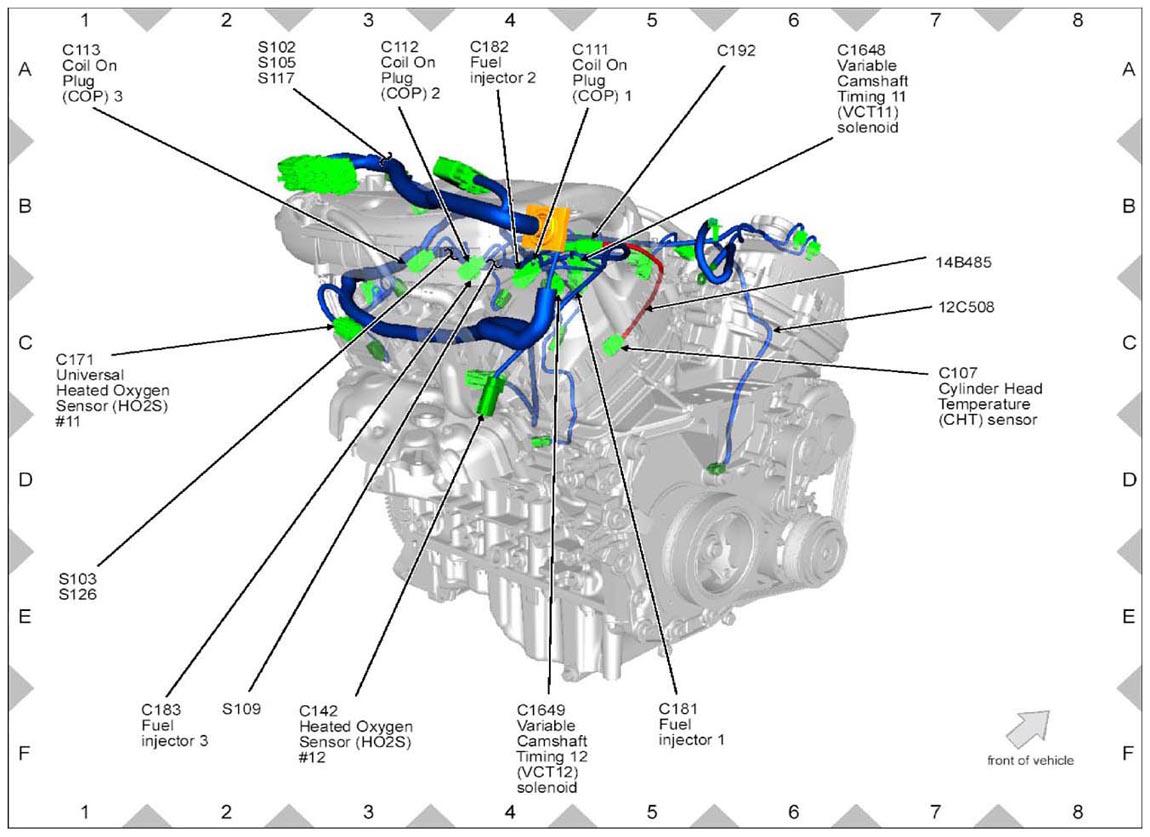

Fig 10: Engine Wiring Harness Connectors Location (4 Of 6)

G09301865

Courtesy of FORD MOTOR CO.

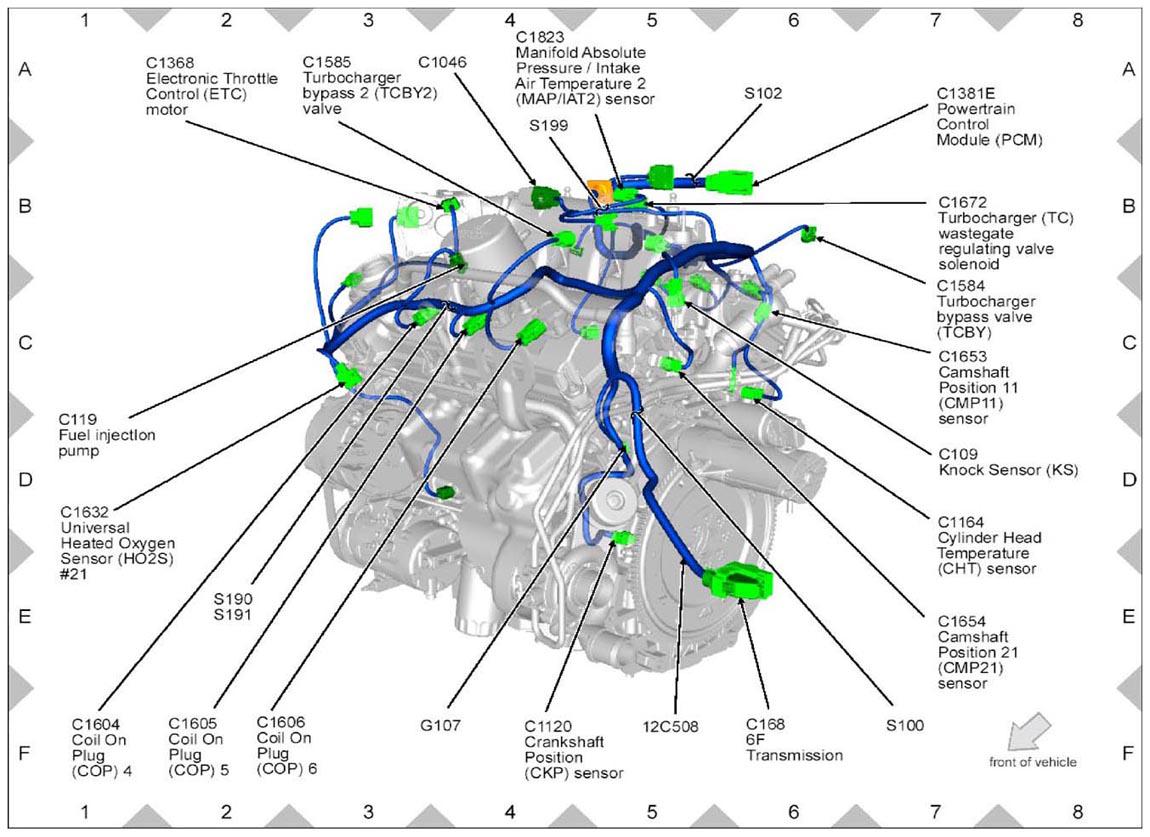

Fig 11: Engine Wiring Harness Connectors Location (5 Of 6)

G09301866

Courtesy of FORD MOTOR CO.

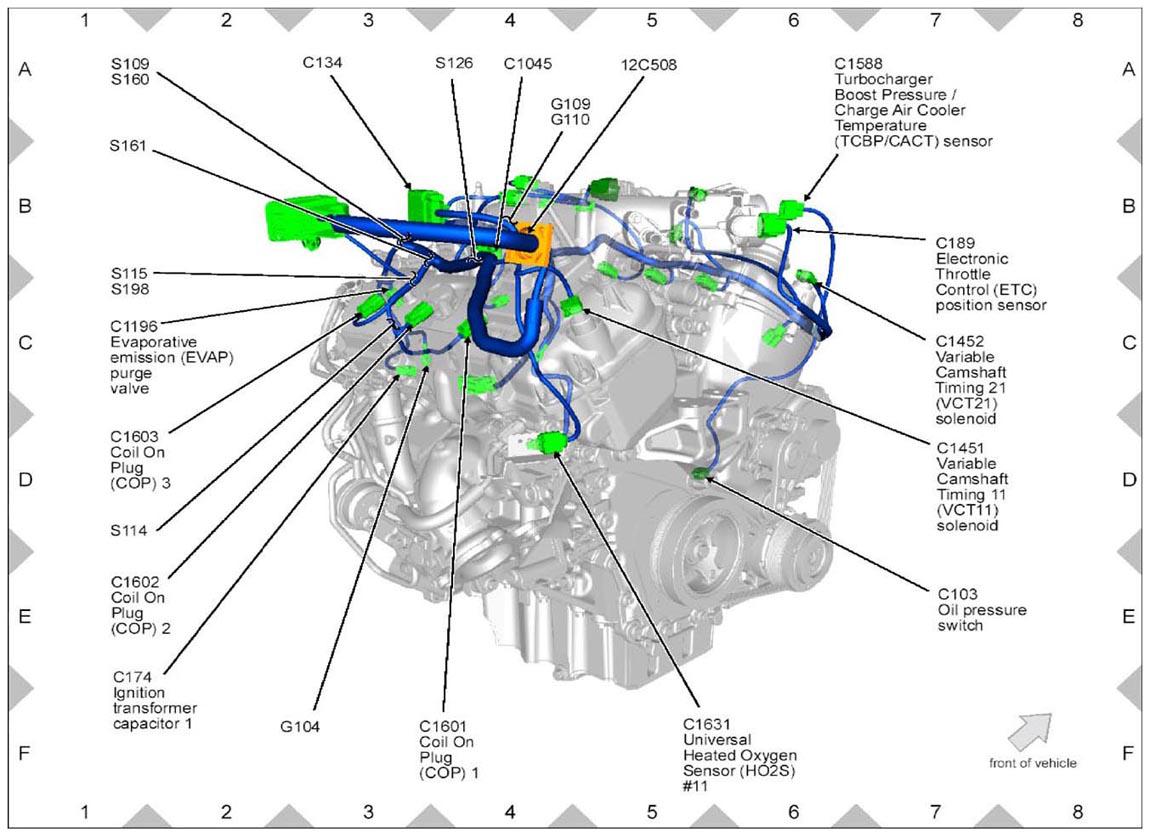

Fig 12: Engine Wiring Harness Connectors Location (6 Of 6)

G09301867

Courtesy of FORD MOTOR CO.

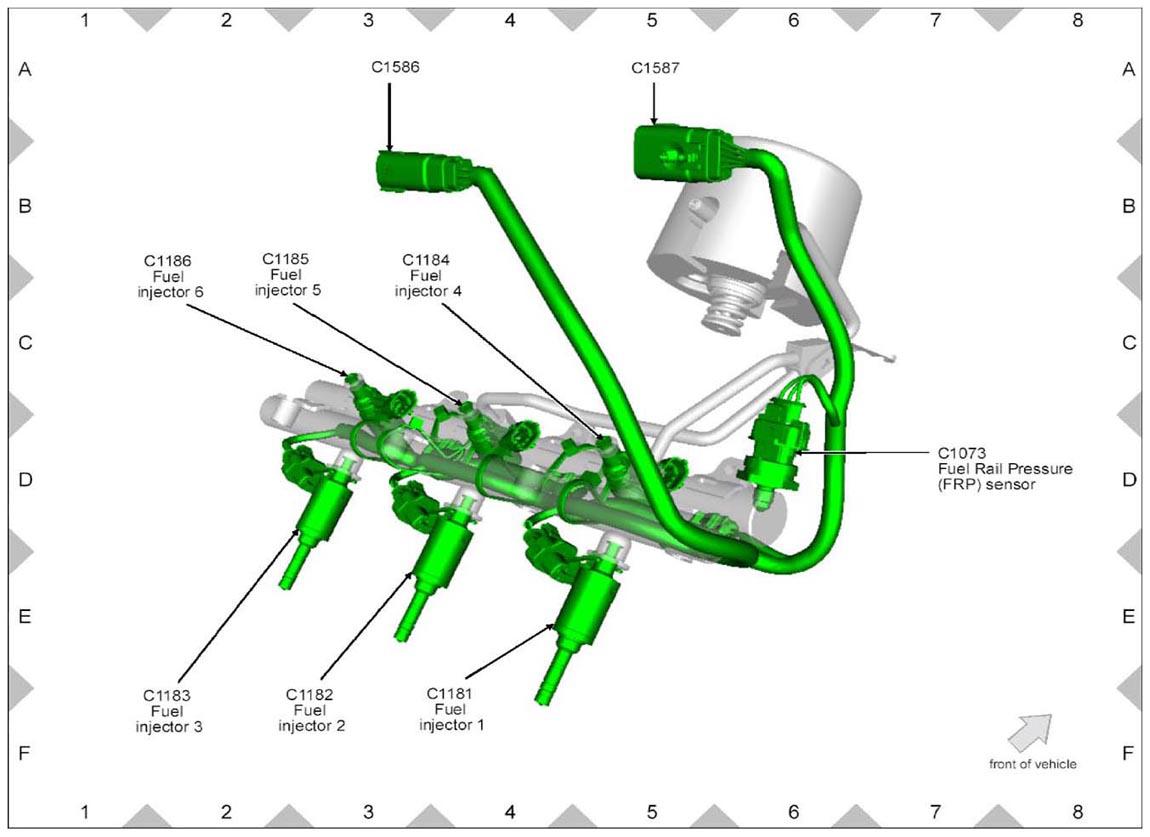

Fig 13: Fuel Injector Wiring Harness Connectors Location

G09301868

Courtesy of FORD MOTOR CO.

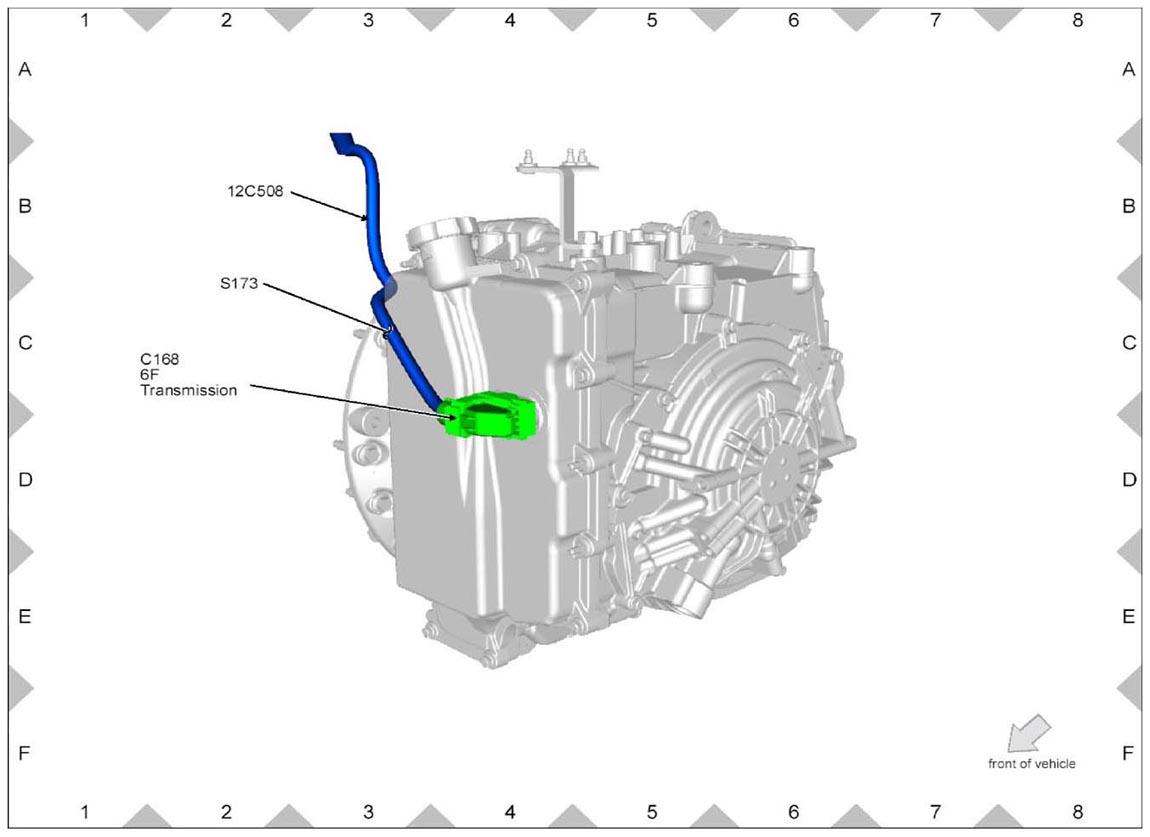

Fig 14: Transmission Wiring Harness Connectors Location (1 Of 2)

G09301869

Courtesy of FORD MOTOR CO.

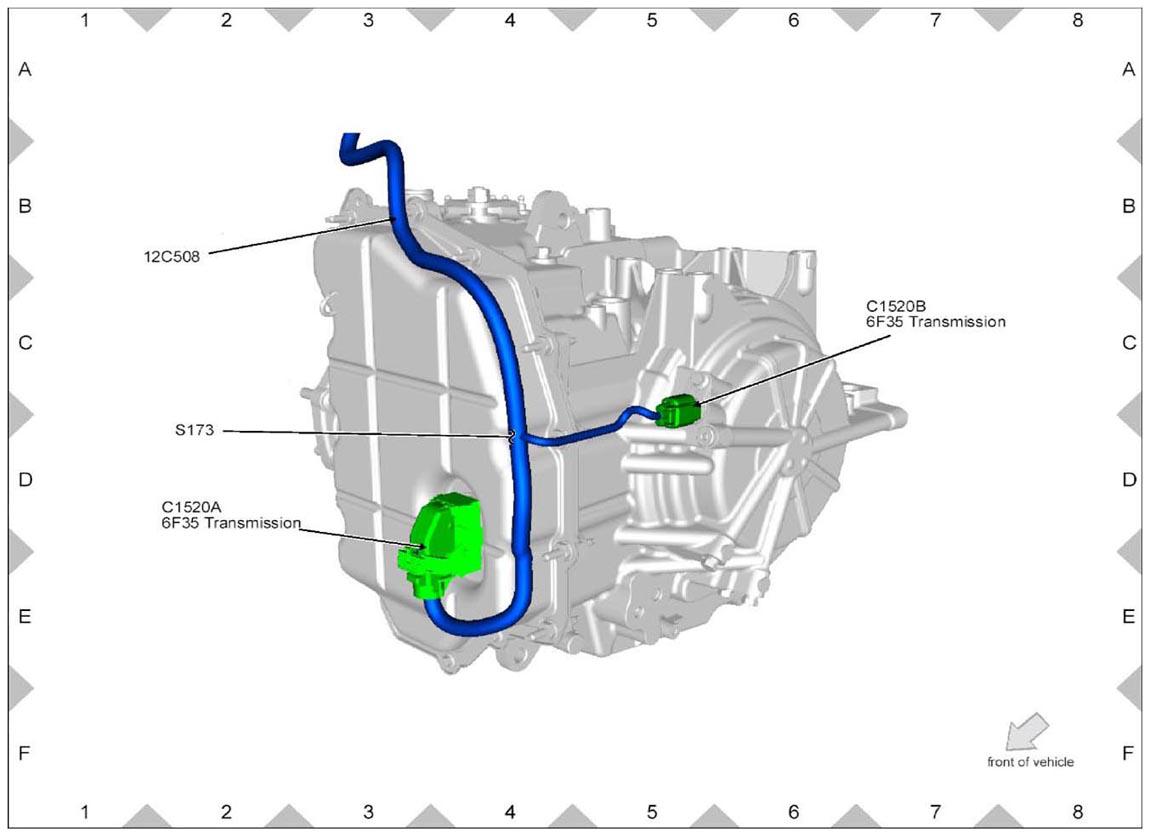

Fig 15: Transmission Wiring Harness Connectors Location (2 Of 2)

G09301870

Courtesy of FORD MOTOR CO.

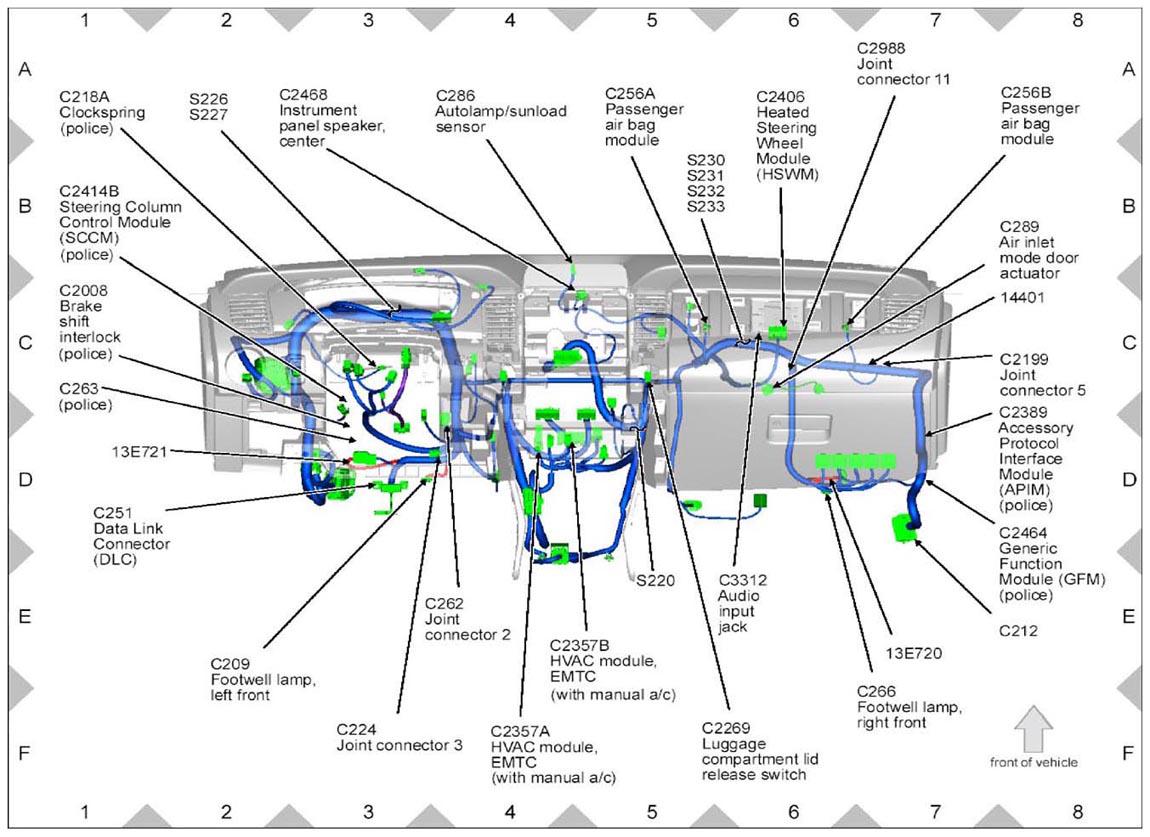

Fig 16: Dashboard Wiring Harness Connectors Location (1 Of 4)

G09301871

Courtesy of FORD MOTOR CO.

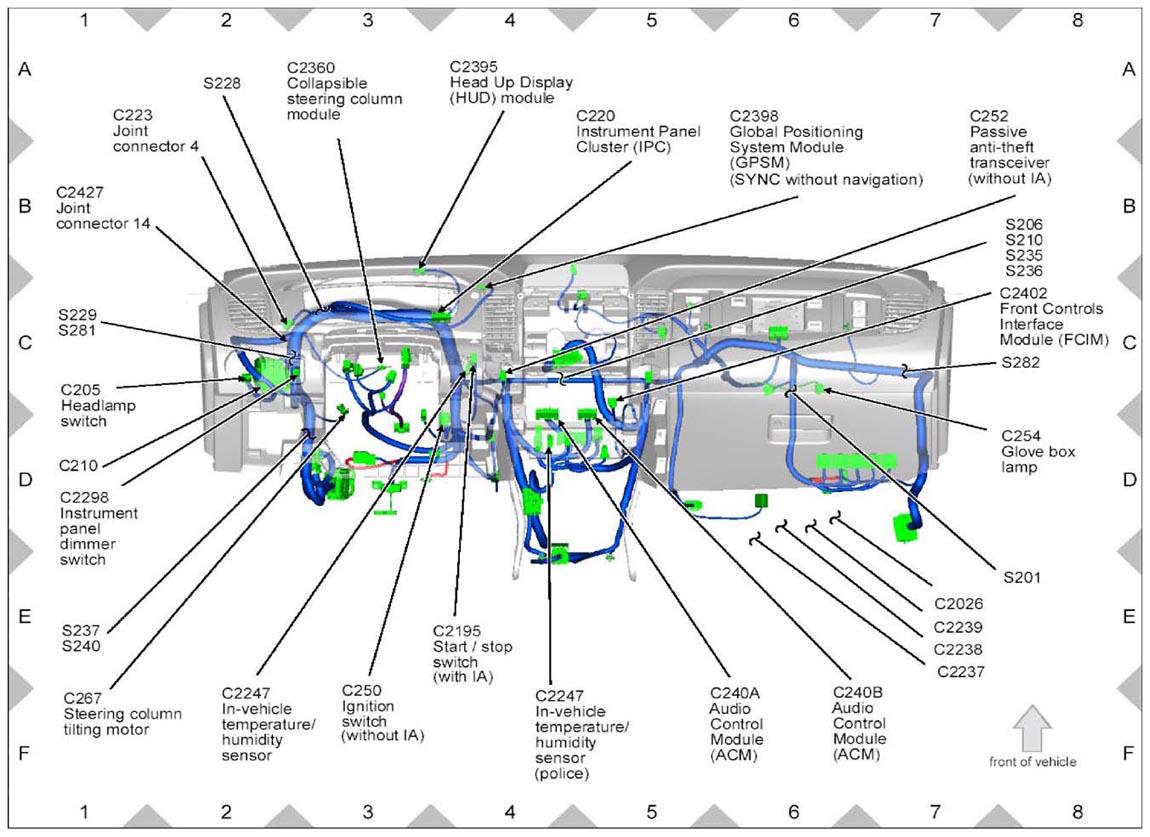

Fig 17: Dashboard Wiring Harness Connectors Location (2 Of 4)

G09301872

Courtesy of FORD MOTOR CO.

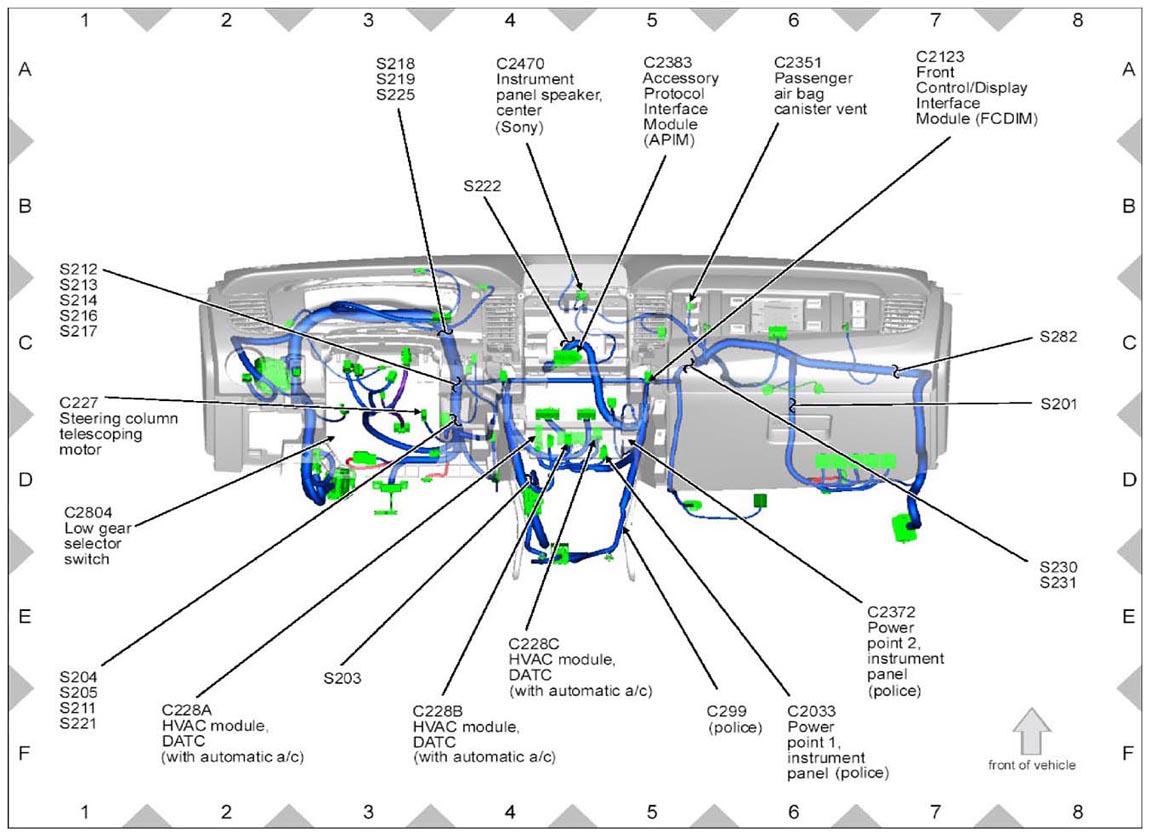

Fig 18: Dashboard Wiring Harness Connectors Location (3 Of 4)

G09301873

Courtesy of FORD MOTOR CO.

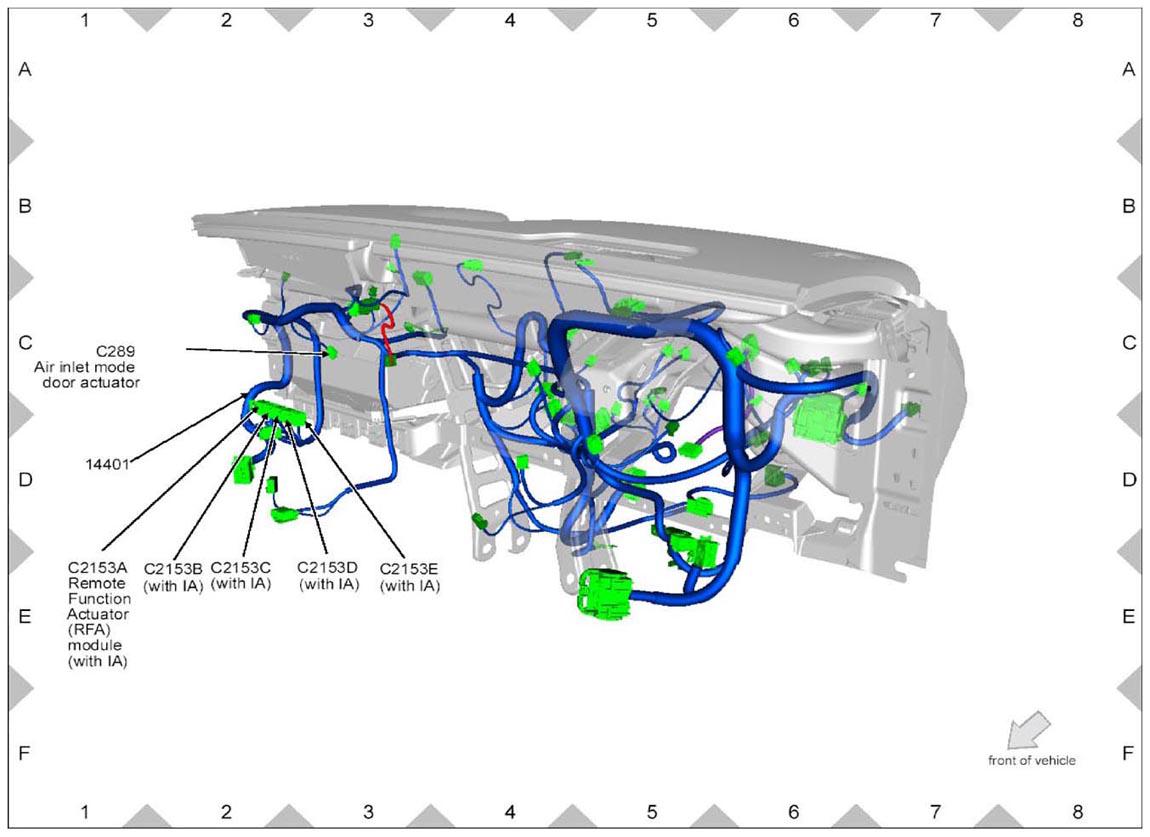

Fig 19: Dashboard Wiring Harness Connectors Location (4 Of 4)

G09301874

Courtesy of FORD MOTOR CO.

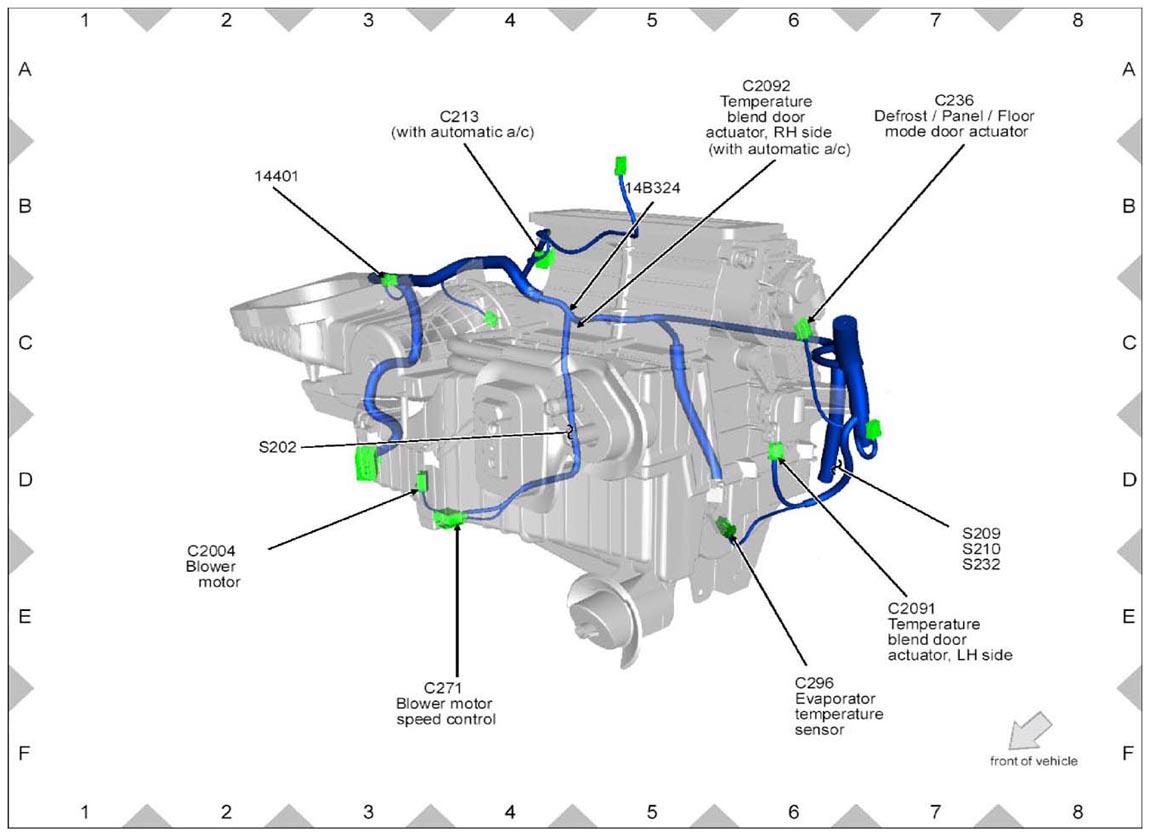

Fig 20: HVAC Wiring Harness Connectors Location

G09301875

Courtesy of FORD MOTOR CO.

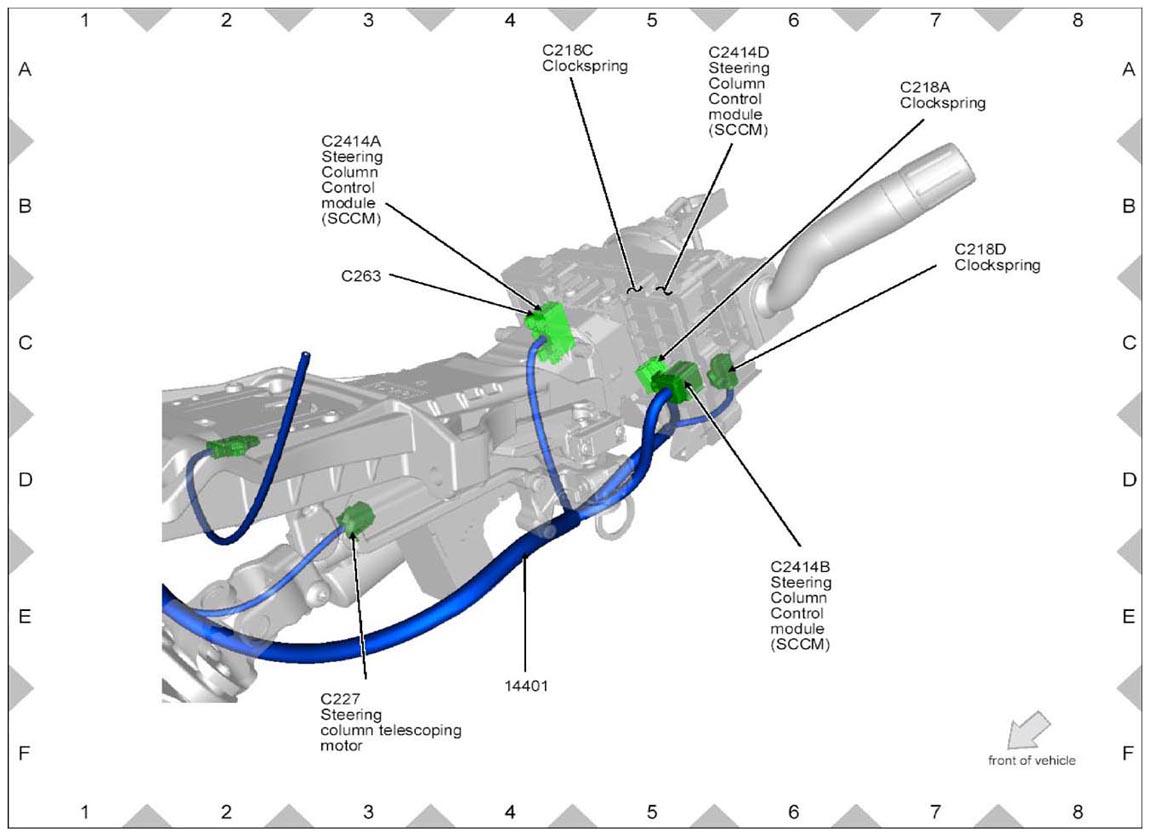

Fig 21: Steering Column Control Module Wiring Harness Connectors Location

G09301876

Courtesy of FORD MOTOR CO.

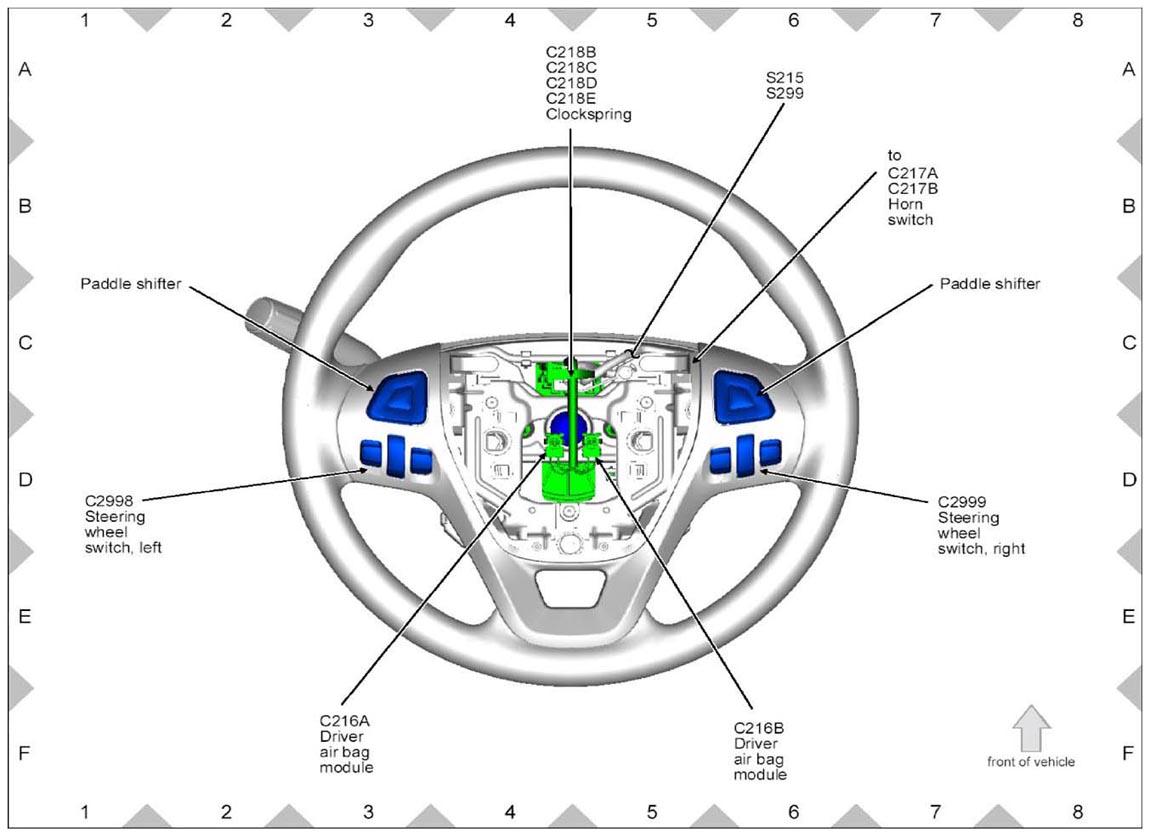

Fig 22: Steering Wheel Wiring Harness Connectors Location

G09301877

Courtesy of FORD MOTOR CO.

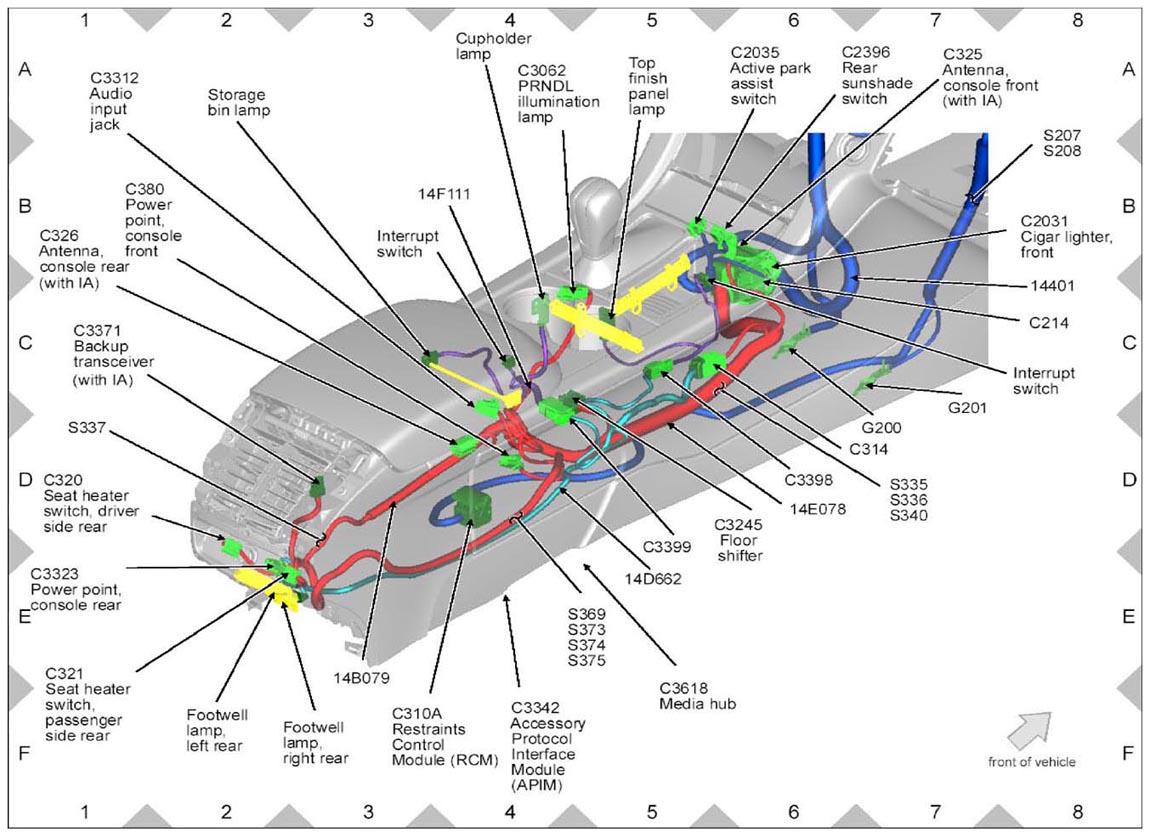

Fig 23: Center Console Wiring Harness Connectors Location

G09301878

Courtesy of FORD MOTOR CO.

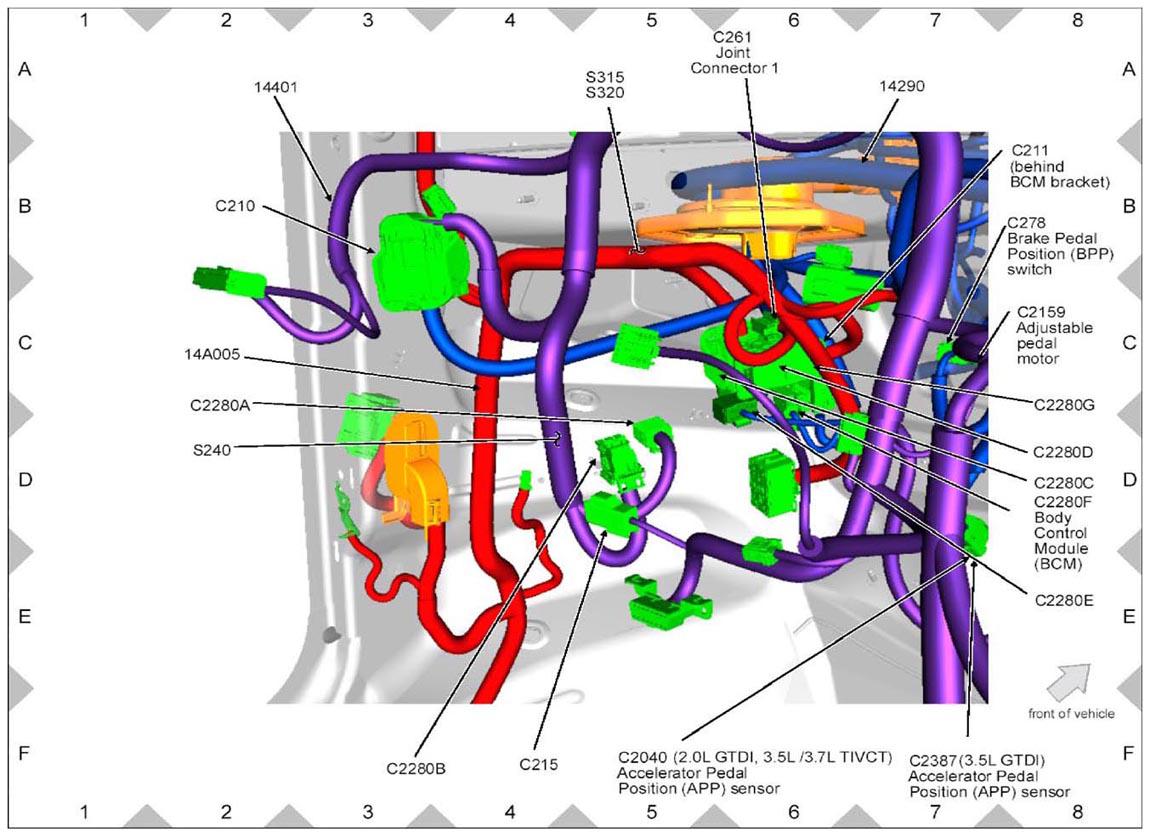

Fig 24: Adjustable Pedal Motor Wiring Harness Connectors Location

G09301879

Courtesy of FORD MOTOR CO.

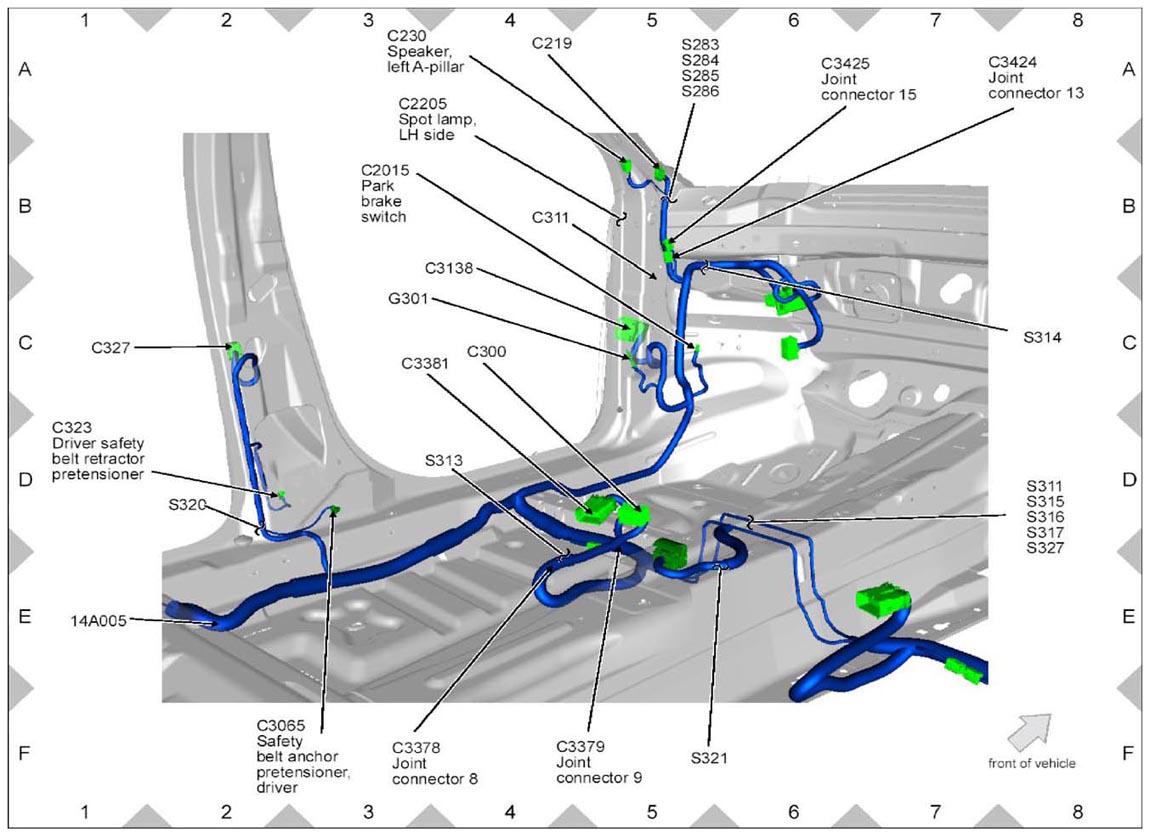

Fig 25: Front Compartment LH Wiring Harness Connectors Location

G09301880

Courtesy of FORD MOTOR CO.

Fig 26: Front Compartment RH Wiring Harness Connectors Location

G09301881

Courtesy of FORD MOTOR CO.

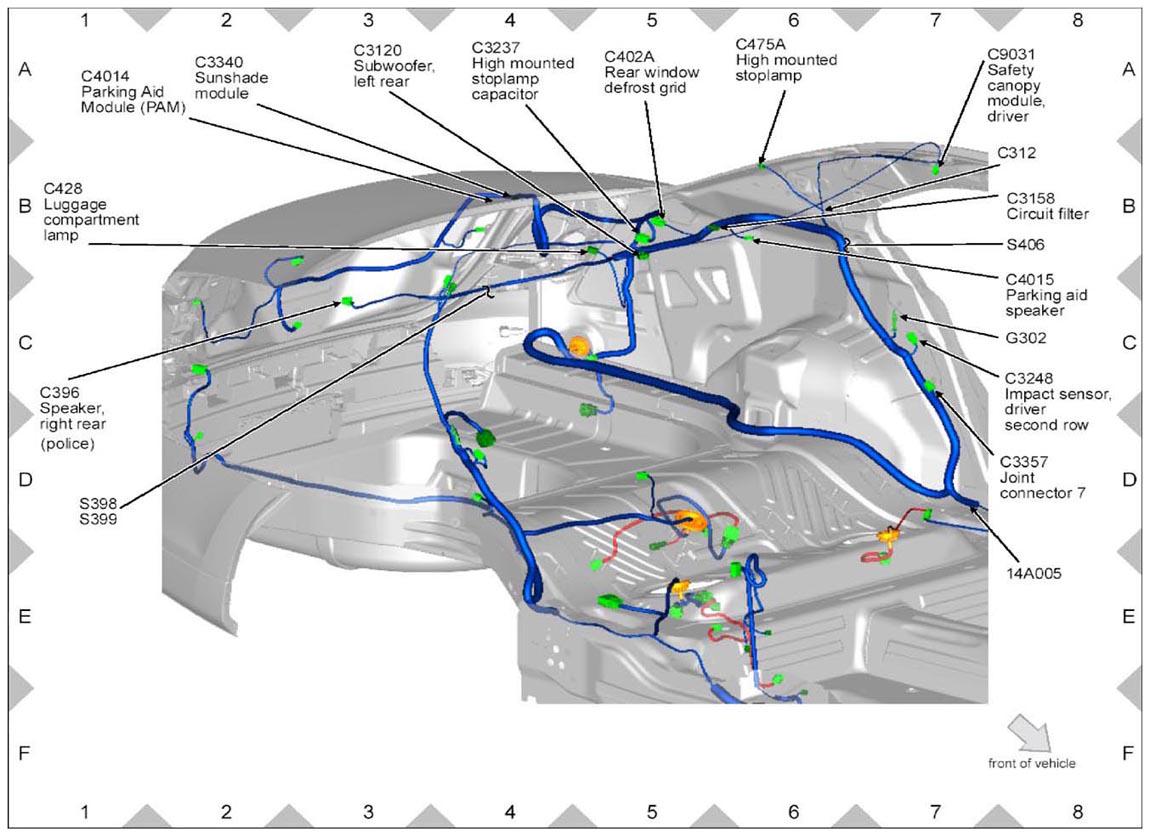

Fig 27: Rear Compartment LH Wiring Harness Connectors Location

G09301882

Courtesy of FORD MOTOR CO.

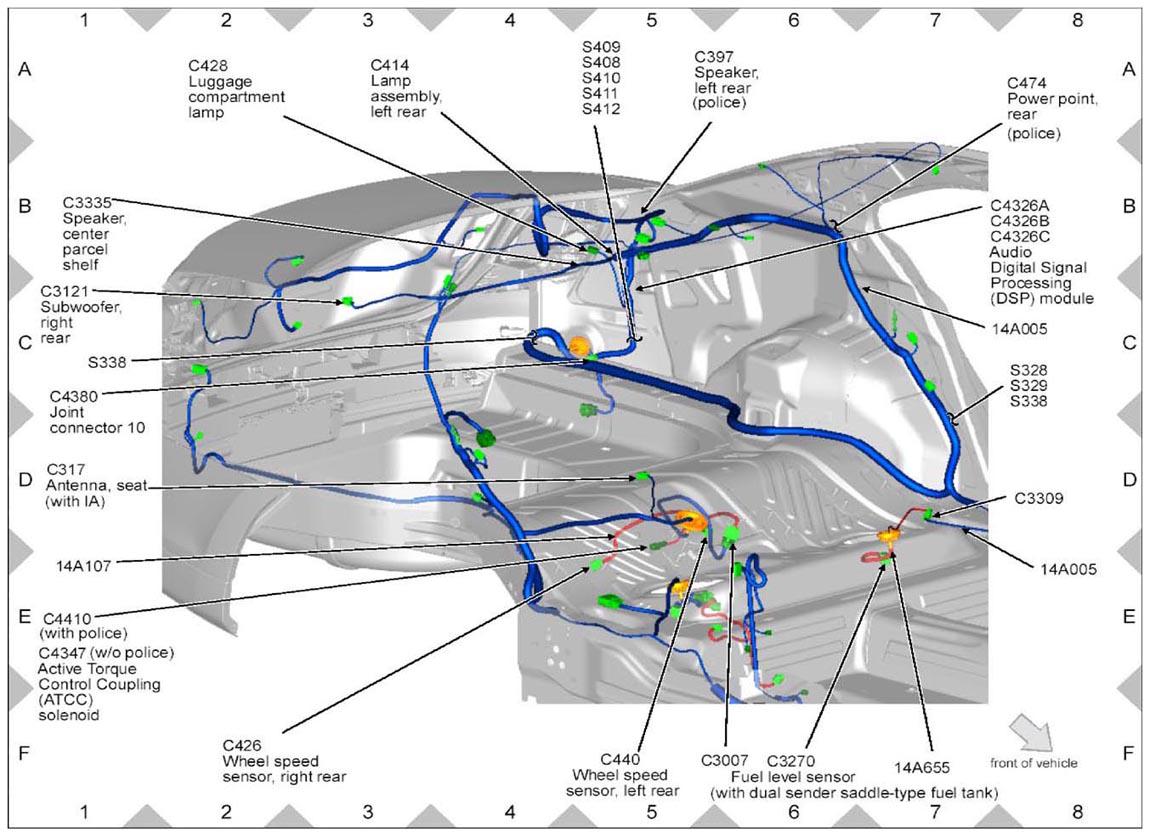

Fig 28: Rear Compartment Wiring Harness Connectors Location

G09301883

Courtesy of FORD MOTOR CO.

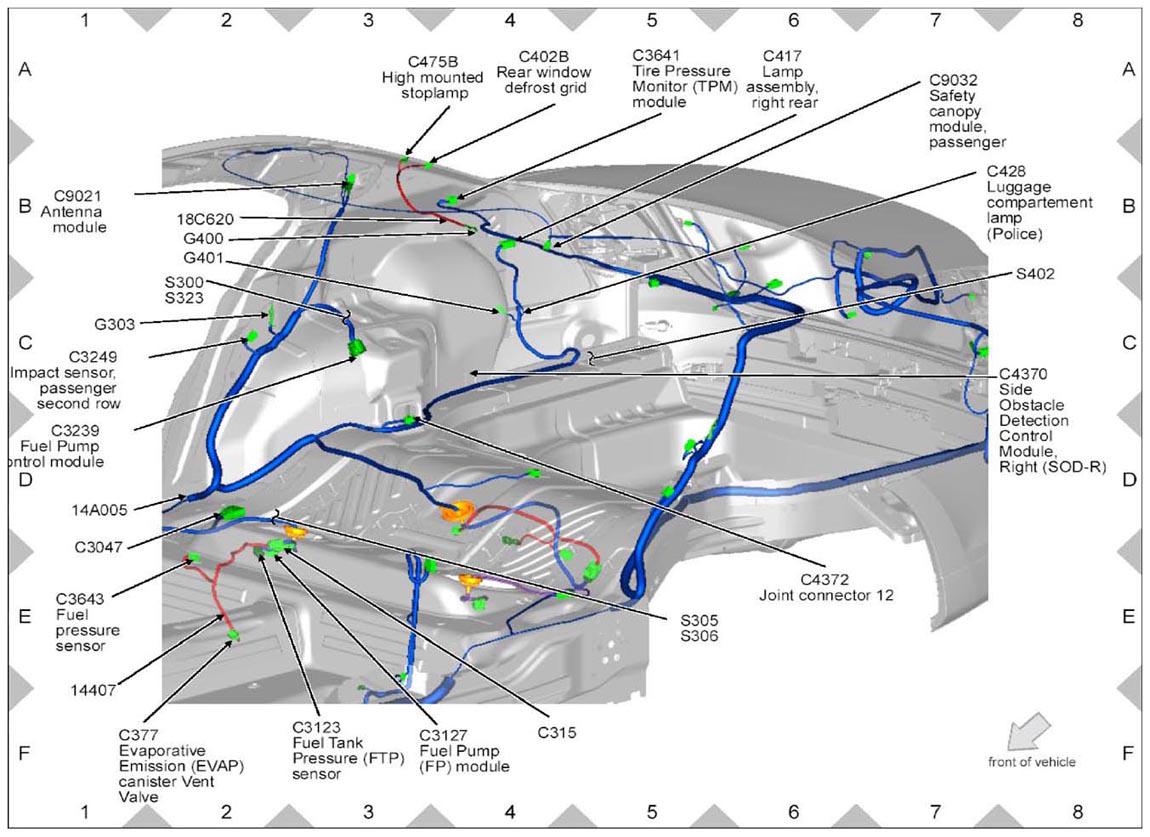

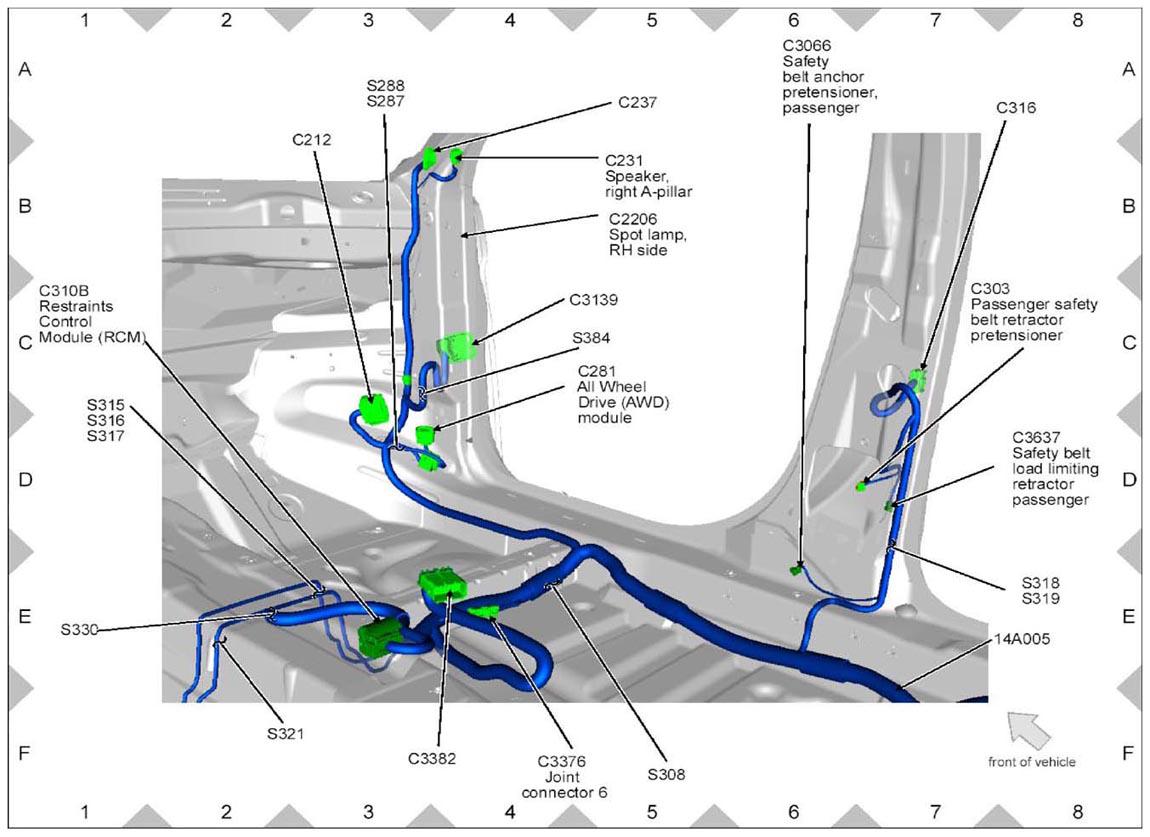

Fig 29: Rear Compartment RH Wiring Harness Connectors Location

G09301884

Courtesy of FORD MOTOR CO.

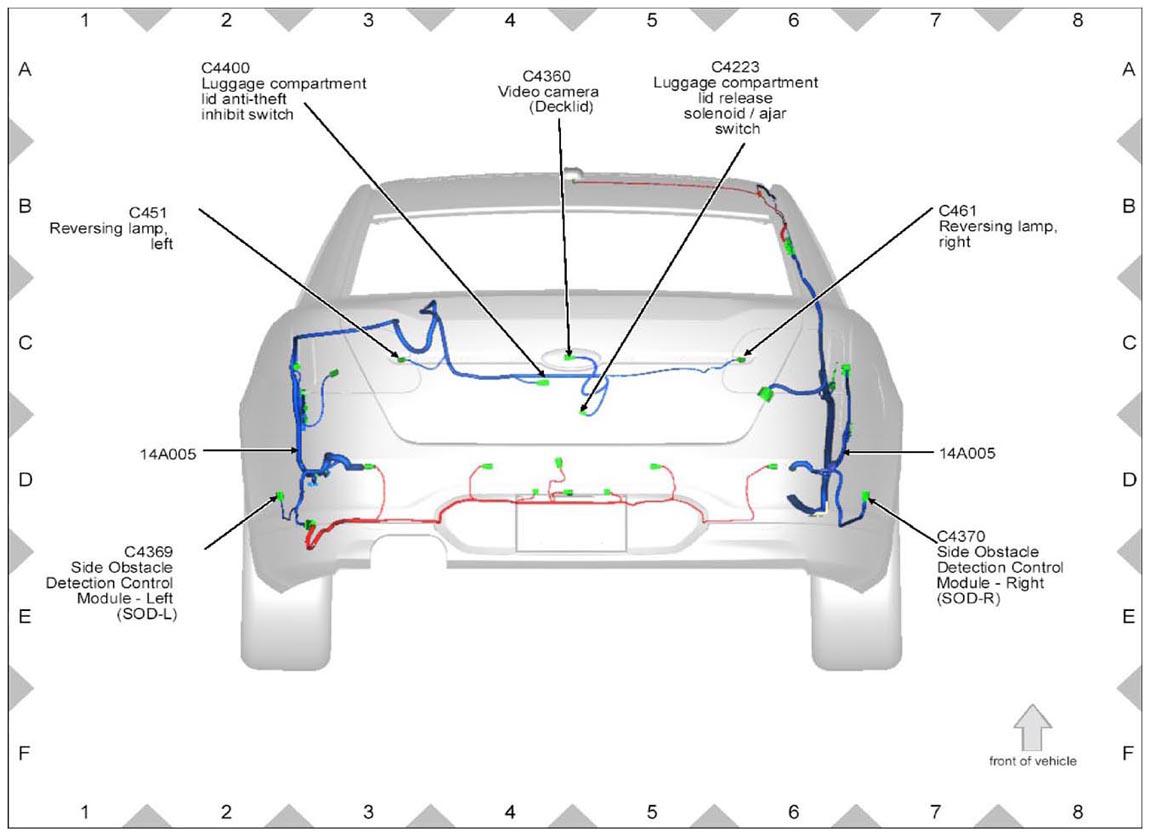

Fig 30: Rear End Wiring Harness Connectors Location (1 Of 3)

G09301885

Courtesy of FORD MOTOR CO.

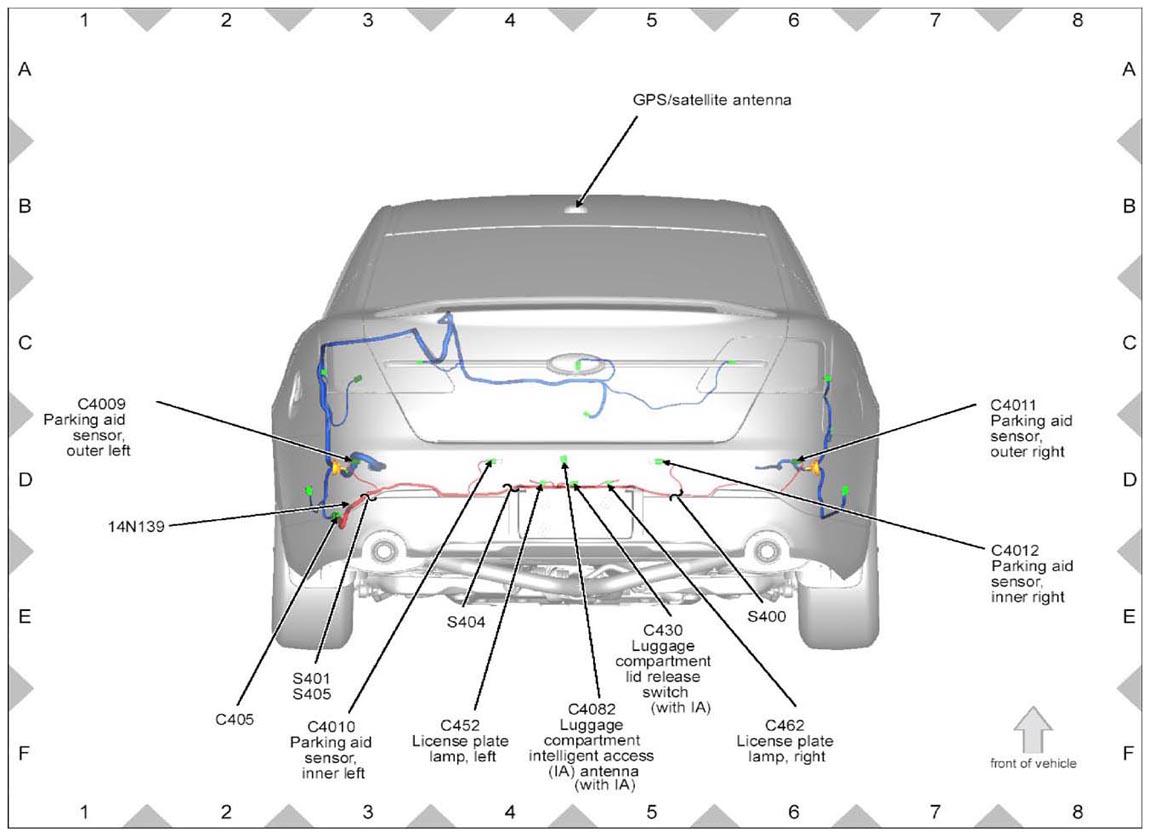

Fig 31: Rear End Wiring Harness Connectors Location (2 Of 3)

G09301886

Courtesy of FORD MOTOR CO.

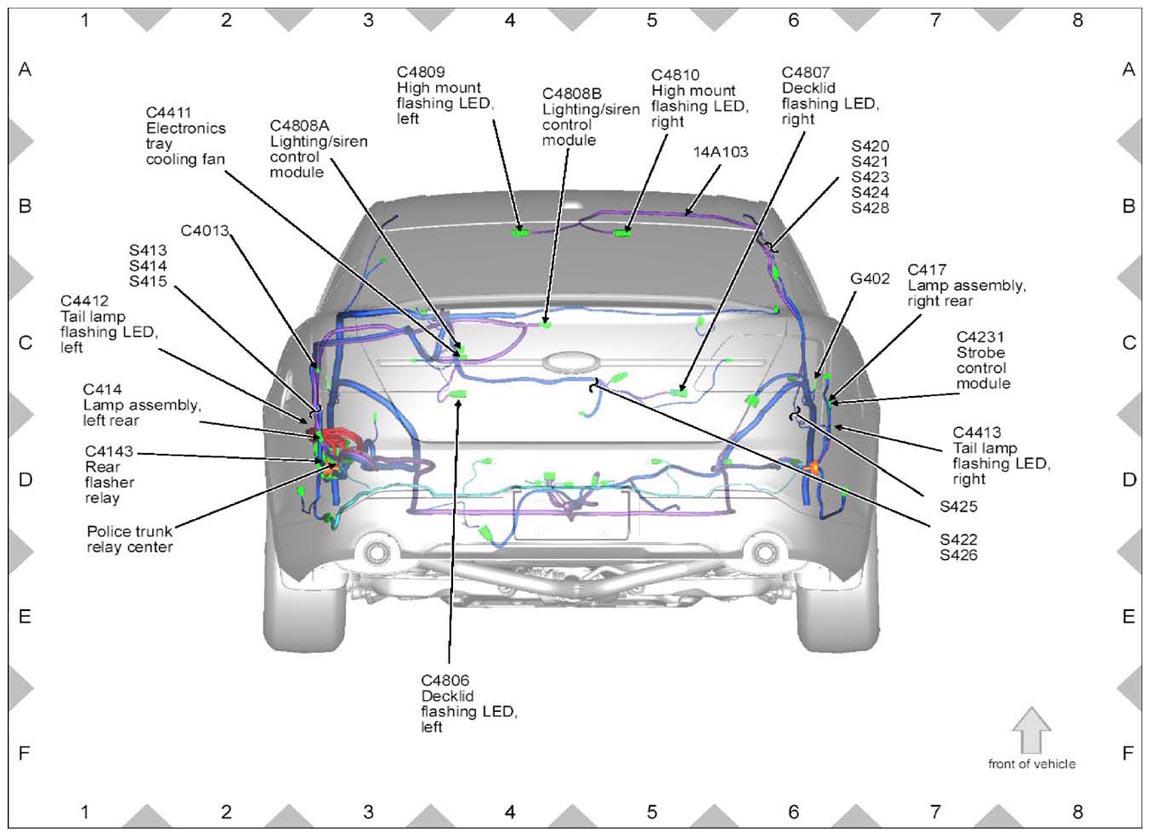

Fig 32: Rear End Wiring Harness Connectors Location (3 Of 3)

G09301887

Courtesy of FORD MOTOR CO.

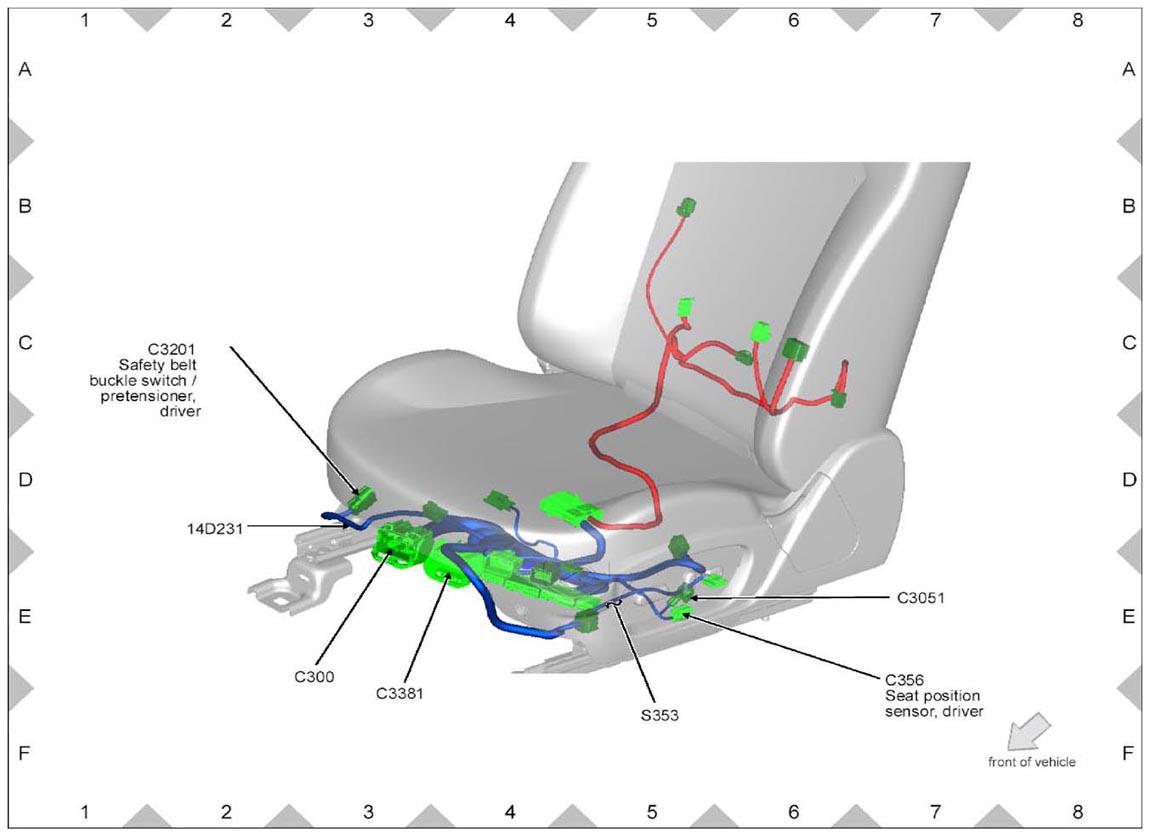

Fig 33: Driver Seat Wiring Harness Connectors Location (1 Of 2)

G09301888

Courtesy of FORD MOTOR CO.

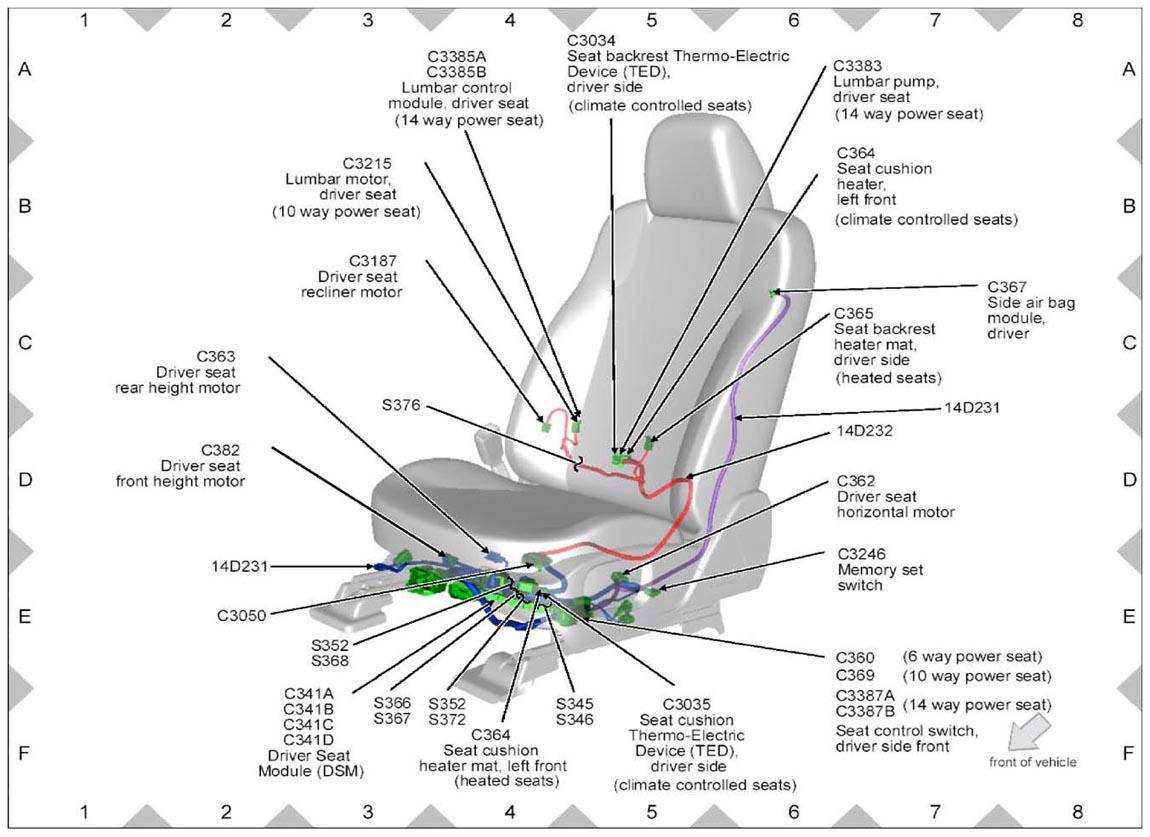

Fig 34: Driver Seat Wiring Harness Connectors Location (2 Of 2)

G09301889

Courtesy of FORD MOTOR CO.

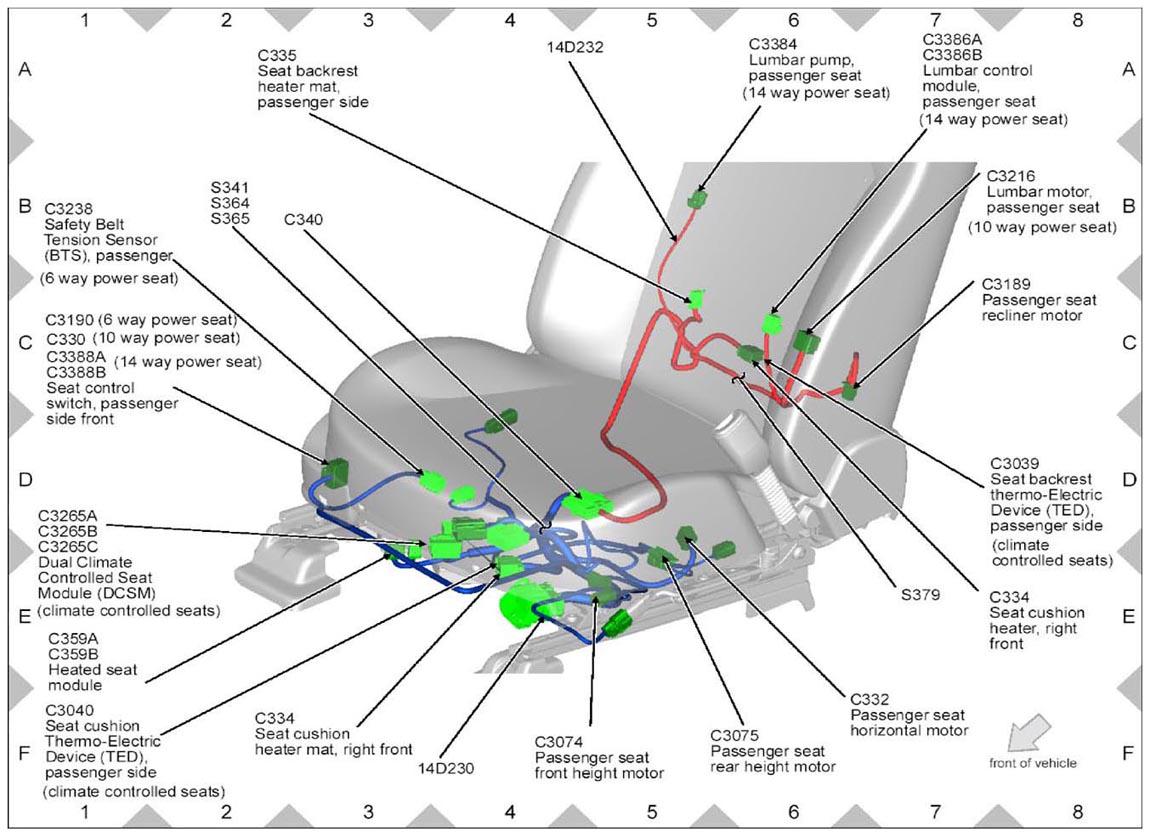

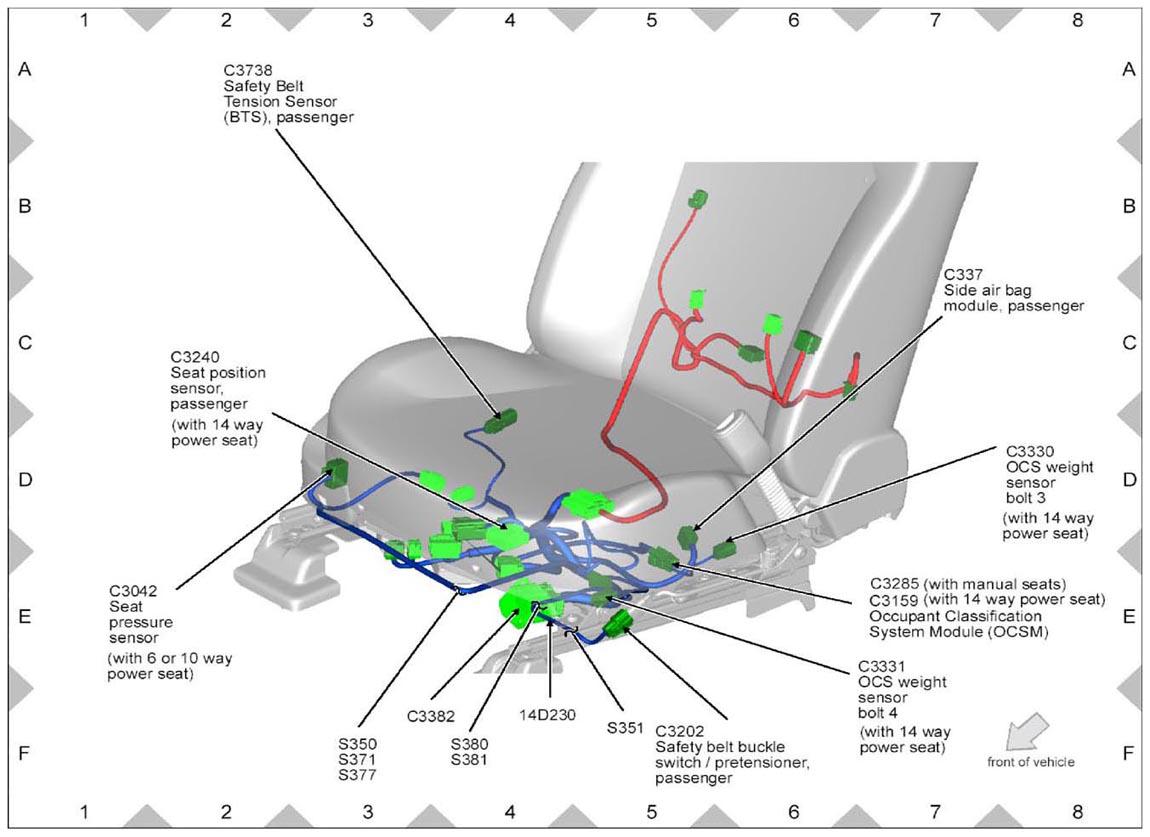

Fig 35: Passenger Seat Wiring Harness Connectors Location (1 Of 2)

G09301890

Courtesy of FORD MOTOR CO.

Fig 36: Passenger Seat Wiring Harness Connectors Location (2 Of 2)

G09301891

Courtesy of FORD MOTOR CO.

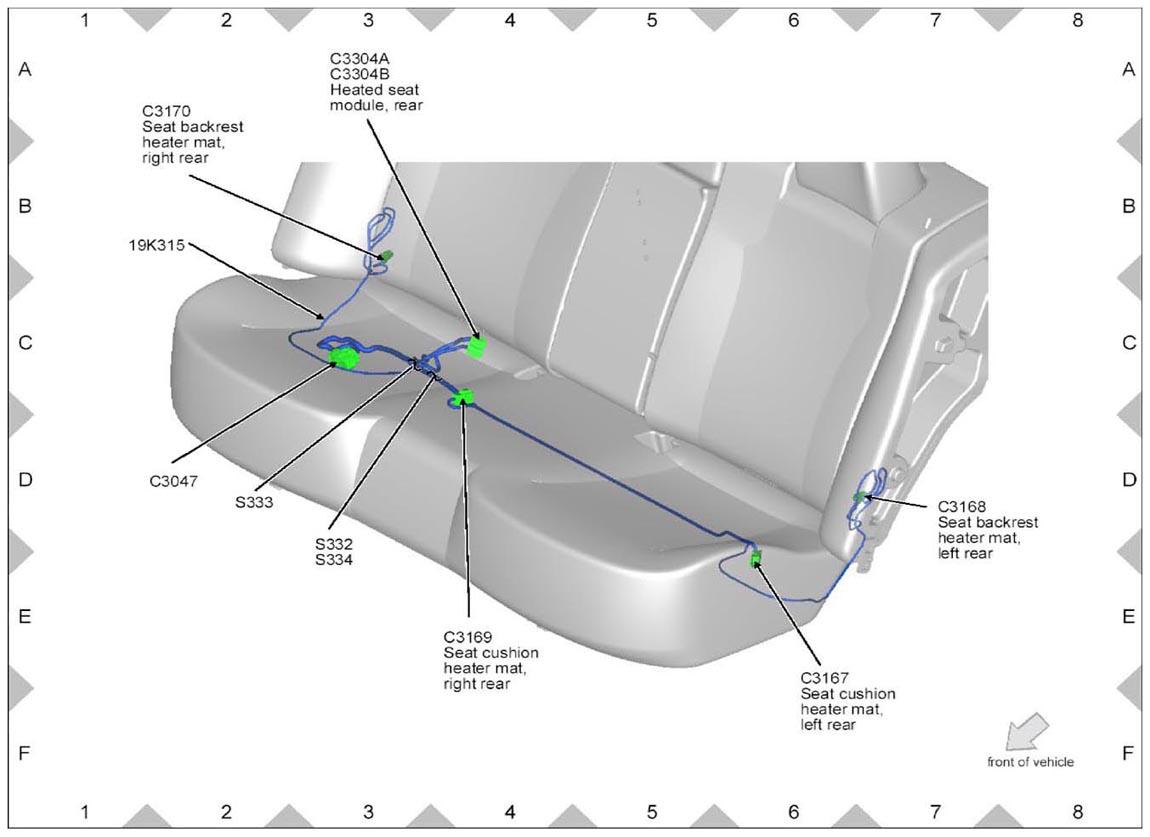

Fig 37: Rear Seat Wiring Harness Connectors Location

G09301892

Courtesy of FORD MOTOR CO.

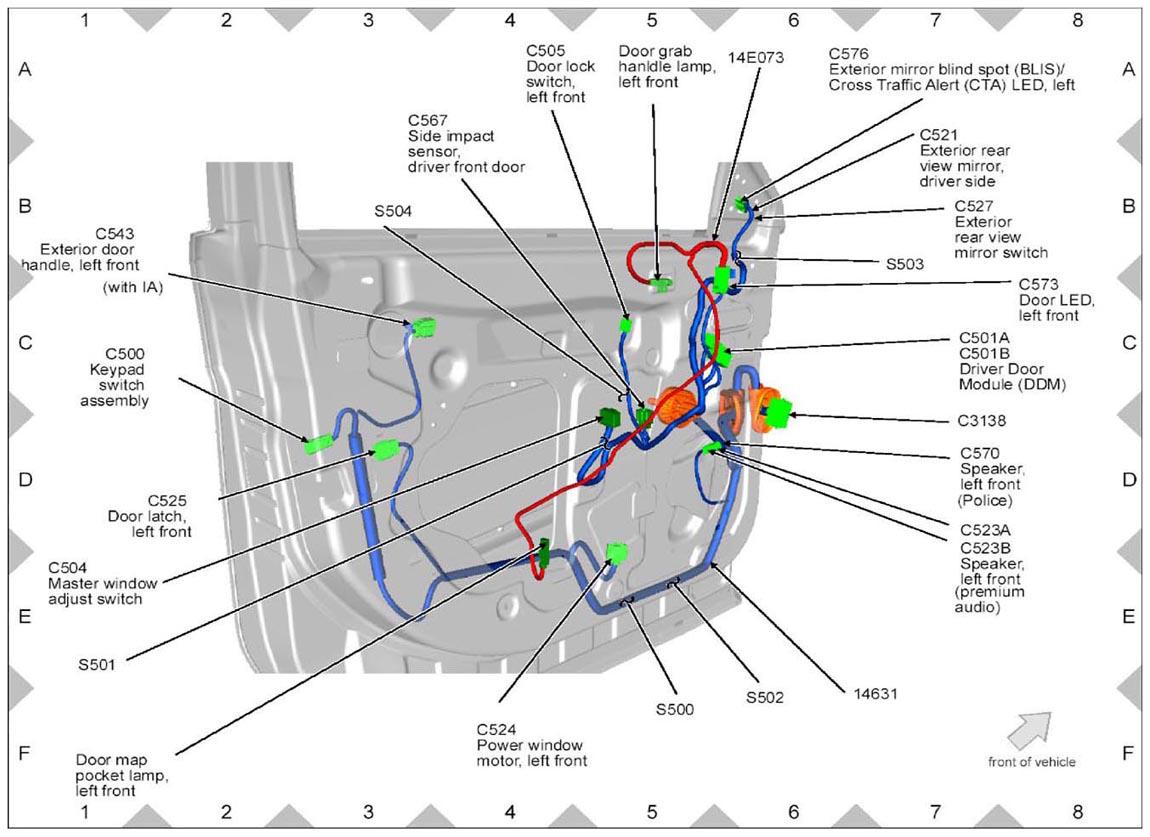

Fig 38: LH Front Door Wiring Harness Connectors Location

G09301893

Courtesy of FORD MOTOR CO.

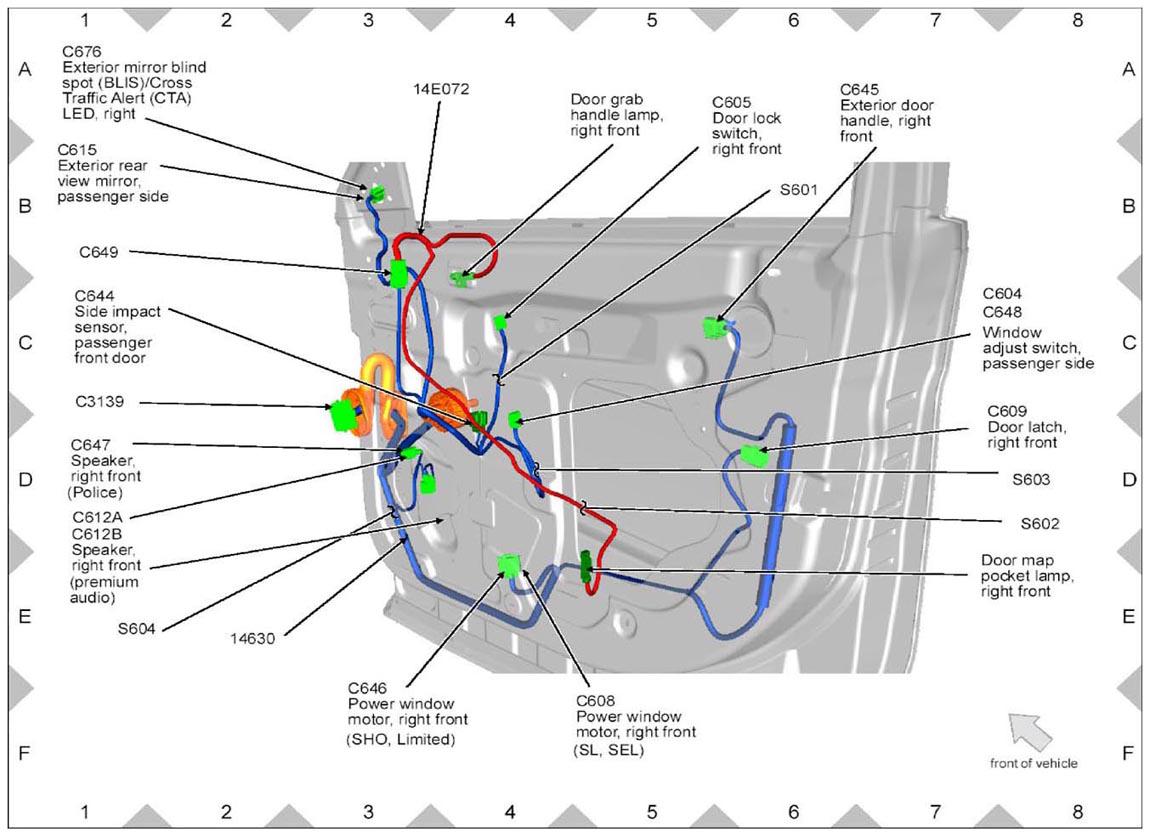

Fig 39: RH Front Door Wiring Harness Connectors Location

G09301894

Courtesy of FORD MOTOR CO.

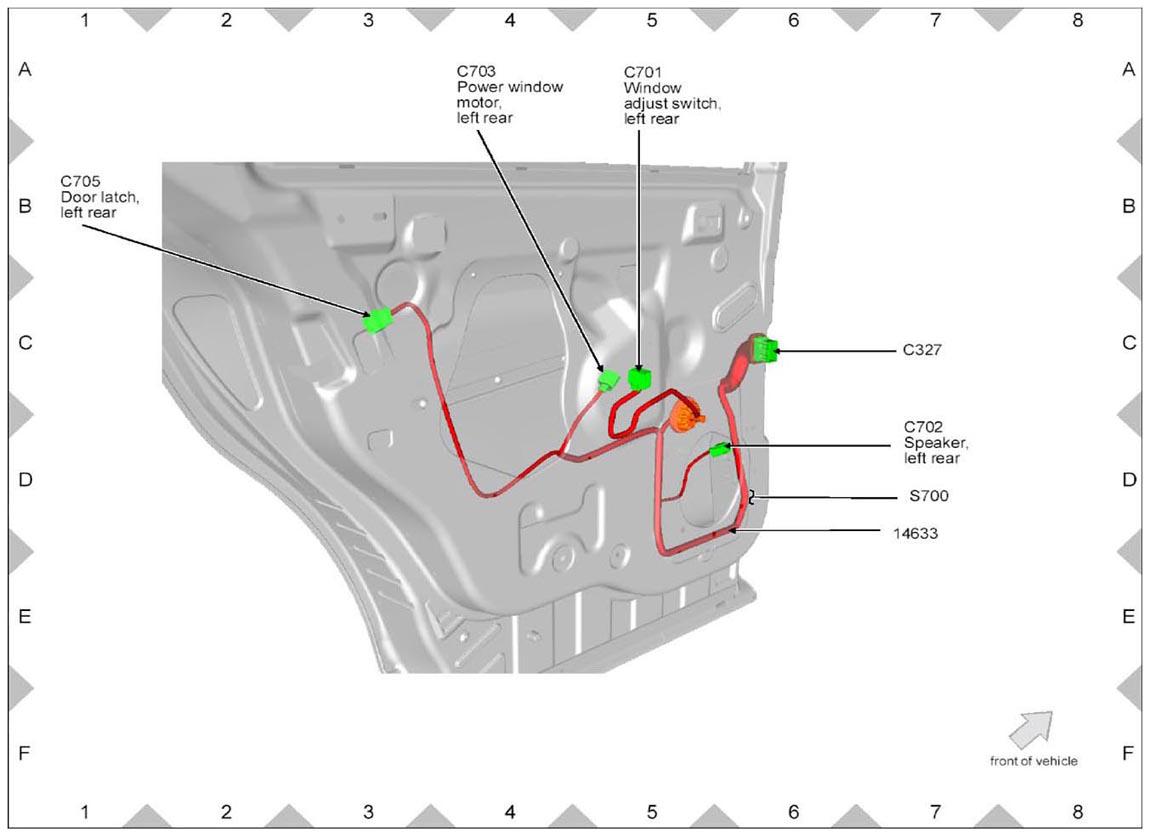

Fig 40: LH Rear Door Wiring Harness Connectors Location

G09301895

Courtesy of FORD MOTOR CO.

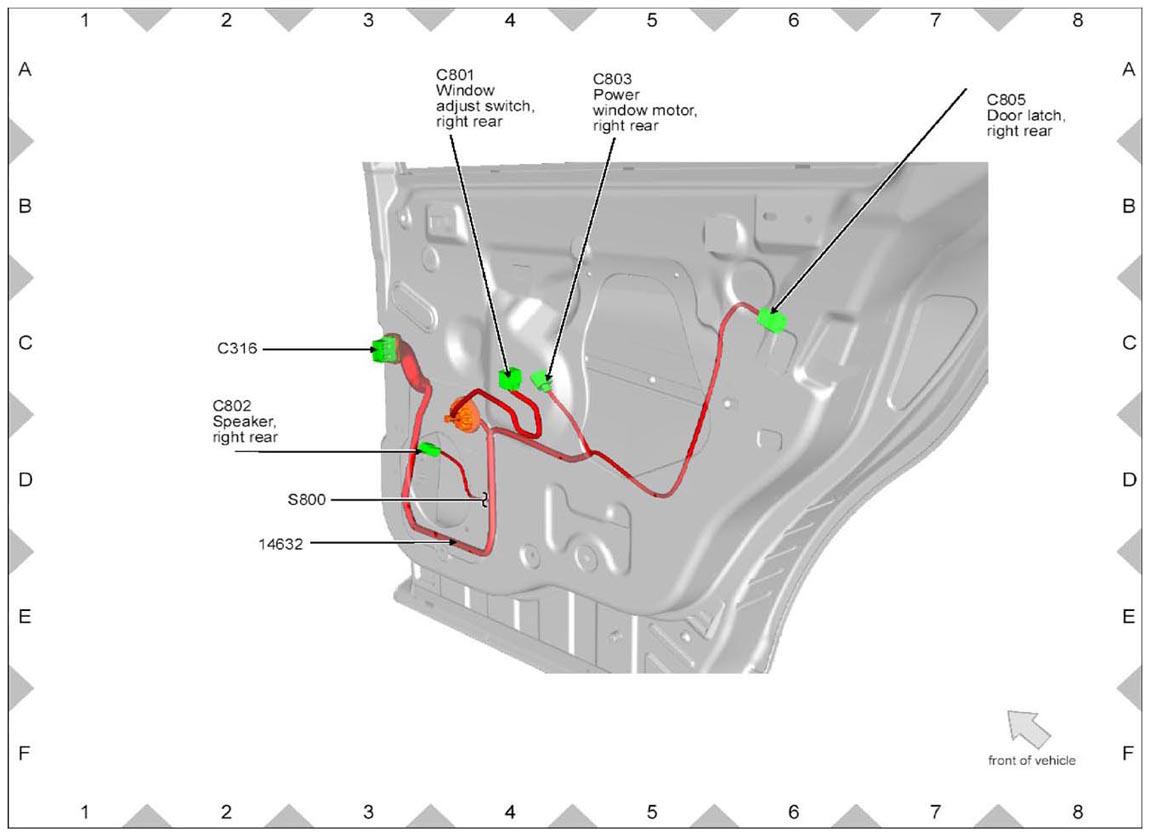

Fig 41: RH Rear Door Wiring Harness Connectors Location

G09301896

Courtesy of FORD MOTOR CO.

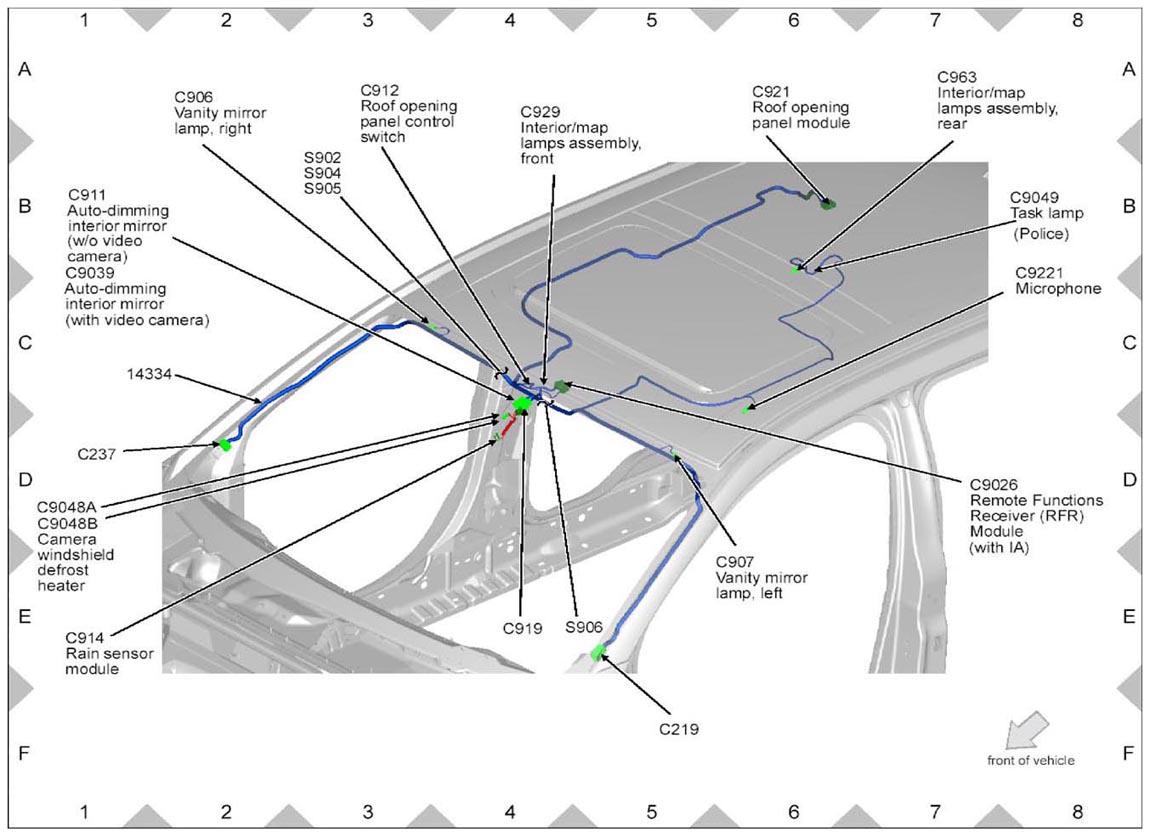

Fig 42: Roof Wiring Harness Connectors Location

G09301897

Courtesy of FORD MOTOR CO.
