Body Control Module (BCM)

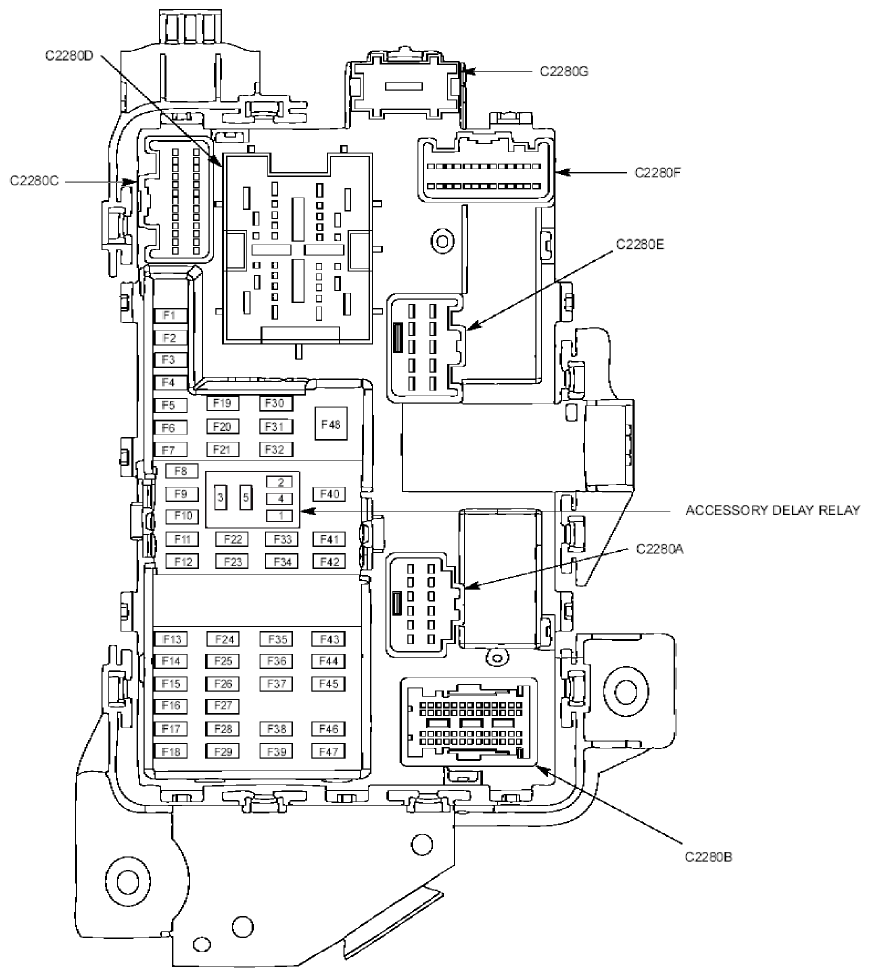

BODY CONTROL MODULE (BCM) RELAY IDENTIFICATION
| RELAY DESCRIPTION |
|---|
| Accessory Delay Relay |
BODY CONTROL MODULE (BCM) FUSE IDENTIFICATION LEGEND
| FUSE | Amps | Circuits protected |
|---|---|---|
| F1 | 30 | Power window motor, driver side front |
| F2 | 15 | Seat control switch, driver side front |
| F3 | 30 | Power window motor, passenger side front |
| F4 | 10 | Glove box lamp, Battery saver relay, Luggage compartment lamp, Vanity mirror lamps, Lumbar control modules, Interior/map lamps assembly |
| F5 | 20 | Police feed, Audio Digital Signal Processing (DSP) module |
| F6 | 5 | Not used |
| F7 | 7.5 | Driver Seat Module (DSM) - with memory Keypad switch assembly Driver Door Module (DDM) |
| F8 | 10 | Not used |
| F9 | 10 | Accessory Protocol Interface Module (APIM), Front Controls Interface Module (FCIM), Tire Pressure Monitor (TPM) module |
| F10 | 10 | Run/Acc Feeds. |
| F11 | 10 | Remote Function Actuator (RFA) module Head Up Display (HUD) module |
| F12 | 15 | Puddle lamps, Exterior rearview mirrors Interior lighting, Backlighting LED |
| F13 | 15 | Right front turn lamps Right rear lamp assembly - (police) Right rear stop/turn lamp, Right headlamp assembly |
| F14 | 15 | Left front turn lamps - Left rear lamp assembly - (police) Left rear stop/turn lamp, Left headlamp assembly |
| F15 | 15 | High mounted stoplamp, Stoplamp relay, Auto dimming interior mirror unit Rear lamp assemblies High mounted stoplamp capacitor, Sunshade module, Reversing lamps |
| F16 | 10 | Right headlamp - low beam |
| F17 | 10 | Left headlamp - low beam |
| F18 | 10 | Brake shift interlock (police) Powertrain Control Module (PCM), Passive anti-theft transceiver - w/o IA, Keyless switch assembly - w/o IA, Start/Stop switch - with IA Floor shifter |
| F19 | 20 | Police Option |
| F20 | 20 | Door latches, Remote Function Actuator (RFA) module |
| F21 | 10 | Not used |
| F22 | 20 | Horn, Horn relay |
| F23 | 15 | Steering Column Control Module (SCCM), Instrument Panel Cluster (IPC) |
| F24 | 15 | Data Link Connector (DLC), Steering Column Control Module (SCCM) |
| F25 | 15 | Lift glass release |
| F26 | 5 | Star/stop switch - with IA, Ignition switch - without IA |
| F27 | 20 | Remote Function Actuator (RFA) module |
| F28 | 15 | Not used |
| F29 | 20 | Audio Control Module (ACM), Global Positioning System Module (GPSM) |
| F30 | 15 | Left and right headlamp assemblies Left and right front auxiliary park lamps |
| F31 | 5 | Brake Pedal Position (BPP) switch, Remote Function Actuator (RFA) module, Powertrain Control Module (PCM). |
| F32 | 15 | Door lock switches, Power window motors, Master window adjust switch, Sunshade module |
| F33 | 10 | Not used |
| F34 | 10 | Heated seat module rear, Side obstacle detection control modules, Parking Aid Module (PAM), Video camera Auto dimming interior mirror |
| F35 | 5 | Head Up Display (HUD) module - with adaptive cruise control In-Vehicle Temperature/Humidity Sensor, Low gear selector switch (police) |
| F36 | 10 | Heated Steering Wheel Module (HSWM) |
| F37 | 10 | Not used |
| F38 | 10 | Auto-dimming interior mirror Roof opening panel module, Roof opening panel control switch |
| F39 | 15 | Headlamps - high beam |
| F40 | 10 | Rear Lamp assemblies License plate lamps, Reversing lamps |
| F41 | 7.5 | Restraints Control Module (RCM), Occupant Classification System Module (OCSM) |
| F42 | 5 | Police 4 function control |
| F43 | 10 | Not used |
| F44 | 10 | Not used |
| F45 | 5 | Start Bus |
| F46 | 10 | HVAC module |
| F47 | 15 | Fog lamp relay |
| F48 | 30 | Window adjust switches |
