OEM Ground Distribution: Grounds: G200

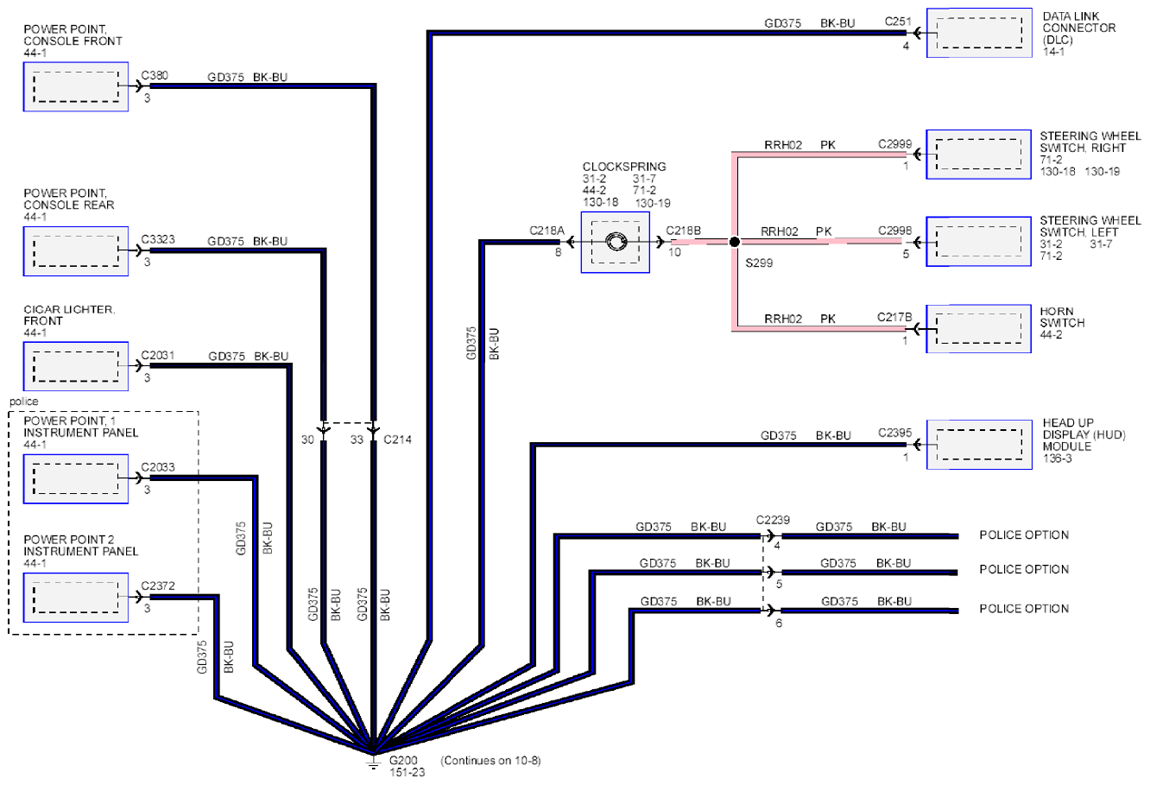

Fig 1: Grounds System - Wiring Diagram (G200; 1 Of 2)
G09300550Courtesy of FORD MOTOR CO.

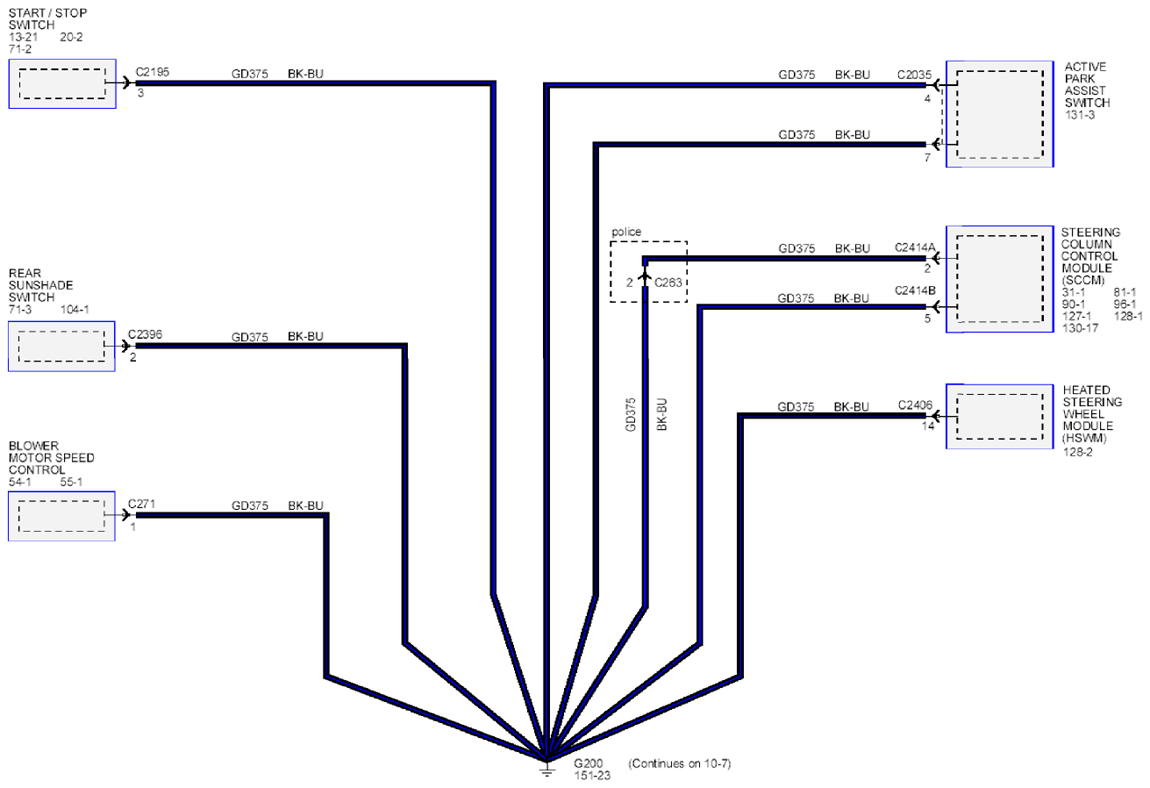

Fig 2: Grounds System - Wiring Diagram (G200; 2 Of 2)
G09300551Courtesy of FORD MOTOR CO.
