Fuel Level Sensor Connector End View (C3270)

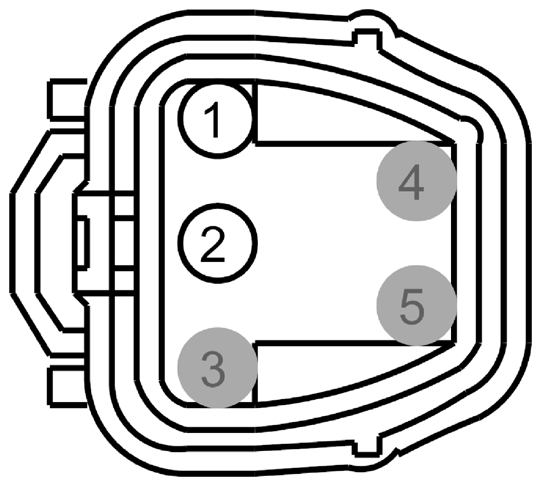

Fig 1: Identifying Fuel Level Sensor Connector (C3270)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	RMC33 (WH-VT)	20	CTRL MOD. - SENSOR FUEL LEVEL 2
2	VMC23 (GN-OG)	20	SENSOR - FUEL LEVEL 2 (FLI)
3	*	*	Not Used
4	*	*	Not Used
5	*	*	Not Used

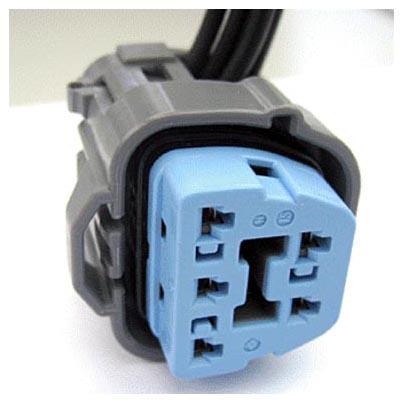

Available Pigtail Kits
Pigtail Kit Part Number WPT-909	Service Part Number: 8U2Z-14S411-NA  Gauge: 14  Pin material: Tin  Cavities: 5  Vehicle Uses Control - Engine Air Shutoff Resistor - Blower Motor (Front)
