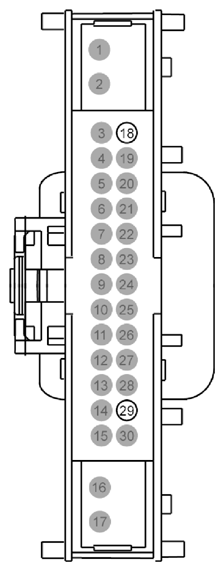

HVAC Module, EMTC Connector End View (C2357B)
Courtesy of FORD MOTOR CO.
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
| 1 |
* |
* |
Not Used |
|
| 2 |
* |
* |
Not Used |
|
| 3 |
* |
* |
Not Used |
|
| 4 |
* |
* |
Not Used |
|
| 5 |
* |
* |
Not Used |
|
| 6 |
* |
* |
Not Used |
|
| 7 |
* |
* |
Not Used |
|
| 8 |
* |
* |
Not Used |
|
| 9 |
* |
* |
Not Used |
|
| 10 |
* |
* |
Not Used |
|
| 11 |
* |
* |
Not Used |
|
| 12 |
* |
* |
Not Used |
|
| 13 |
* |
* |
Not Used |
|
| 14 |
* |
* |
Not Used |
|
| 15 |
* |
* |
Not Used |
|
| 16 |
* |
* |
Not Used |
|
| 17 |
* |
* |
Not Used |
|
| 18 |
VH413 (WH/BU) |
26 |
SENSOR - HUMIDITY |
|
| 19 |
* |
* |
Not Used |
|
| 20 |
* |
* |
Not Used |
|
| 21 |
* |
* |
Not Used |
|
| 22 |
* |
* |
Not Used |
|
| 23 |
* |
* |
Not Used |
|
| 24 |
* |
* |
Not Used |
|
| 25 |
* |
* |
Not Used |
|
| 26 |
* |
* |
Not Used |
|
| 27 |
* |
* |
Not Used |
|
| 28 |
* |
* |
Not Used |
|
| 29 |
VH414 (GN/BU) |
26 |
SENSOR - INCAR TEMP. |
|
| 30 |
* |
* |
Not Used |
|
