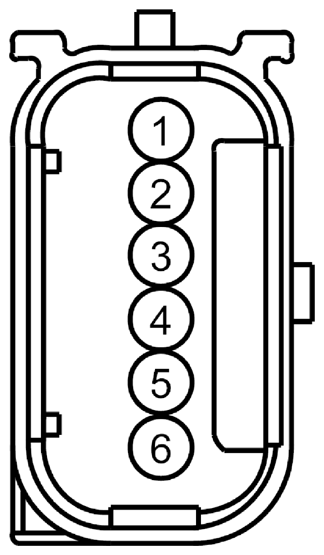

Keypad Switch Assembly Connector End View (C500)

Fig 1: Identifying Keypad Switch Assembly Connector (C500)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	SBP07 (WH-RD)	20	FUSE - 7 OR CIRCUIT BREAKER
2	CPK28 (WH-GN)	20	CTRL MOD. - SWITCH KEYLESS KEYPAD ILLUMINATION
3	CPK29 (GY-BU)	20	SWITCH - KEYLESS KEYPAD LINE A
4	CPK30 (VT-GN)	20	SWITCH - KEYLESS KEYPAD LINE B
5	CPK31 (YE-GN)	20	SWITCH - KEYLESS KEYPAD LINE C
6	GD233 (BK)	20	GROUND - COWL SIDE/PILLAR A LEFT (BC3T)
