Removal and Installation
- If a new HSWM
is being installed, connect the scan tool and upload the module configuration information from the HSWM
. For additional information on configuration, refer to PMI
in
MODULE CONFIGURATION
.

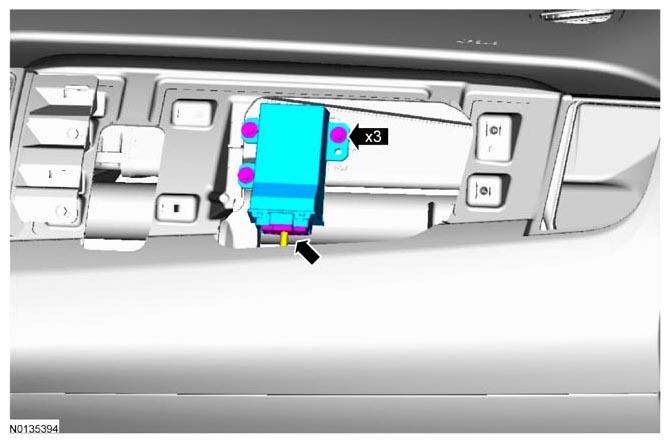

- Remove the RH instrument panel finish panel. Refer to
INSTRUMENT PANEL AND CONSOLE
.
-
- To install, tighten to 3 Nm (27 lb-in).
- To install, reverse the removal procedure.
- If a new HSWM
was installed, it must be configured (using vehicle as-built data or module configuration information retrieved earlier in this procedure). For additional information on configuration, refer to PMI
in
MODULE CONFIGURATION
.
