Differential Gear Assembly: Disassembly
-
NOTE: AWD shown in illustration below, FWD similar.

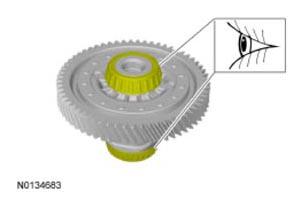

Inspect the differential bearings for damage or excessive wear. Install new bearings if necessary.

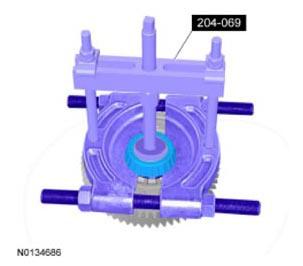

- Special Tool(s): Remover/Installer, Front Wheel Hub 204-069 (T81P-1104-C), Puller, Bearing 205-D064 (D84L-1123-A), Step Plate 205-D019 (D80L-630-8) (AWD
) or Step Plate 205-D015 (D80L-630-4) (FWD
).
-
NOTE: AWD shown in illustration below, FWD similar.
Special Tool(s): Remover/Installer, Front Wheel Hub 204-069 (T81P-1104-C), Puller, Bearing 205-D064 (D84L-1123-A), Step Plate 205-D019 (D80L-630-8).
-
NOTE: If replacing the ring gear, it is also necessary to replace the transfer shaft.

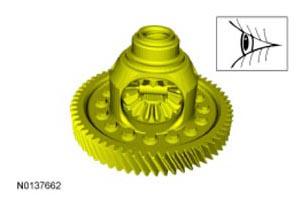

Check the differential assembly and the ring gear for damage. Visual check.
