Cover Seal: Installation

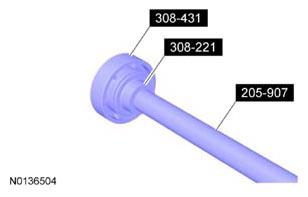

  1. Special Tool(s): Handle, Driver (32 in) 205-907, Installer, Halfshaft Oil Seal 308-431, Installer, Shaft Bearing Cup 308-221 (T94P-7025-BH).
    G08616329

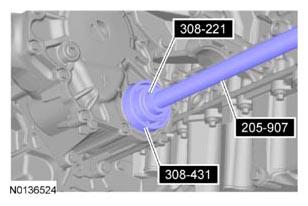

  2. New cover seal.

    Special Tool(s): Handle, Driver (32 in) 205-907, Installer, Halfshaft Oil Seal 308-431, Installer, Shaft Bearing Cup 308-221 (T94P-7025-BH).

    G08616330
  3. Install the intermediate shaft seal and deflector. Refer to INTERMEDIATE SHAFT SEAL AND DEFLECTOR .
  4. Fill the PTU  as necessary. Refer to POWER TRANSFER UNIT (PTU) DRAINING AND FILLING .
