Input Shaft Seal: Installation

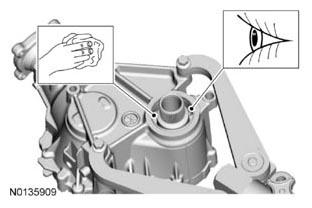

  1. Clean the specified component with the special material. Visual check.
    G08616373
  2. Visual check.

    Special Tool(s): Remover/Installer, PTU Input Shaft Seal 308-777/4, Handle 205-153 (T80T-4000-W).

    G07810576
  3. Visual check.

    Special Tool(s): Remover/Installer, PTU Input Shaft Seal 308-777/5, Handle 205-153 (T80T-4000-W).

    G07810577
  4. New compression seal.
    G07795468
  5. Install the PTU  . Refer to POWER TRANSFER UNIT (PTU) - 3.5L TI-VCT  or POWER TRANSFER UNIT (PTU) - 3.5L GTDI .
  6. Fill the PTU  as necessary. Refer to POWER TRANSFER UNIT (PTU) DRAINING AND FILLING .
