Transfer Case Cooler: Removal

Remove the RH catalytic converter. Refer to EXHAUST SYSTEM .

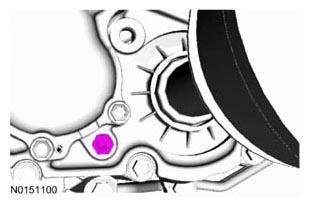

Remove the drain plug and drain the PTU .
- Torque to 20 Nm (177 lb-in).
NOTE: Clean the area around the PTU temperature sensor before removing.

NOTE: The PTU temperature sensor can be removed using a 15mm crows foot and extension.
