Powertrain Control Module (PCM): Installation

To install, reverse the removal procedure.

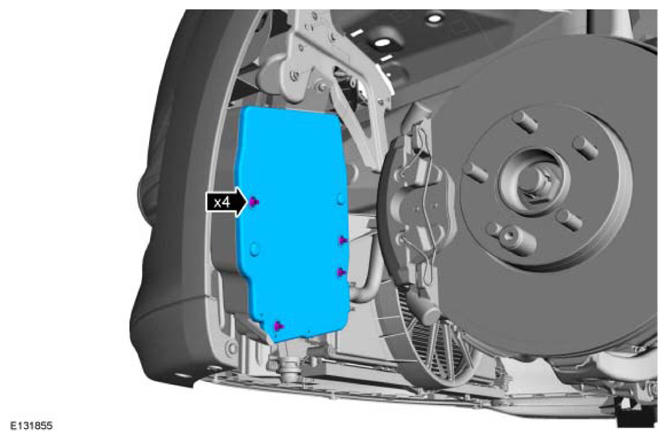

Vehicles with PCM security shield
Tighten the shear bolt until the head is sheared off.

All vehicles
NOTE: This step is only necessary when installing a new component.

Upload the module information from the diagnostic tool to the module using the Programmable Modules Installation routine.

Use the General Equipment: Ford Diagnostic Equipment
