Glow Plug Module Connector End View (C1273)

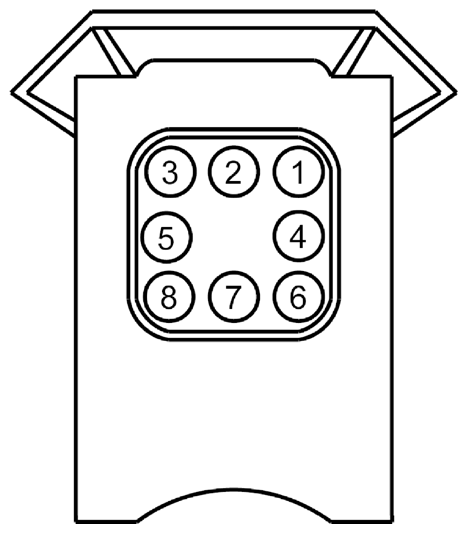

Fig 1: Identifying Glow Plug Module Connector (C1273)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CE245 (VT-WH)	12	CTRL MOD. - GLOW PLUG 3 OR ELECTRONIC COLD START
2	CE243 (GY-VT)	12	CTRL MOD. - GLOW PLUG 1 OR ELECTRONIC COLD START
3	CE609 (WH-OG)	20	RELAY - GLOW PLUGS
4	CBB04 (BK-VT)	6	FUSE - 4 OR CIRCUIT BREAKER
5	CE513 (BK-GY)	4	CONTROLLER - GLOW PLUG
6	CE246 (YE-BU)	12	CTRL MOD. - GLOW PLUG 4 OR ELECTRONIC COLD START
7	CE244 (BU-BN)	12	CTRL MOD. - GLOW PLUG 2 OR ELECTRONIC COLD START
8	CBB02 (GN)	20	FUSE - 2 OR CIRCUIT BREAKER
