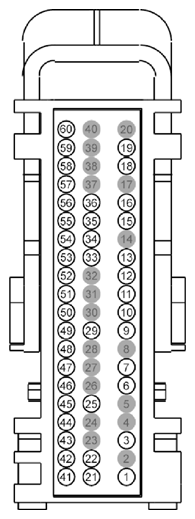

| 1 |
CLS08 (VT-GN) |
20 |
CTRL MOD. - PARK REAR LEFT |
|
| 2 |
* |
* |
Not Used |
|
| 3 |
CLS27 (GN-OG) |
18 |
CTRL MOD. - TURN LAMP RIGHT REAR |
|
| 4 |
* |
* |
Not Used |
|
| 5 |
* |
* |
Not Used |
|
| 6 |
CLS23 (GY-OG) |
18 |
CTRL MOD. - TURN LAMP LEFT REAR |
|
| 7 |
CHP03 (GN-BN) |
22 |
SWITCH - PTC HEATER |
|
| 8 |
* |
* |
Not Used |
|
| 9 |
CLS44 (VT-BN) |
18 |
CTRL MOD. - STOP |
|
| 10 |
CLS45 (BN-GN) |
18 |
CTRL MOD. - FOG LAMP REAR (LEFT) + |
|
| 11 |
CLS45 (VT-GN) |
18 |
CTRL MOD. - FOG LAMP REAR (LEFT) + |
|
| 12 |
CLS44 (VT-BN) |
18 |
CTRL MOD. - STOP |
|
| 13 |
CLS09 (VT-GN) |
20 |
CTRL MOD. - PARK REAR RIGHT |
|
| 14 |
* |
* |
Not Used |
|
| 15 |
CLS17 (YE-GY) |
20 |
CTRL MOD. - STOP HIGH MOUNT |
|
| 16 |
CPL53 (WH-OG) |
18 |
CTRL MOD. - DOOR LOCK # REAR DRIVER SIDE UNLOCK (INCL. SLIDING DOOR) |
|
| 17 |
* |
* |
Not Used |
|
| 18 |
CLN17 (BN) |
22 |
SWITCH - IP/SWITCH ILLUMINATION |
|
| 19 |
CHP01 (BU) |
22 |
CTRL MOD. - PTC HEATER # HEATER |
|
| 20 |
* |
* |
Not Used |
|
| 21 |
CPL45 (YE-VT) |
20 |
SWITCH - LIFTGATE/DECKLID RELEASE |
|
| 22 |
CRD02 (BN-BU) |
20 |
CTRL MOD. - RELAY HEATER REAR WINDOW |
|
| 23 |
* |
* |
Not Used |
|
| 24 |
* |
* |
Not Used |
|
| 25 |
CPL39 (YE) |
22 |
SWITCH - LATCH REAR PASSENGER SIDE # AJAR (INCL. SLIDING DOOR) |
|
| 26 |
* |
* |
Not Used |
|
| 27 |
* |
* |
Not Used |
|
| 28 |
* |
* |
Not Used |
|
| 29 |
RMC32 (GN-BU) |
20 |
CTRL MOD. - SENSOR FUEL LEVEL |
|
| 30 |
* |
* |
Not Used |
|
| 31 |
* |
* |
Not Used |
|
| 32 |
* |
* |
Not Used |
|
| 33 |
CPL29 (YE-GY) |
22 |
SWITCH - LATCH DRIVER # SET |
|
| 34 |
CPL11 (GY-BN) |
18 |
CTRL MOD. - DOOR LOCK # ALL LOCK |
|
| 35 |
CPL53 (WH-OG) |
18 |
CTRL MOD. - DOOR LOCK # REAR DRIVER SIDE UNLOCK (INCL. SLIDING DOOR) |
|
| 36 |
CPL42 (GY-YE) |
22 |
SWITCH - TRIM DOOR LOCK (DRIVER) # LOCK |
|
| 37 |
* |
* |
Not Used |
|
| 38 |
* |
* |
Not Used |
|
| 39 |
* |
* |
Not Used |
|
| 40 |
* |
* |
Not Used |
|
| 41 |
CDC03 (BU) |
20 |
CTRL MOD. - RELAY IGNITION REAR JUNCTION BOX |
wagon |
| 41 |
SRH01 (YE-RD) |
20 |
RELAY - HORN |
van |
| 42 |
SRH01 (YE-RD) |
20 |
RELAY - HORN |
|
| 43 |
CRW02 (GY-BU) |
20 |
CTRL MOD. - REAR WIPER |
|
| 44 |
CPL36 (GN) |
22 |
SWITCH - LATCH REAR DRIVER SIDE # AJAR (INCL. SLIDING DOOR) |
|
| 45 |
CPL26 (GN-VT) |
22 |
SWITCH - LATCH DRIVER # AJAR |
|
| 46 |
CPL31 (WH) |
22 |
SWITCH - LATCH PASSENGER # AJAR |
|
| 47 |
CPL44 (YE-OG) |
26 |
SWITCH - LIFTGATE/DECKLID/CARGO # AJAR |
|
| 48 |
* |
* |
Not Used |
|
| 49 |
CPL45 (BN) |
26 |
SWITCH - LIFTGATE/DECKLID RELEASE |
|
| 50 |
* |
* |
Not Used |
|
| 51 |
* |
* |
Not Used |
|
| 52 |
* |
* |
Not Used |
|
| 53 |
VMC11 (YE-VT) |
20 |
SENSOR - FUEL LEVEL (FLI) |
|
| 54 |
* |
* |
Not Used |
|
| 55 |
CPL30 (GN-VT) |
22 |
SWITCH - LATCH DRIVER # UNLOCK |
|
| 56 |
CPL28 (GY-BN) |
22 |
SWITCH - LATCH DRIVER # RESET |
|
| 57 |
* |
* |
Not Used |
|
| 58 |
* |
* |
Not Used |
|
| 59 |
* |
* |
Not Used |
|
| 60 |
* |
* |
Not Used |
|
