Body Control Module (BCM) Connector End View (C2280H)

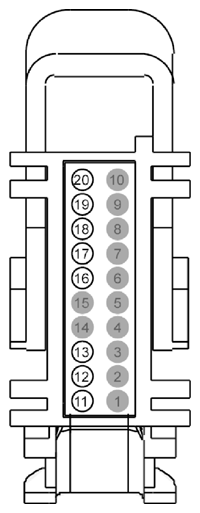

Fig 1: Identifying Body Control Module Connector (C2280H)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	*	*	Not Used
2	*	*	Not Used
3	*	*	Not Used
4	*	*	Not Used
5	*	*	Not Used
6	*	*	Not Used
7	*	*	Not Used
8	*	*	Not Used
9	*	*	Not Used
10	*	*	Not Used
11	CLN27 (WH-BN)	20	CTRL MOD. - DIMMER INSTRUMENT
12	VRT26 (VT)	20	CTRL MOD. - INTERIOR SCAN SENSOR LIN BUS
13	VRW26 (BN-YE)	26	CTRL MOD. - RAIN SENSOR LIN BUS
14	*	*	Not Used
15	*	*	Not Used
16	CBP04 (VT)	22	FUSE - 4 OR CIRCUIT BREAKER
17	CBP01 (BU)	22	FUSE - 1 OR CIRCUIT BREAKER
18	SBP21 (GY-RD)	22	FUSE - 21 OR CIRCUIT BREAKER
19	*	*	Not Used
20	CLN27 (WH-BN)	22	CTRL MOD. - DIMMER INSTRUMENT
