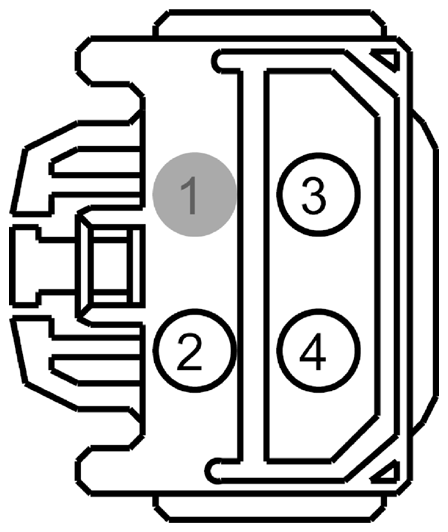

Rear Blower Motor Control Module Connector End View (C3448A)

Fig 1: Identifying Rear Blower Motor Control Module Connector (C3448A)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	*	*	Not Used
2	GD354 (BK-BU)	4	GROUND - ROCKER PANEL FRONT LEFT # 2ND POINT
3	VH101 (WH-VT)	20	CTRL MOD. - CLIMATE # BLOWER MOTOR CONTROL
4	CBP18 (GY-OG)	4	FUSE - 18 OR CIRCUIT BREAKER

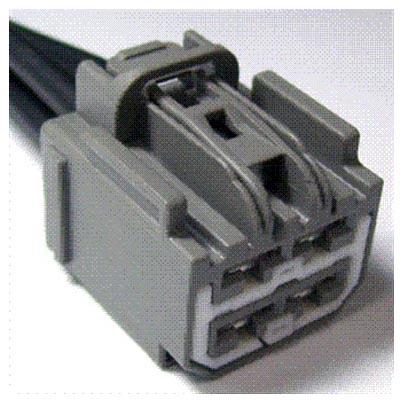

Available Pigtail Kits
Pigtail Kit Part Number WPT-1177	Service Part Number: AU2Z-14S411-BHA  Gauge: 10  Pin material: Tin  Cavities: 4  Vehicle Uses Resistor - Blower Motor (Front) Switch - Heater/A/C Blower (Front)
