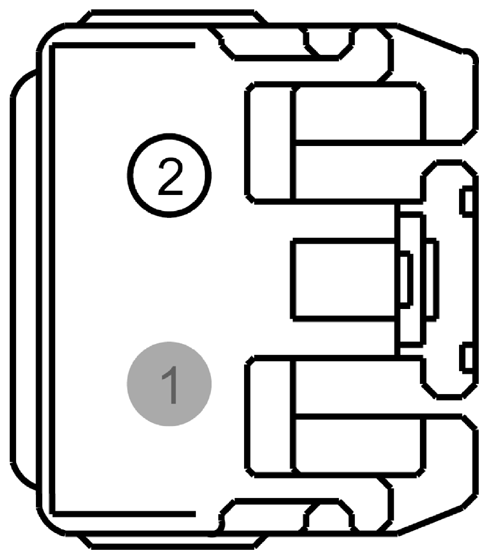

Trailer Module Connector End View (C4379A)

Fig 1: Identifying Trailer Module Connector (C4379A)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	*	*	Not Used
2	SBB07 (WH-RD)	4	FUSE - 7 OR CIRCUIT BREAKER
2	SBR11 (BU-RD)	4	FUSE - 11 OR CIRCUIT BREAKER

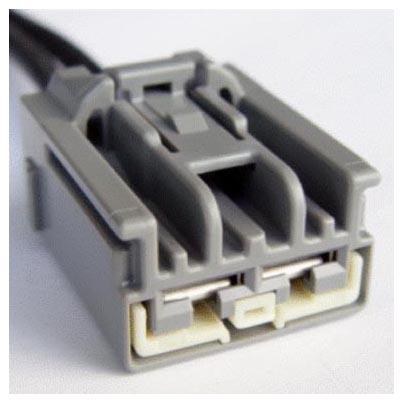

Available Pigtail Kits
Pigtail Kit Part Number WPT-236	Service Part Number: 3U2Z-14S411-PA  Gauge: 10  Pin material: Tin  Cavities: 2  Vehicle Uses Mirror - Vanity Module - Seat Memory Motor - Heater/AC Blower (Auxiliary) Motor - Heater/AC Blower (Front) Radio - Amplifier Resistor - Blower Motor (Front) Switch - Heater/A/C Blower (Front)
