Transmission Case: Assembly

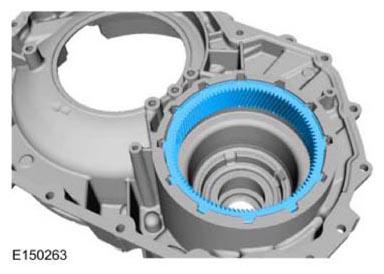

  1. G08636879

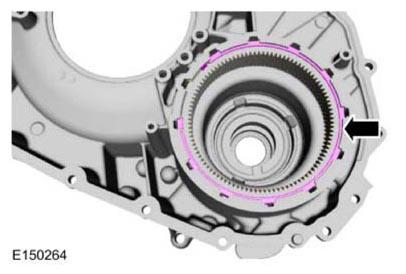

  2. NOTE: Be sure the flat side of the beveled snap ring is facing down or the ring can come loose, causing damage to the transmission.
    G08636878

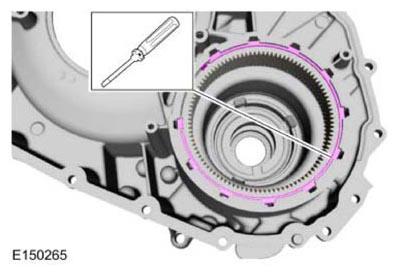

  3. NOTE: Make sure the snap ring is seated in the groove.

    Use the General Equipment: Flat Headed Screw Driver

    G08636882

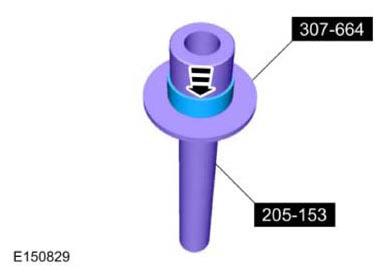

  4. Use Special Service Tool: 205-153 (T80T-4000-W) Handle  , 307-664 Case Bushing Installer  .
    G08636883

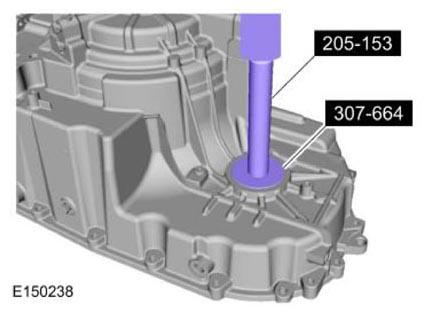

  5. Use Special Service Tool: 205-153 (T80T-4000-W) Handle  , 307-664 Case Bushing Installer  .

    Use the General Equipment: Hydraulic Press

    G09739644
