Front Wheel Speed Sensor: Removal

NOTE: Removal steps in this procedure may contain installation details.

• 1.

  Remove the wheel and tire. Refer to: Wheel and Tire .

• 2.


  NOTE: Make sure that the sensor housing is clean and free of foreign material.

  • 1.

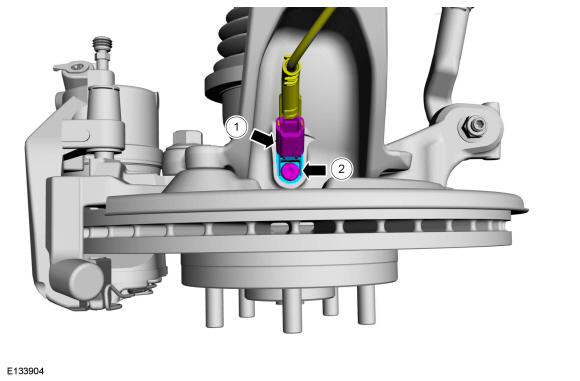

    Disconnect the electrical connector.

  • 2.

    Remove the bolt and the front wheel speed sensor.

    Torque

    : 42 lb.in (4.8 Nm)

Courtesy of FORD MOTOR COMPANY
