Selector Lever Assembly: Removal
NOTE:
Removal steps in this procedure may contain installation details.
- 1.
Remove the floor console. Refer to: Floor Console .

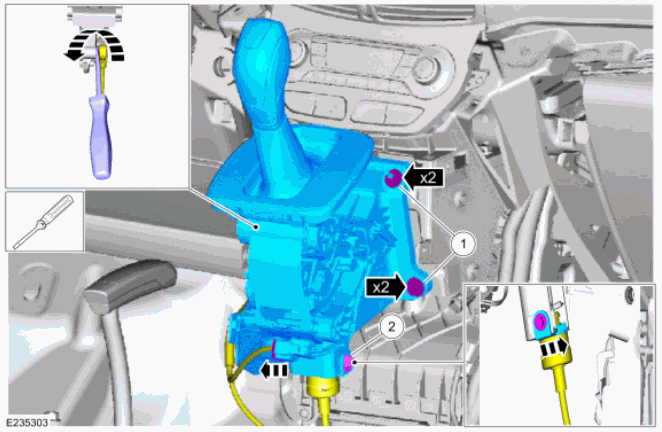

- 2.NOTE: Do not pull or pry on the selector lever cable or the selector lever cable end may be damaged. Use a screwdriver and turn the screwdriver as shown to pry the cable end off the post as close to the post as possible.
- 1.
Torque: 80 lb.in (9 Nm)
- 2.
Torque: 62 lb.in (7 Nm)
- 1.
