Selector Lever Cable: Removal

1.

With the vehicle in N, position it on a hoist. Refer to: Jacking and Lifting - Overview .

2.

Remove the retainers and the engine undershield.

GFD13207

Courtesy of FORD MOTOR COMPANY

3.

Disconnect the selector lever cable from the transmission manual control lever.

GFD13423

Courtesy of FORD MOTOR COMPANY

4.

Remove the air cleaner. Refer to: Air Cleaner .

5.

Remove the bolt, unclip the selector lever cable retainer and disconnect the cable from the bracket.

GFD13433

Courtesy of FORD MOTOR COMPANY

6.

Remove the bolts and position the brake fluid reservoir aside.

GFD13328

Courtesy of FORD MOTOR COMPANY

7.

Detach the selector lever cable from the retainers.

GFD13434

Courtesy of FORD MOTOR COMPANY

8.

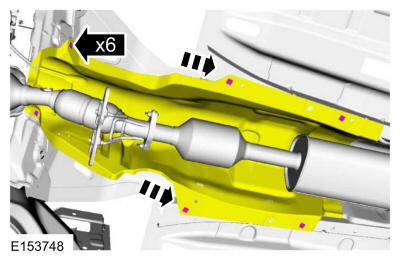

Remove the retainers and position the exhaust heat shield to the rear.

GFD13435

Courtesy of FORD MOTOR COMPANY

9.

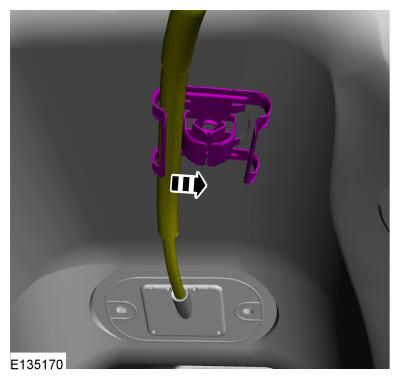

Detach the selector lever cable from the retainer.

GFD13436

Courtesy of FORD MOTOR COMPANY

10.

Remove the floor console. Refer to: Floor Console .

11.

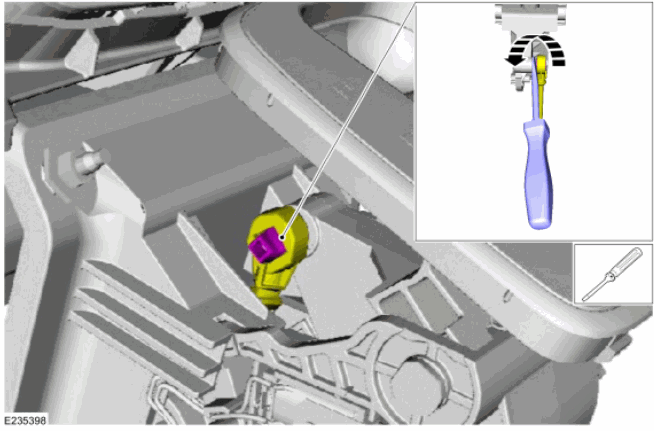

NOTE: Do not pull or pry on the selector lever cable or the selector lever cable end may be damaged. Use a screwdriver and turn the screwdriver as shown to pry the cable end off the post as close to the post as possible.

Using a screwdriver, pry the selector lever cable end from the selector lever.

G00537637

Courtesy of FORD MOTOR COMPANY

12.

Remove the bolt, unclip the selector lever retainer and disconnect the cable from the selector lever.

GFD13438

Courtesy of FORD MOTOR COMPANY

13.

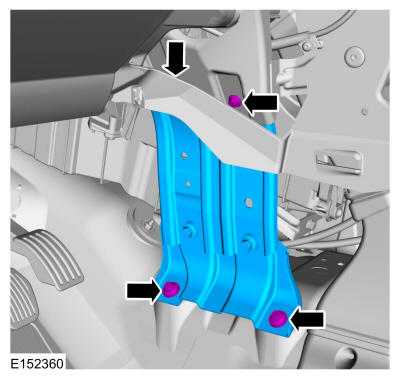

Remove the bolts and the instrument panel bracket.

GFD13439

Courtesy of FORD MOTOR COMPANY

14.

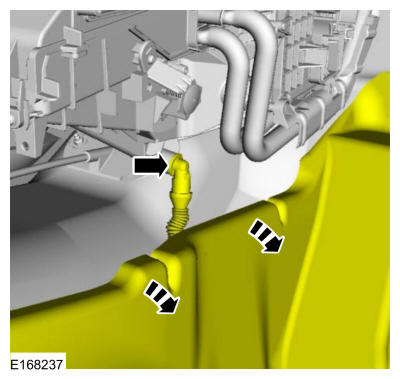

Position the carpet aside and disconnect the HVAC hose.

GFD13440

Courtesy of FORD MOTOR COMPANY

15.

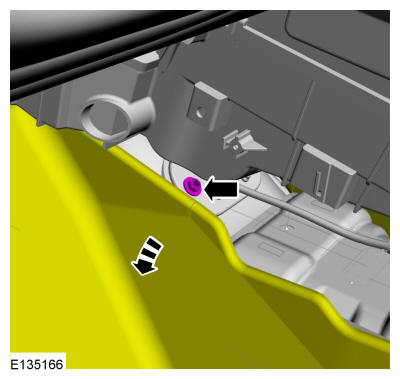

Position the carpet aside and remove the selector lever cable grommet nuts.

GFD13441

Courtesy of FORD MOTOR COMPANY

16.

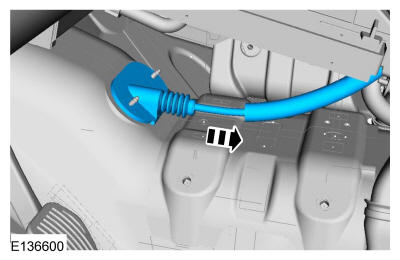

Remove the selector lever cable.

GFD13442

Courtesy of FORD MOTOR COMPANY
