Downshift Paddle Switch: Removal

NOTE: Removal steps in this procedure may contain installation details.

  1. 1.

    Remove the driver airbag. REFER to: Driver Airbag .

  1. 2.

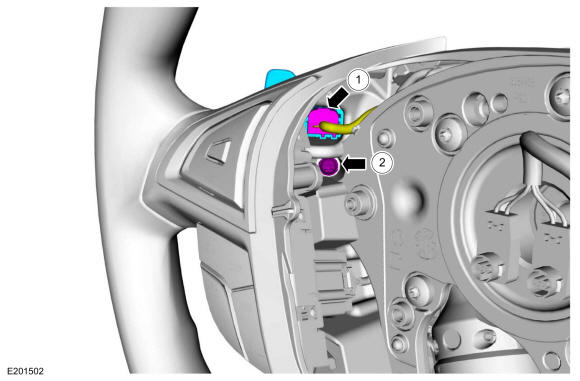

    Remove the downshift paddle switch.

    1. 1.

      Disconnect the electrical connector.

    1. 2.

      Remove the retainer and the downshift paddle switch.

      Torque

      : 44 lb.in (5 Nm)

GFD19044Courtesy of FORD MOTOR COMPANY
