Window Control Switch - With Door Modules

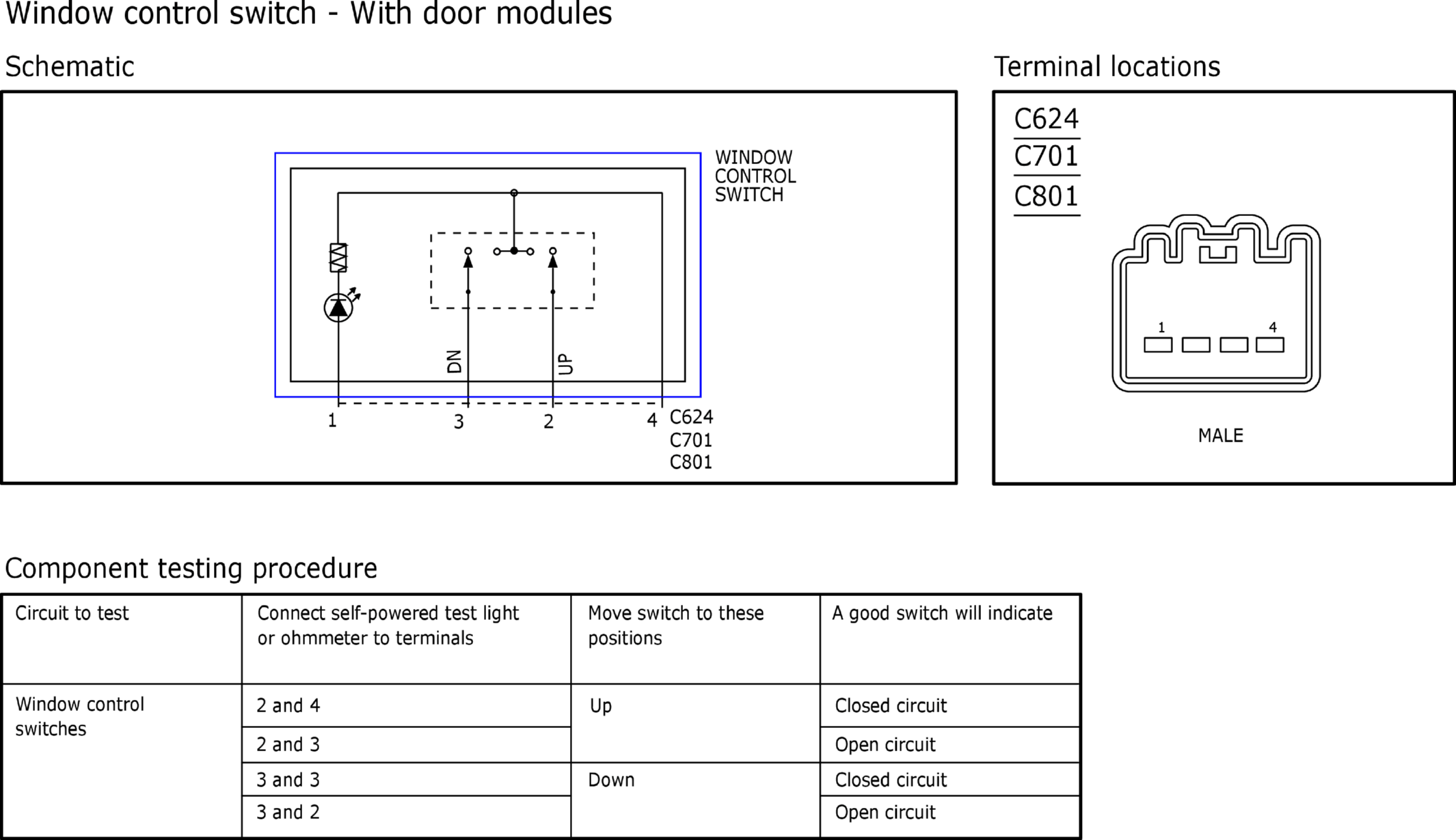

Fig 1: Window Control Switch - With Door Modules
GFDW18756Courtesy of FORD MOTOR COMPANY
