Front Door Window Control Switch: Removal

NOTE: LH side shown, RH side similar.

1.

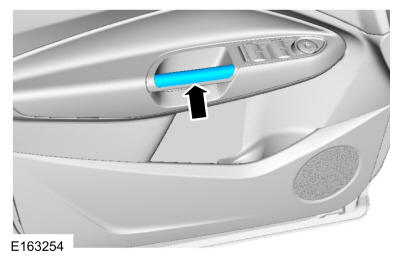

Remove the front door window control switch trim cover.

GFD51355

Courtesy of FORD MOTOR COMPANY

2.

NOTE: Use care when releasing the rear clip to prevent breakage to the bezel during removal.

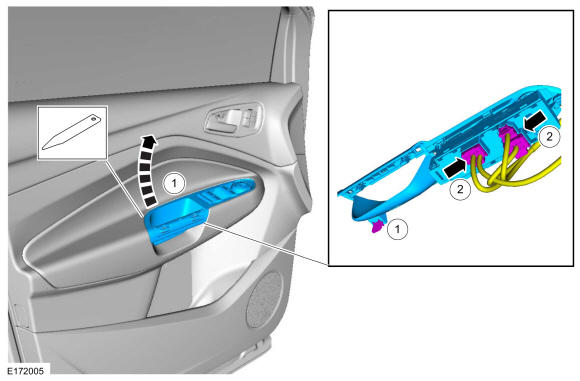

Remove the front door window control switch.
1. 1.

  Release the rear clip and remove the switch bezel.
1. 2.

  Disconnect the electrical connectors.

GFD51356

Courtesy of FORD MOTOR COMPANY
