All-Wheel Drive (AWD) Module: Removal

WARNING: This page is about a different variant/trim than selected.
NOTE: Removal steps in this procedure may contain installation details.

  1. 1.

    Remove D-pillar trim panel. Refer to: D-Pillar Trim Panel .

  1. 2.

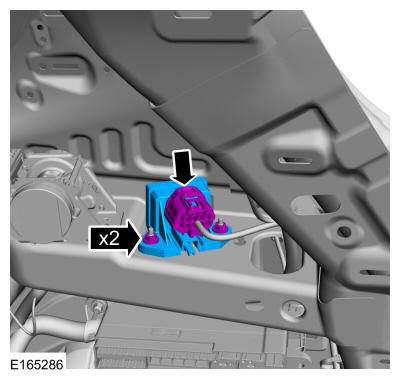

    • Disconnect the AWD module electrical connector.
    • Remove the nuts and the AWD module.
GFD50473Courtesy of FORD MOTOR COMPANY
