Component Location Views

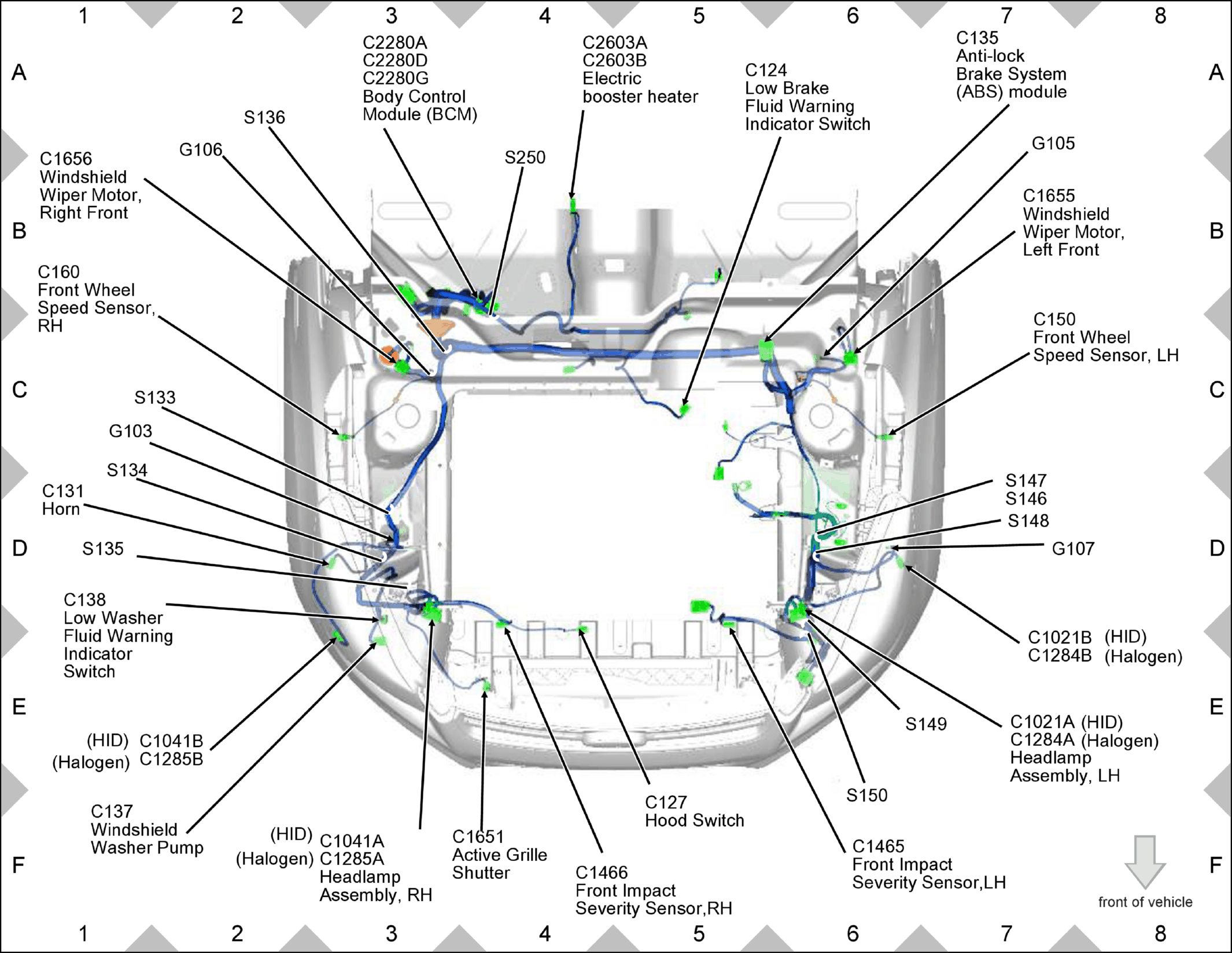

GFDW17760Courtesy of FORD MOTOR COMPANY

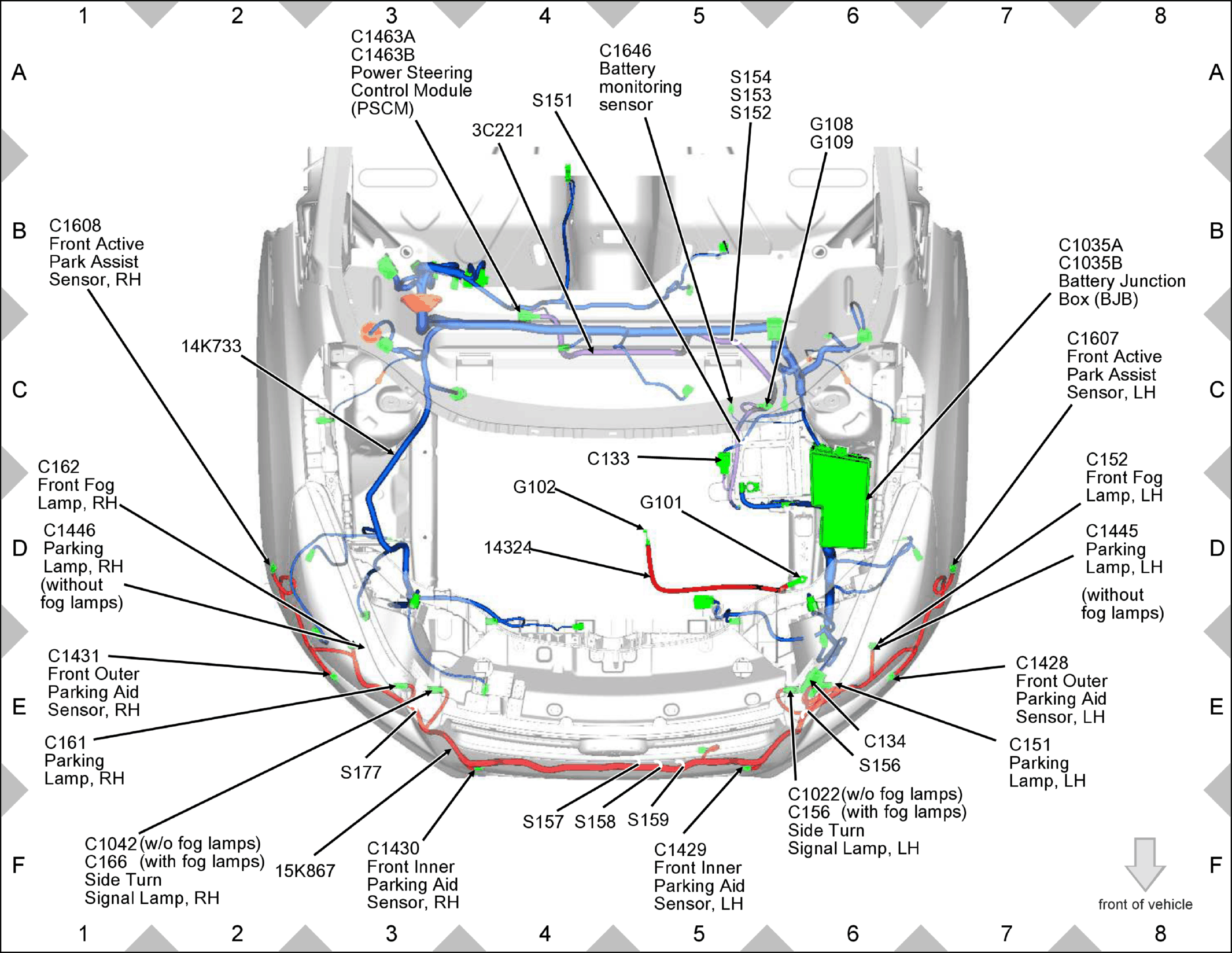

GFDW17761Courtesy of FORD MOTOR COMPANY

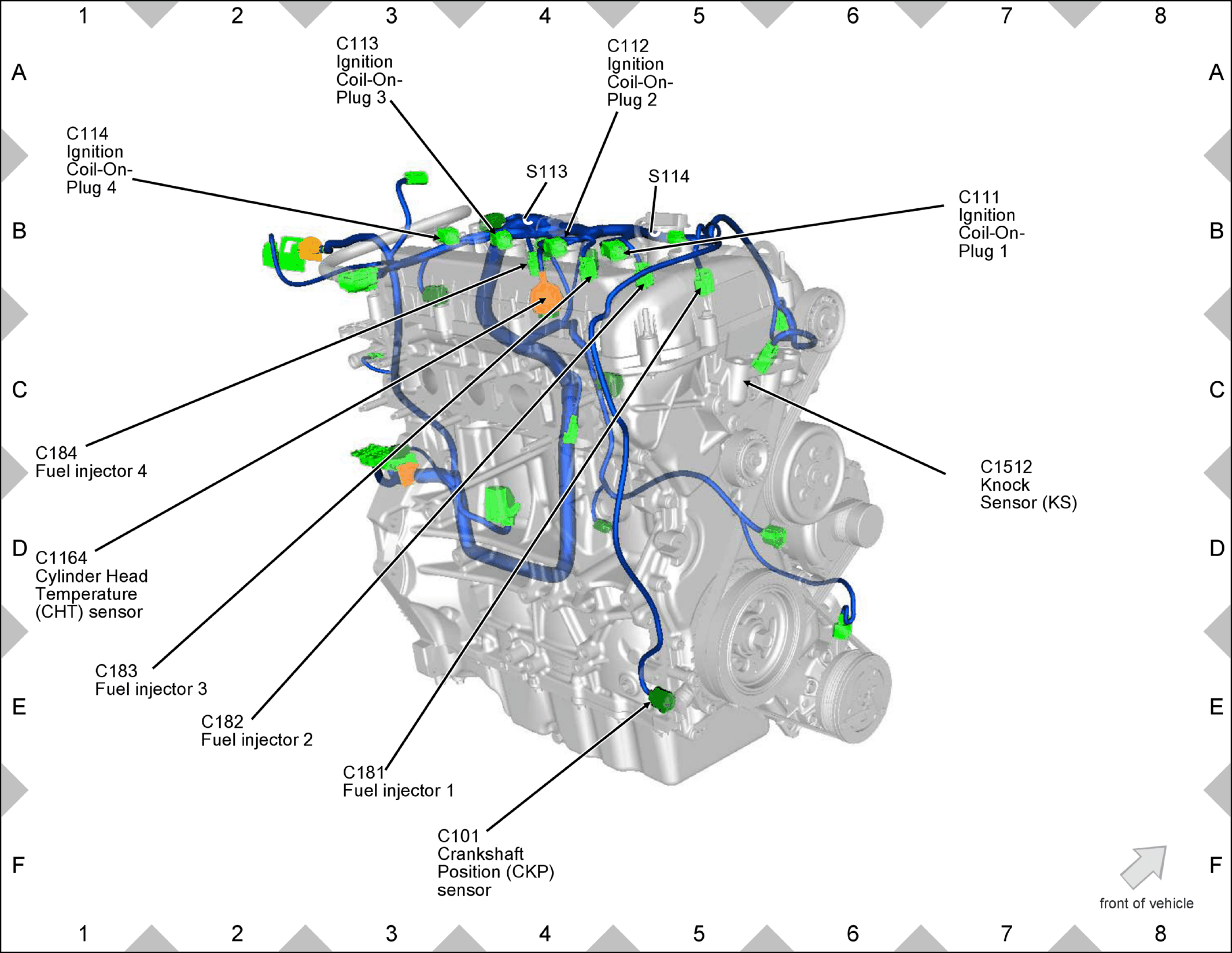

GFDW17762Courtesy of FORD MOTOR COMPANY

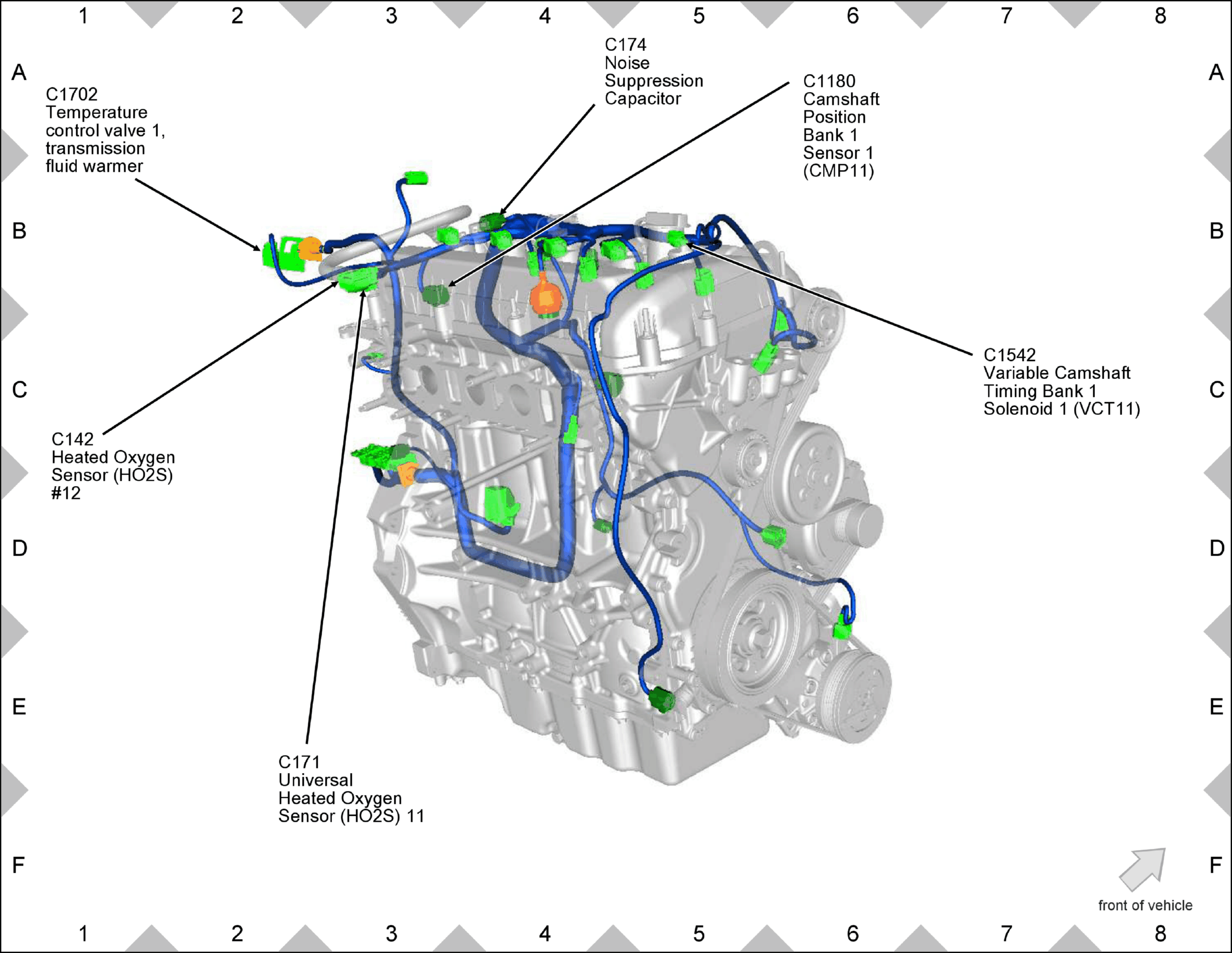

GFDW17763Courtesy of FORD MOTOR COMPANY

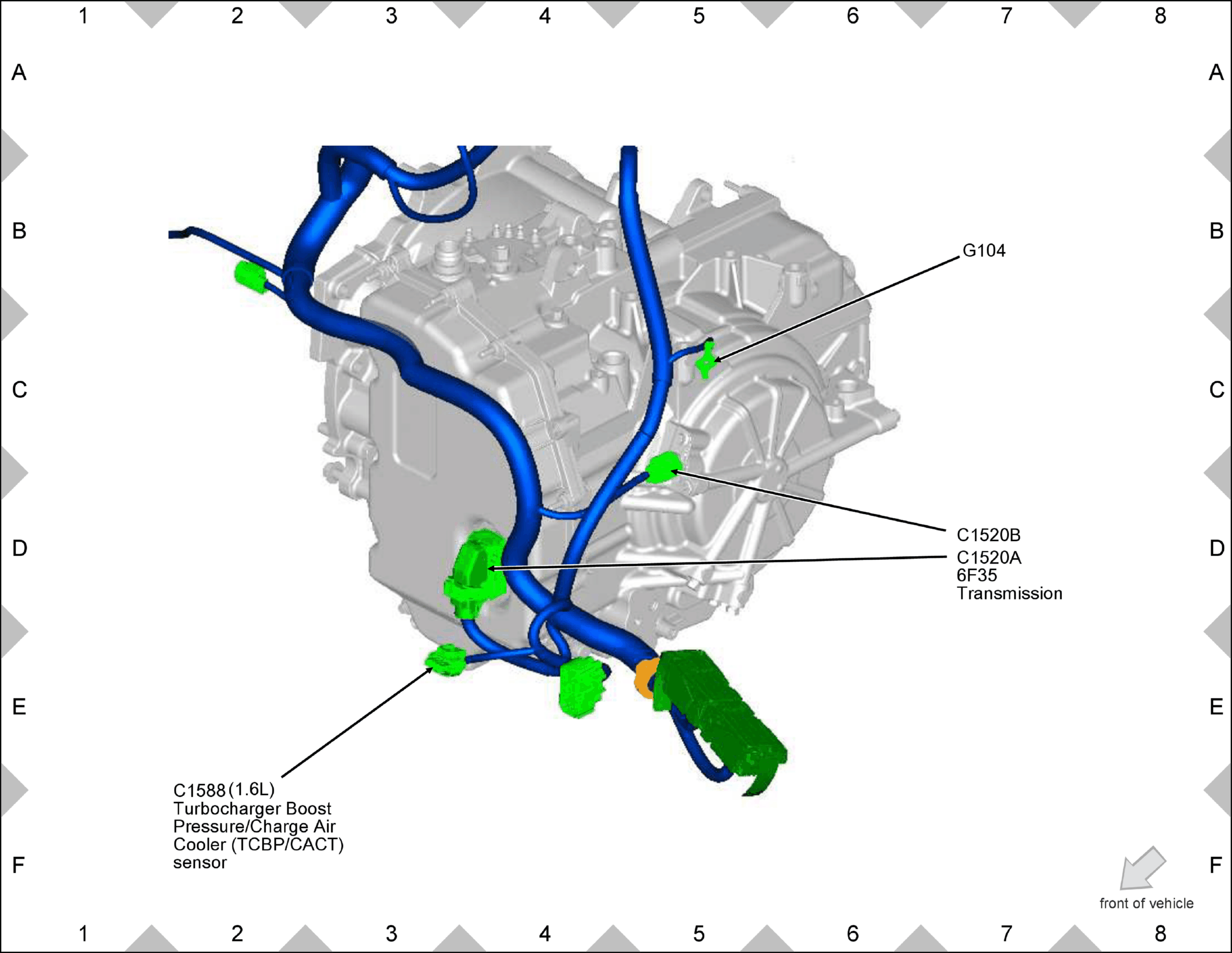

GFDW17764Courtesy of FORD MOTOR COMPANY

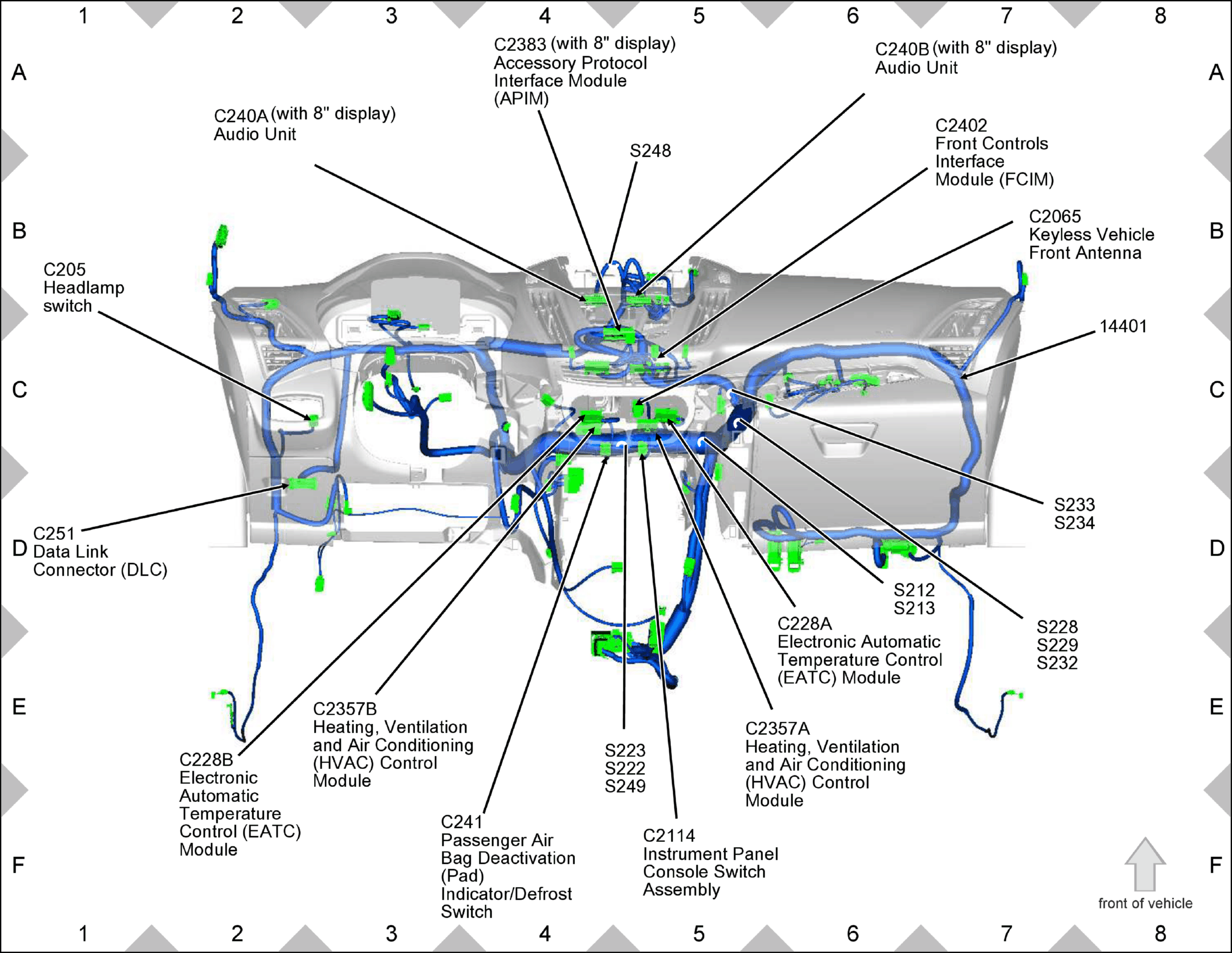

GFDW17765Courtesy of FORD MOTOR COMPANY

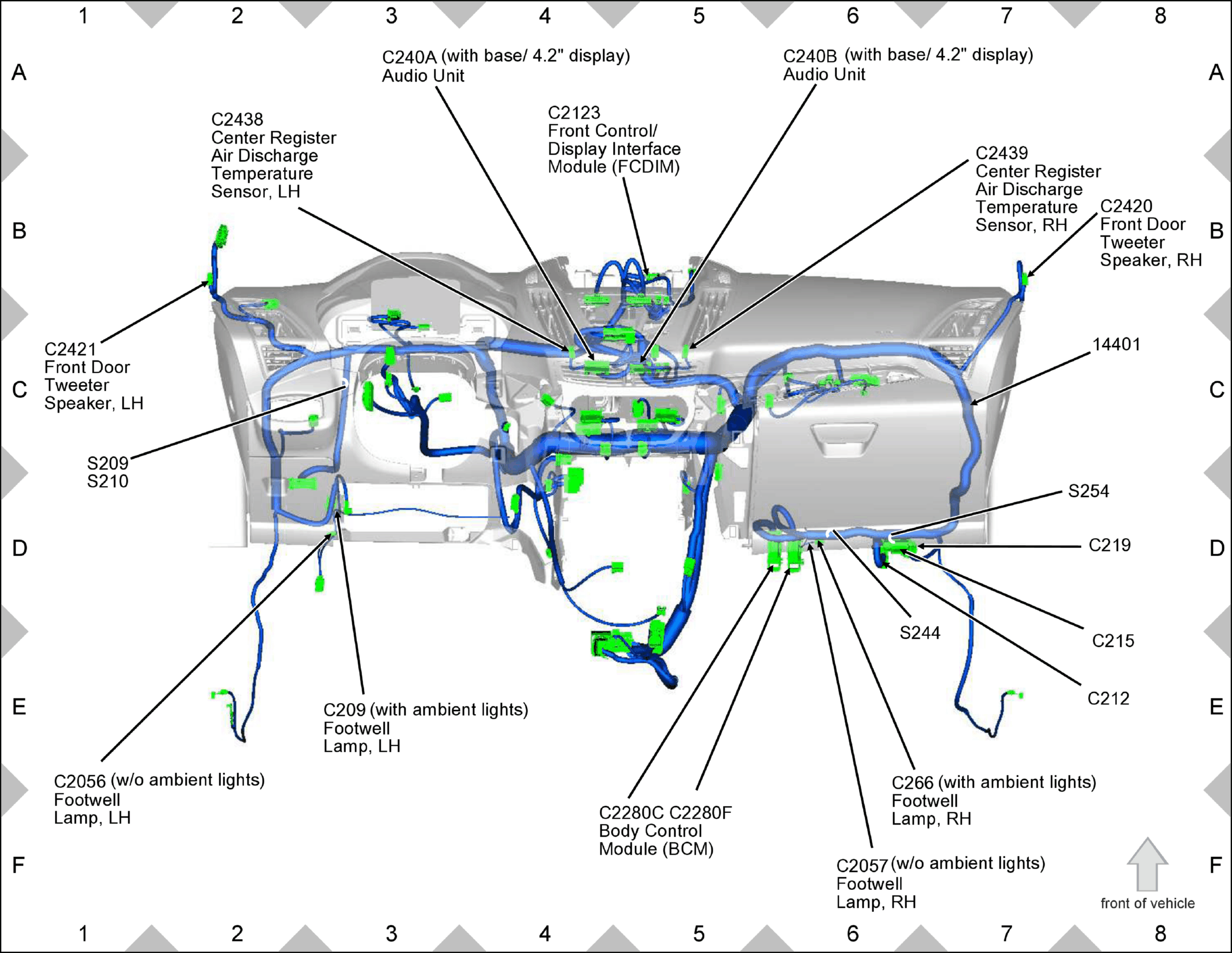

GFDW17766Courtesy of FORD MOTOR COMPANY

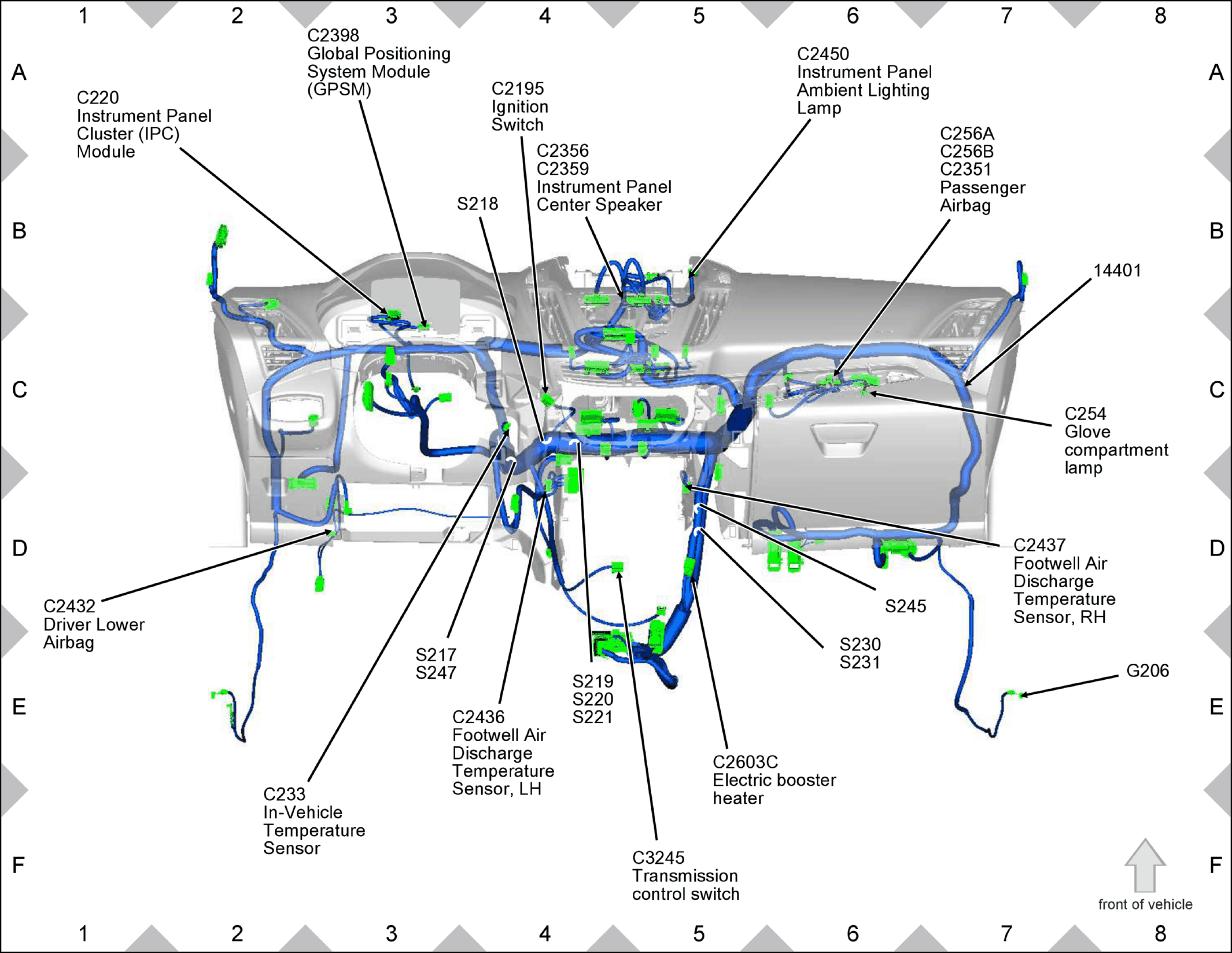

GFDW17767Courtesy of FORD MOTOR COMPANY

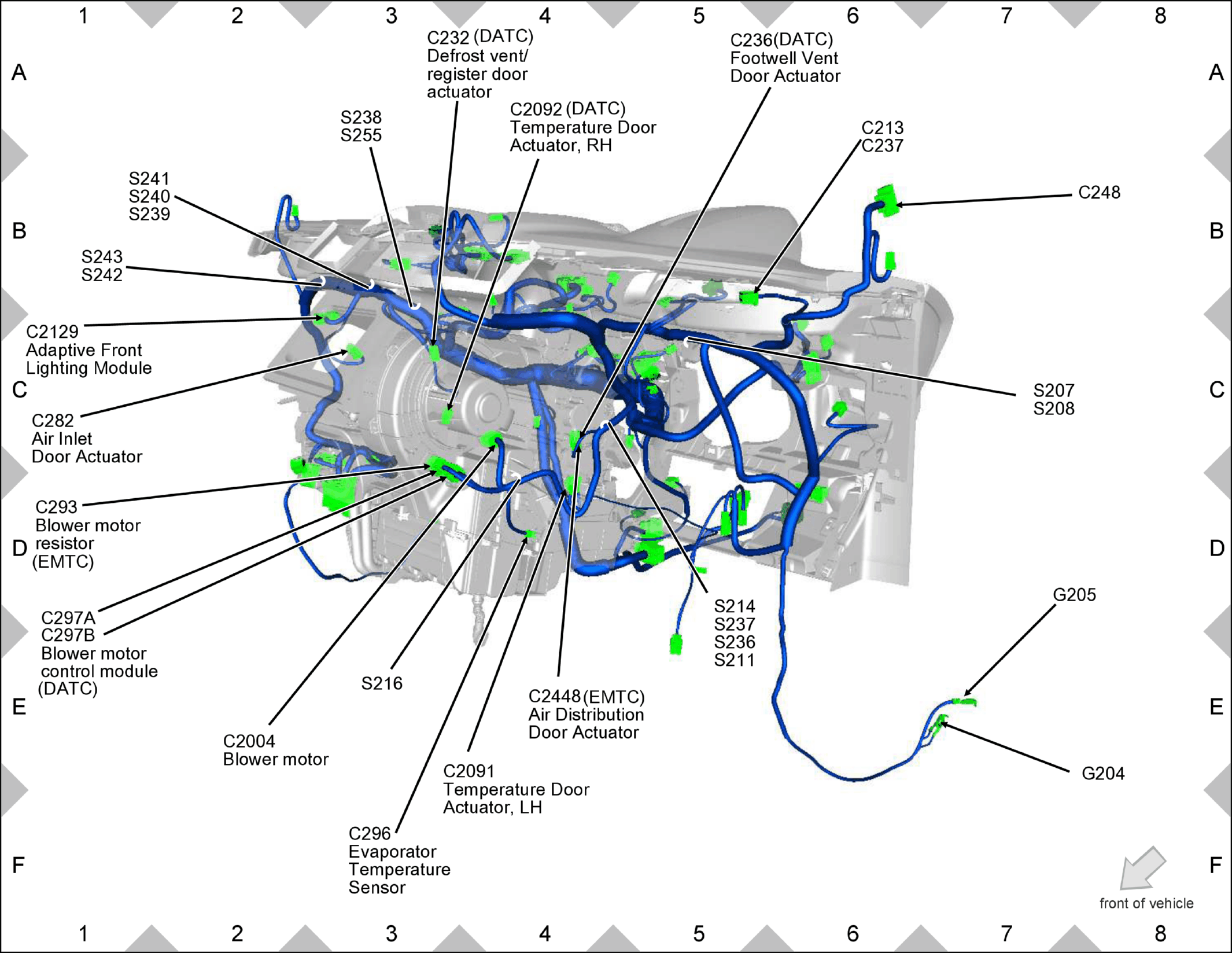

GFDW17768Courtesy of FORD MOTOR COMPANY

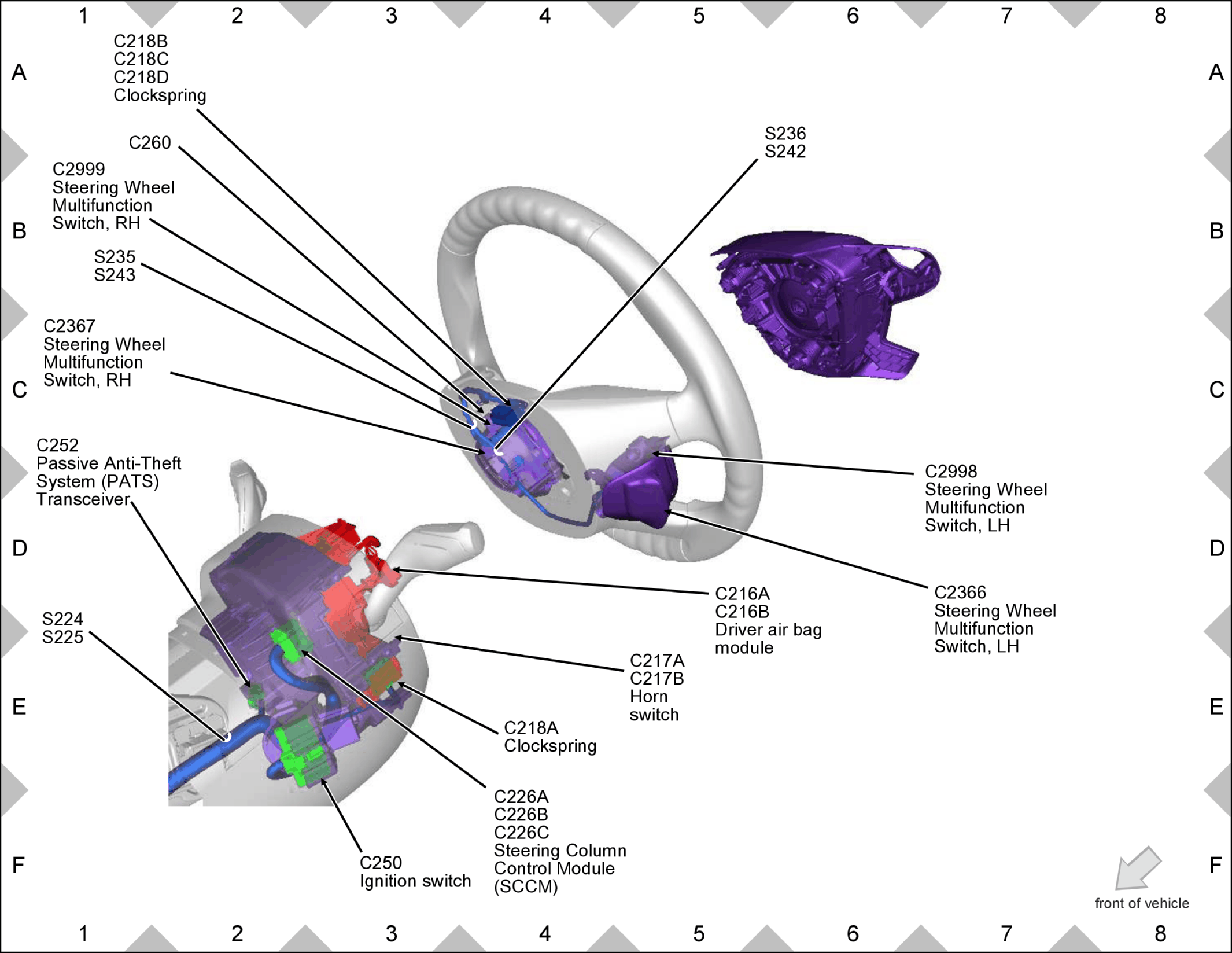

GFDW17769Courtesy of FORD MOTOR COMPANY

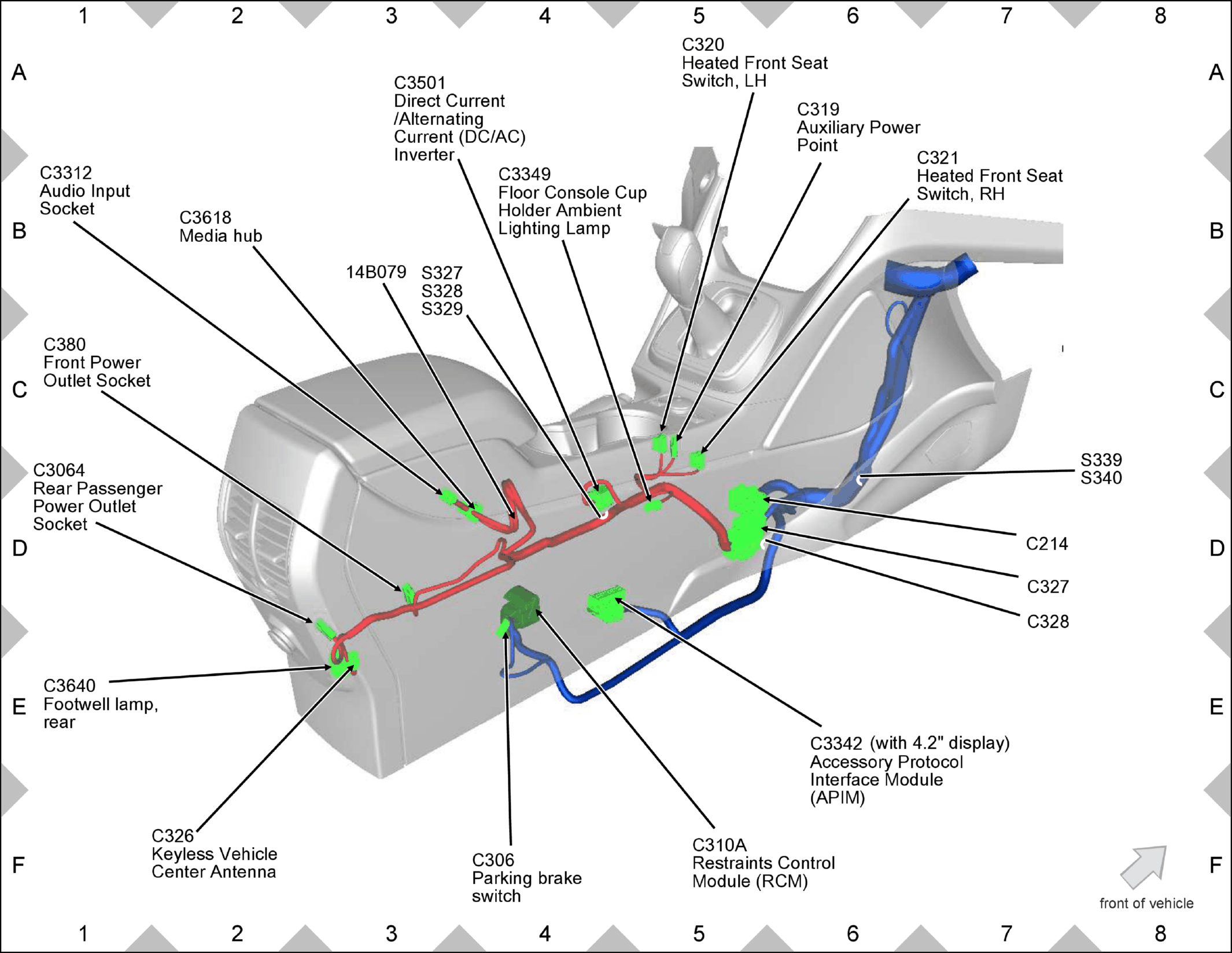

GFDW17770Courtesy of FORD MOTOR COMPANY

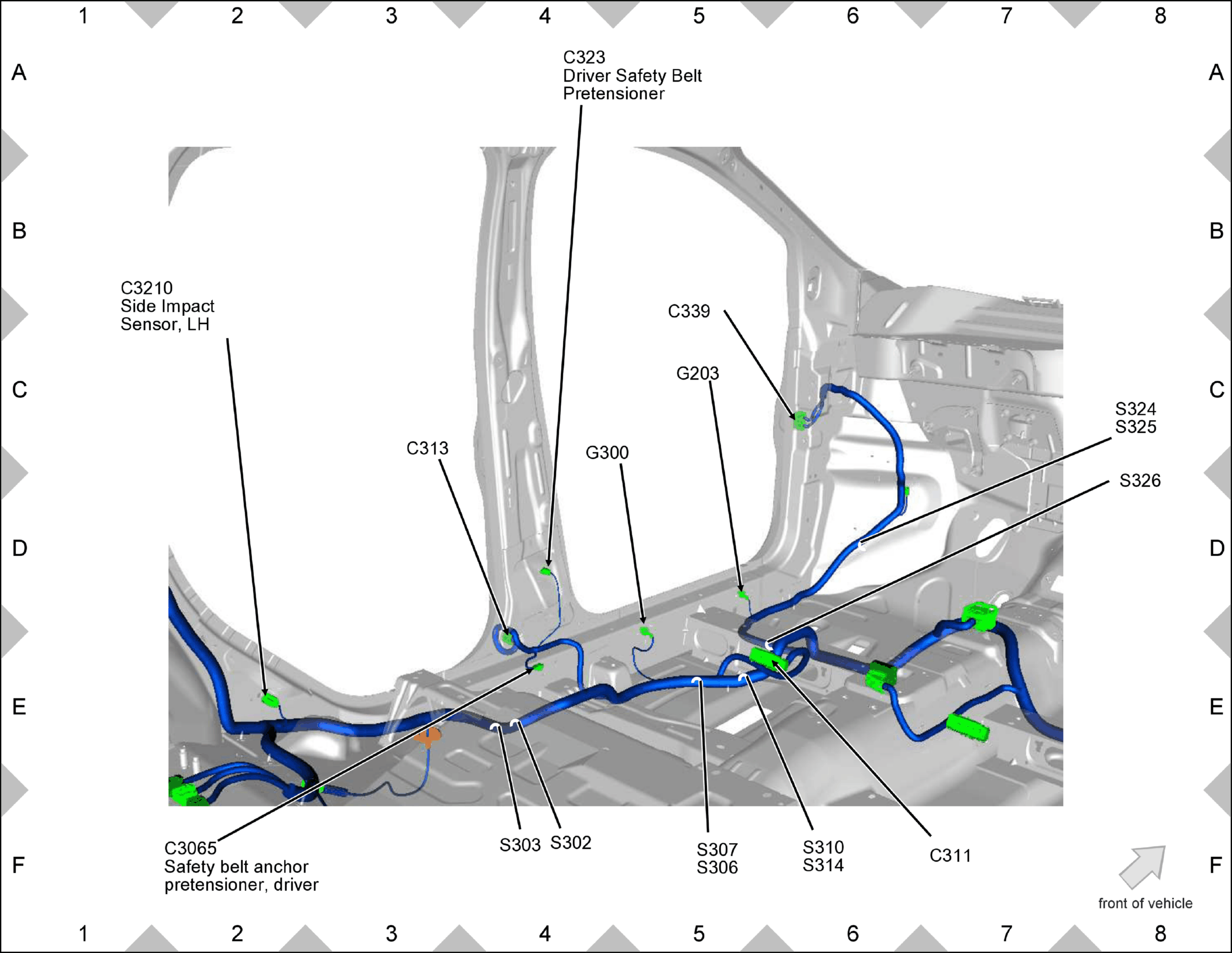

GFDW17771Courtesy of FORD MOTOR COMPANY

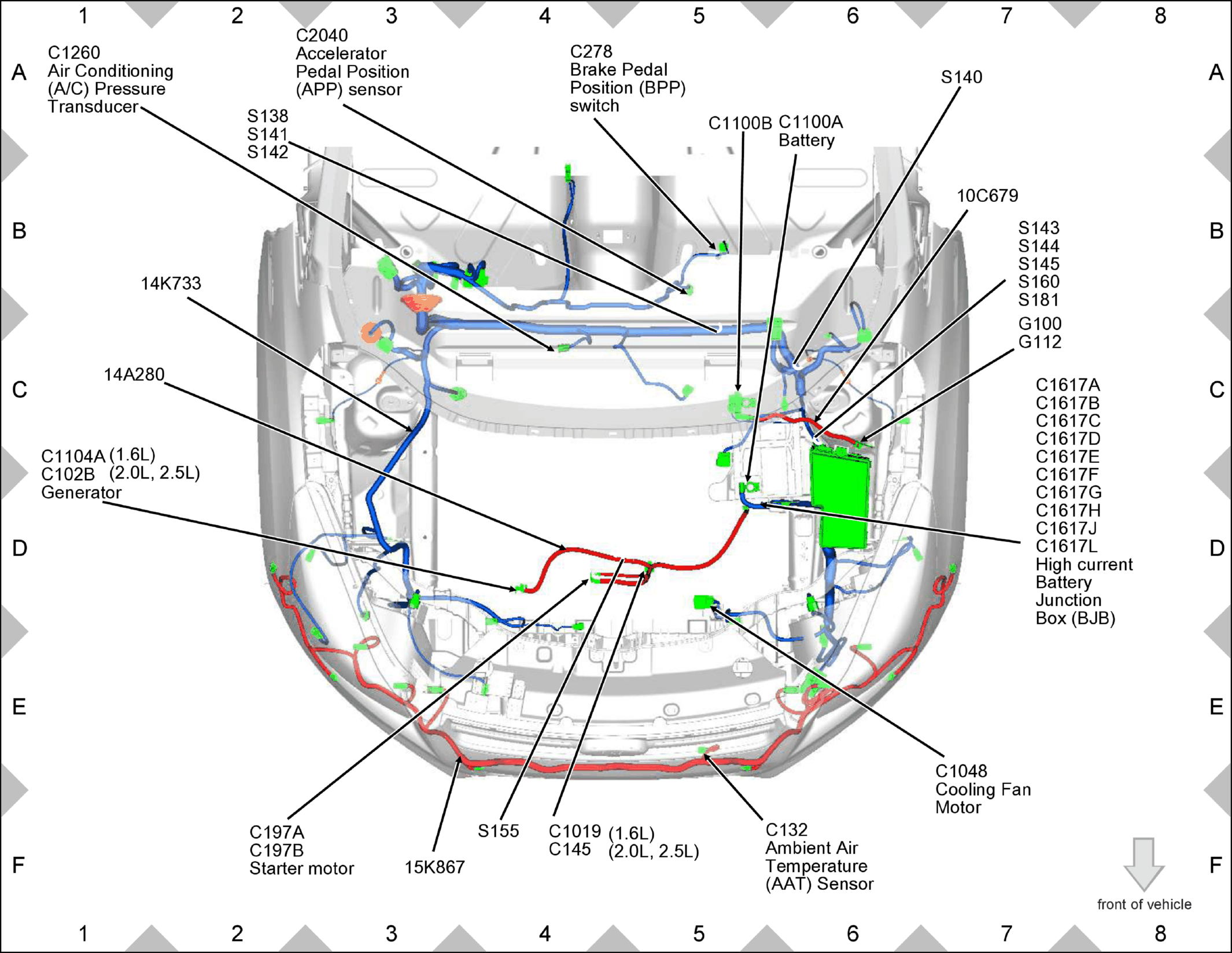

GFDW17772Courtesy of FORD MOTOR COMPANY

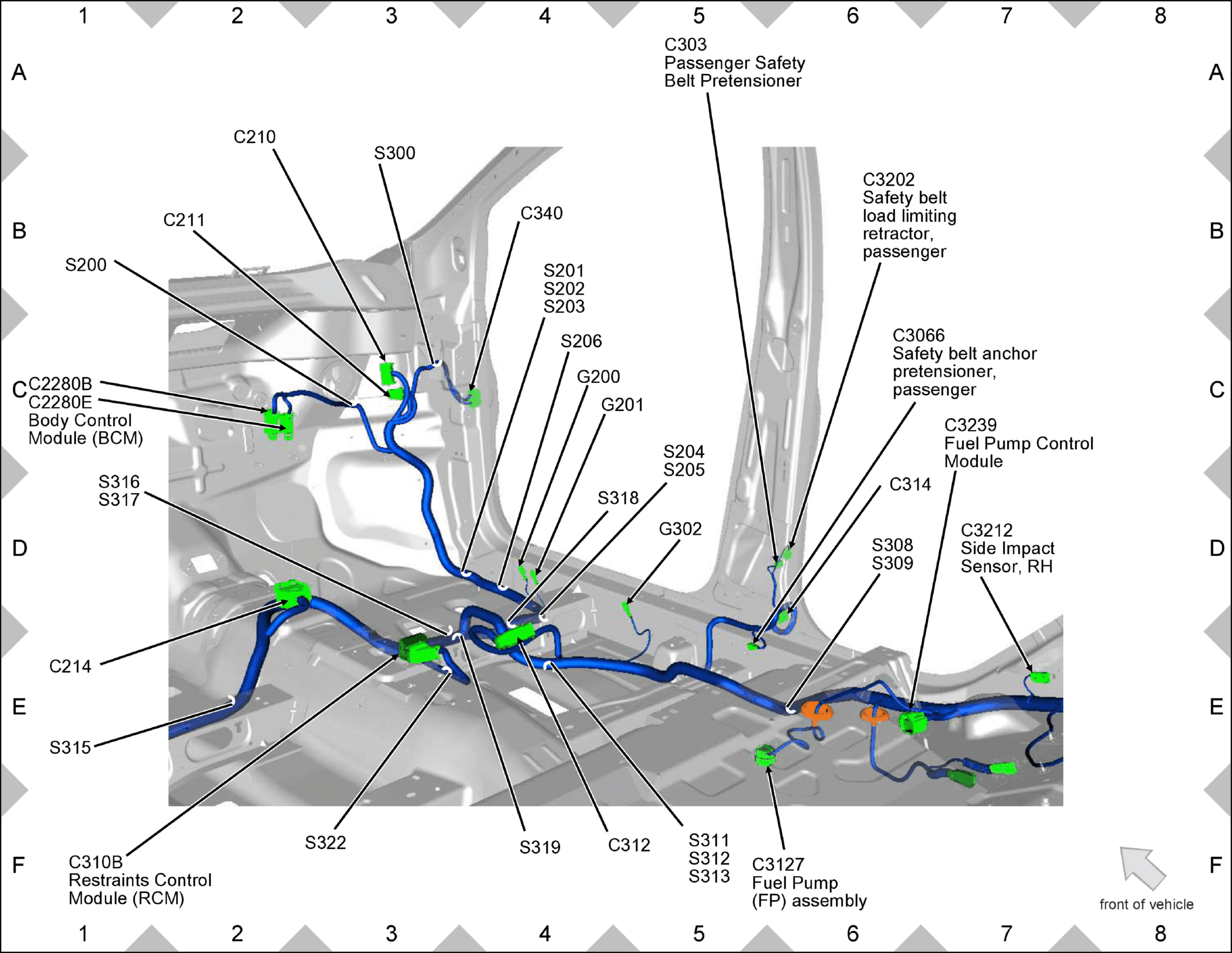

GFDW17773Courtesy of FORD MOTOR COMPANY

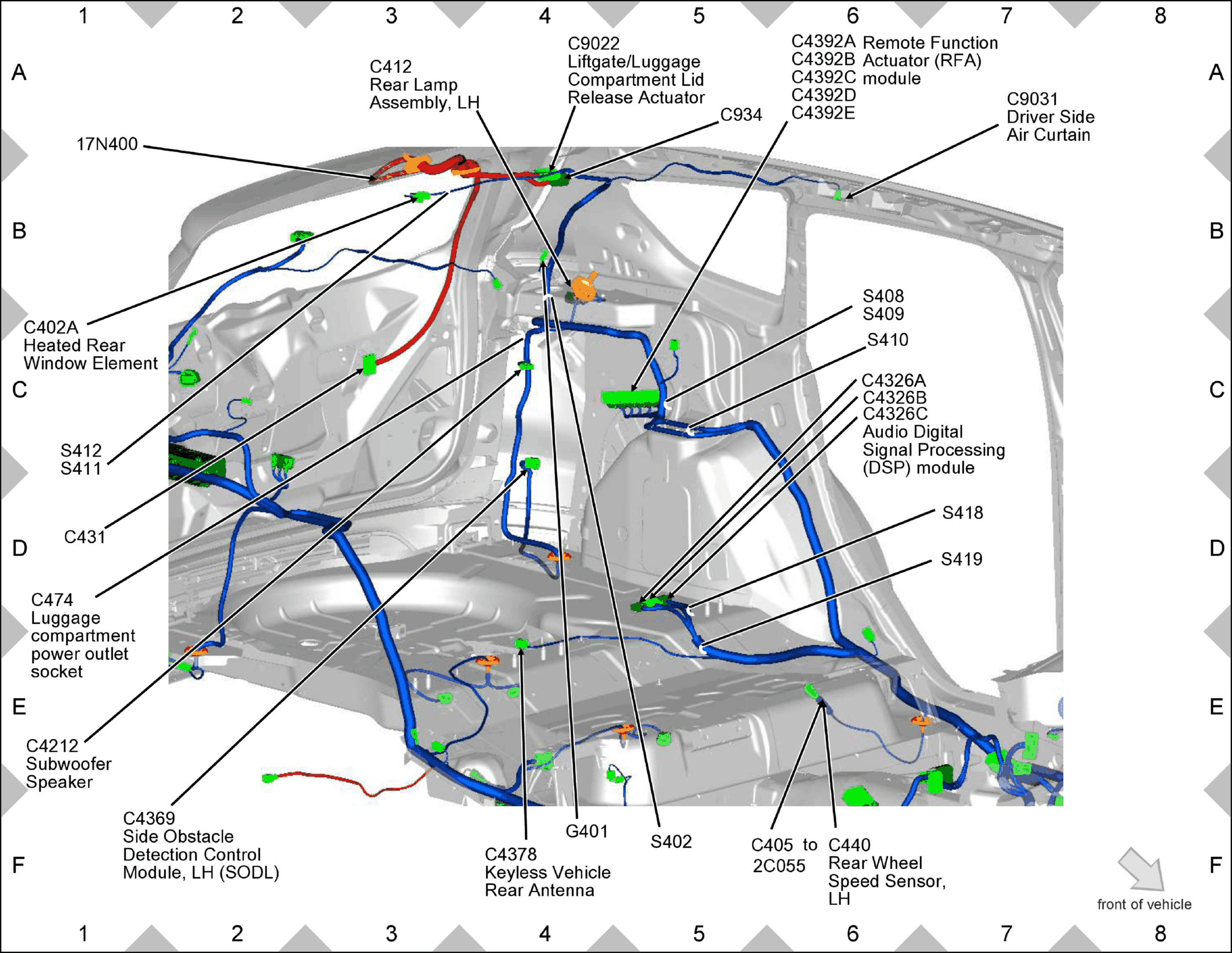

GFDW17774Courtesy of FORD MOTOR COMPANY

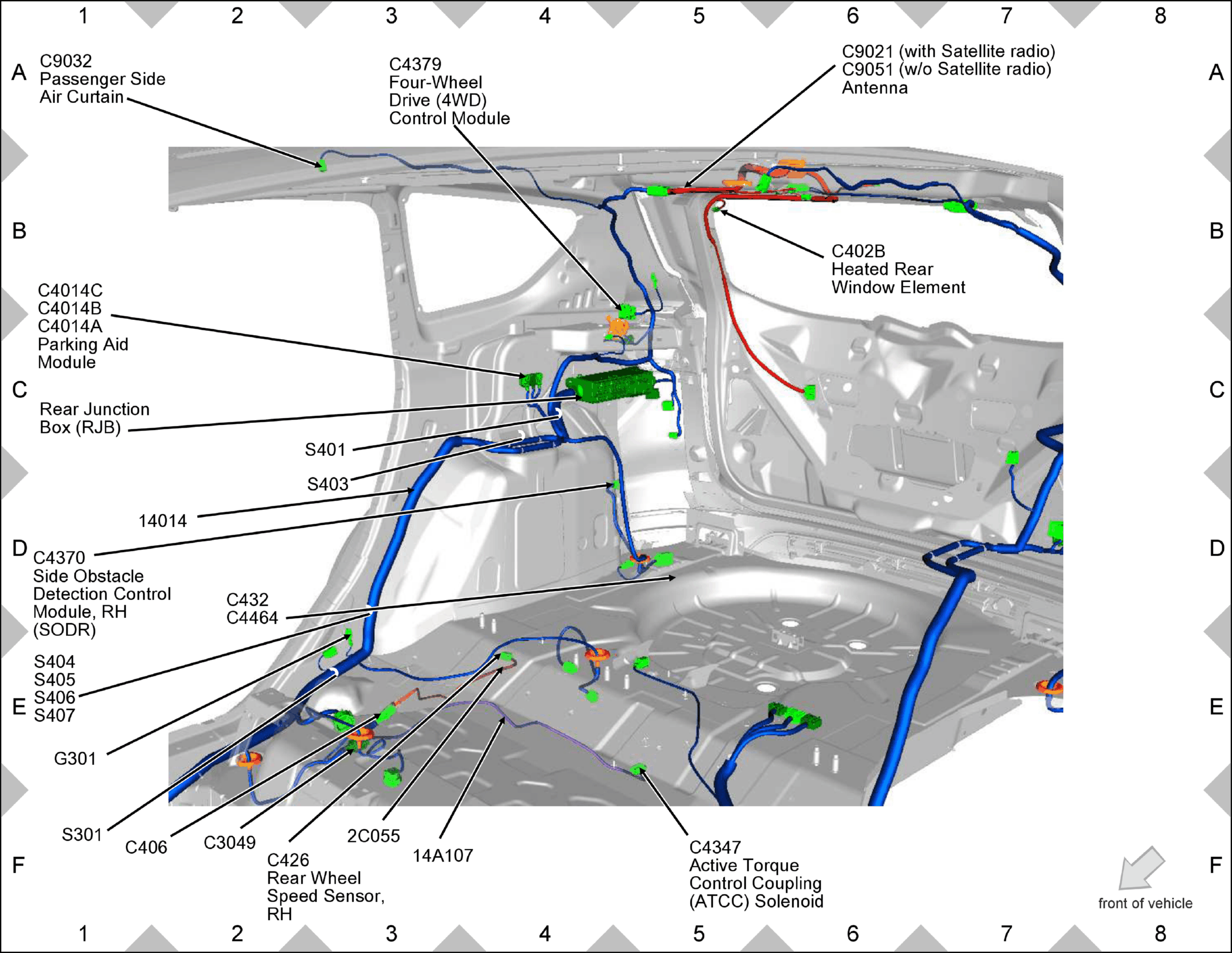

GFDW17775Courtesy of FORD MOTOR COMPANY

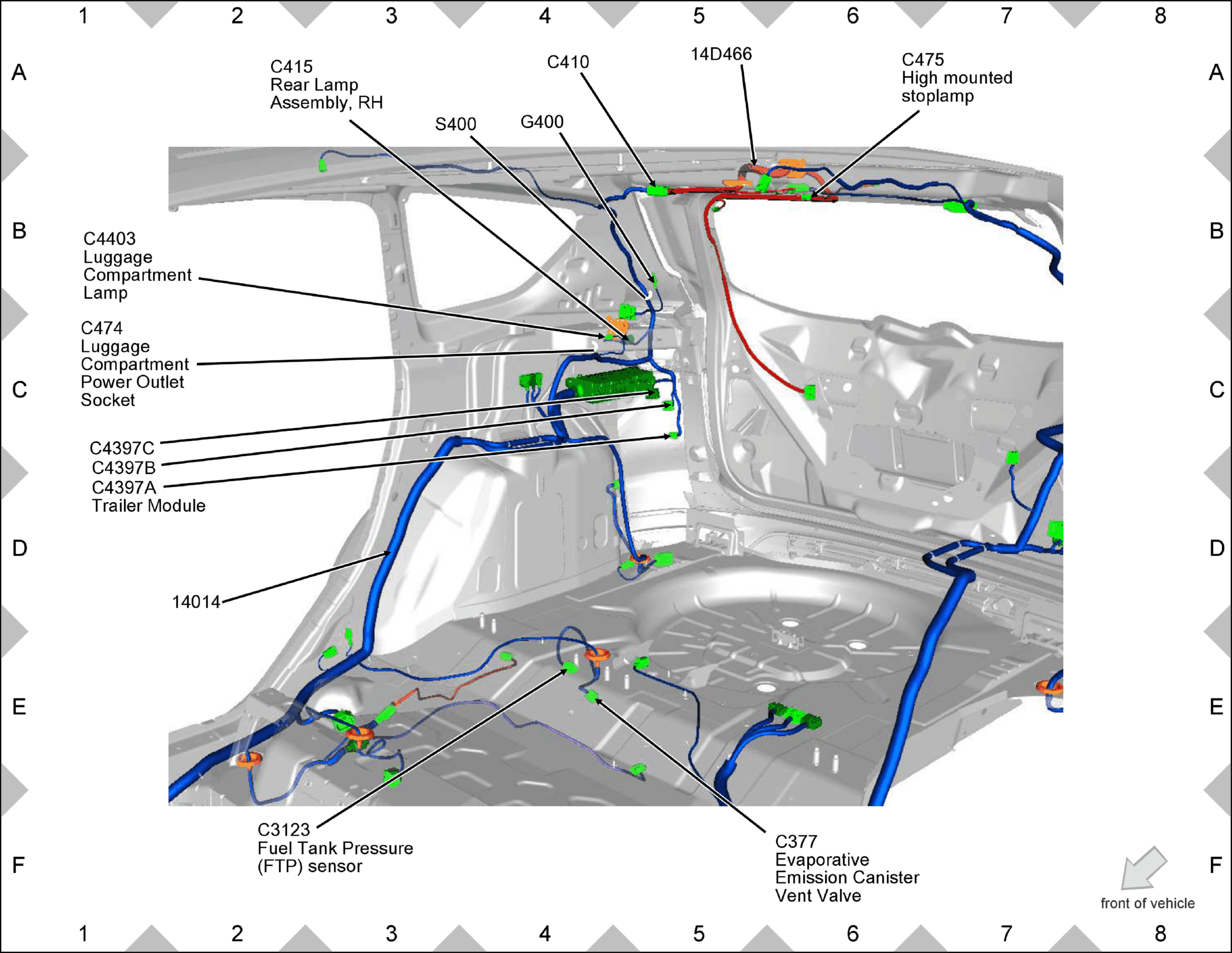

GFDW17776Courtesy of FORD MOTOR COMPANY

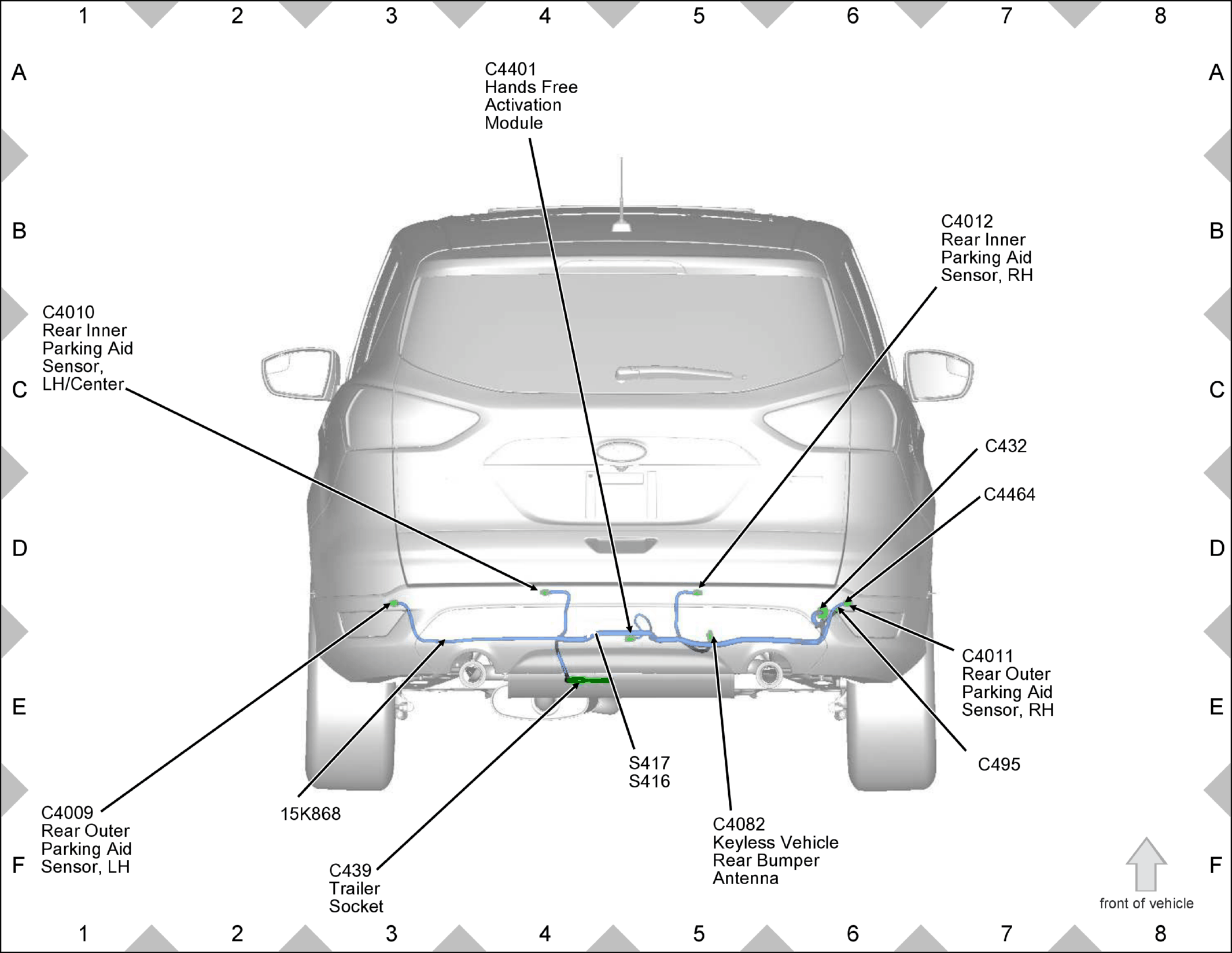

GFDW17777Courtesy of FORD MOTOR COMPANY

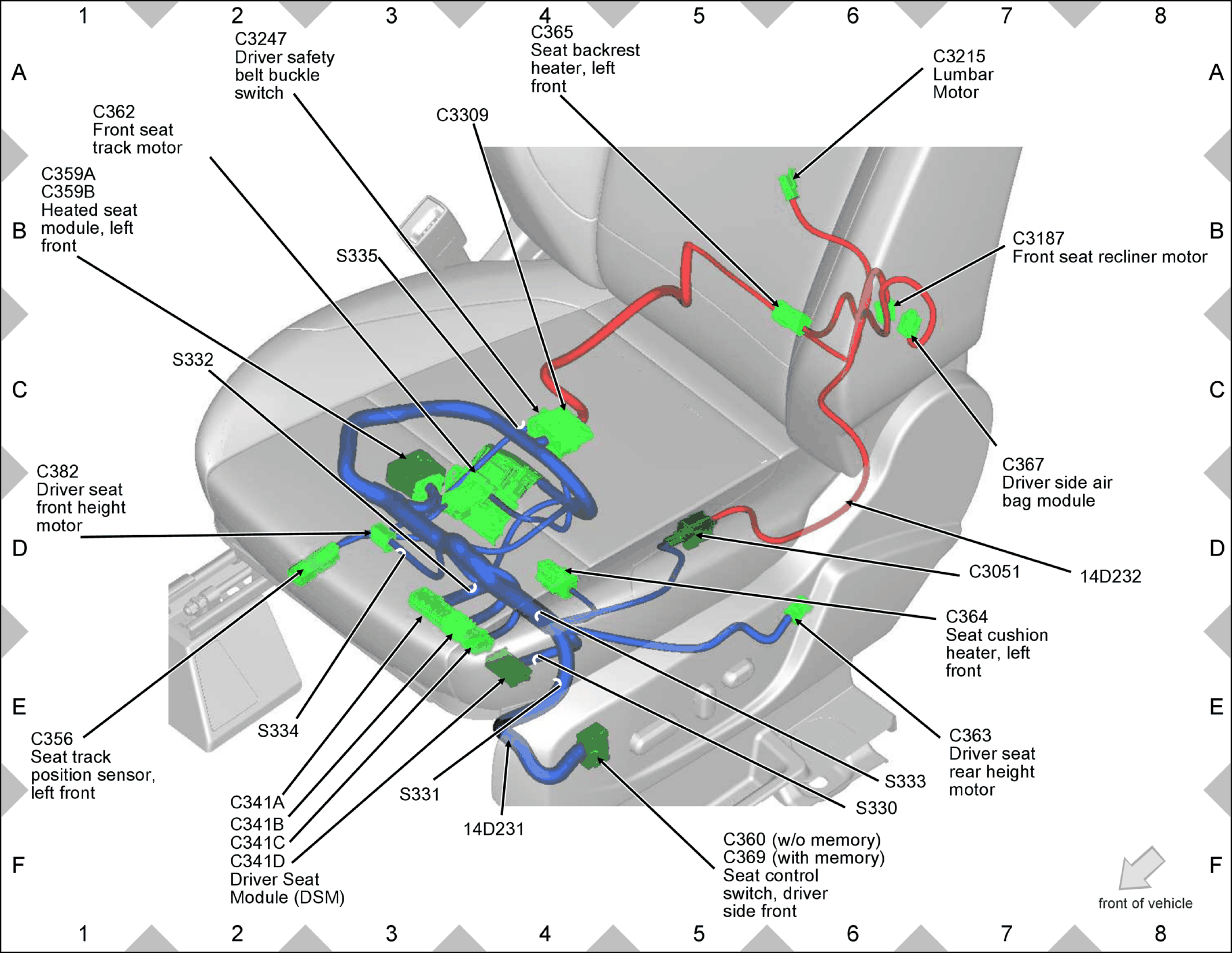

GFDW17778Courtesy of FORD MOTOR COMPANY

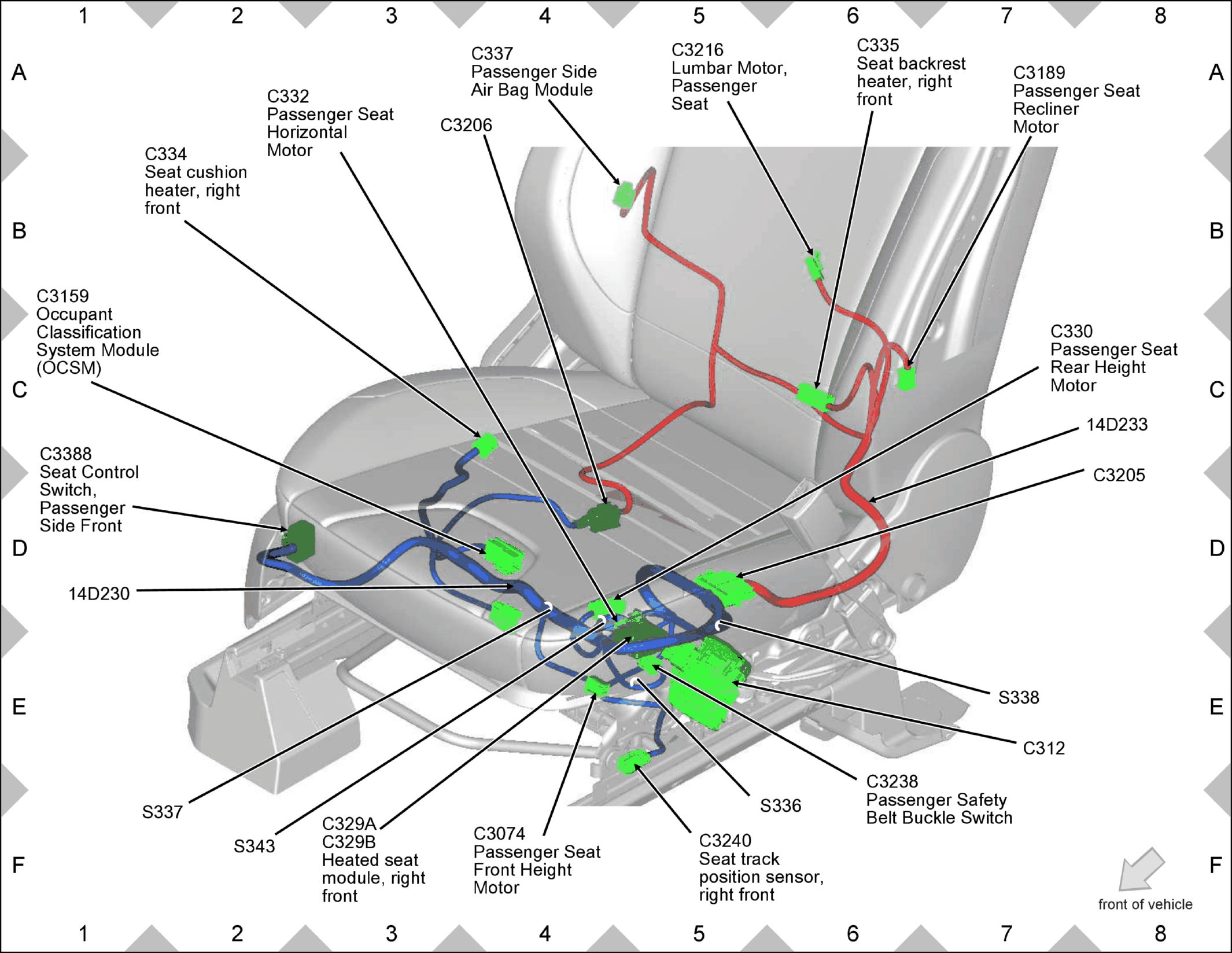

GFDW17779Courtesy of FORD MOTOR COMPANY

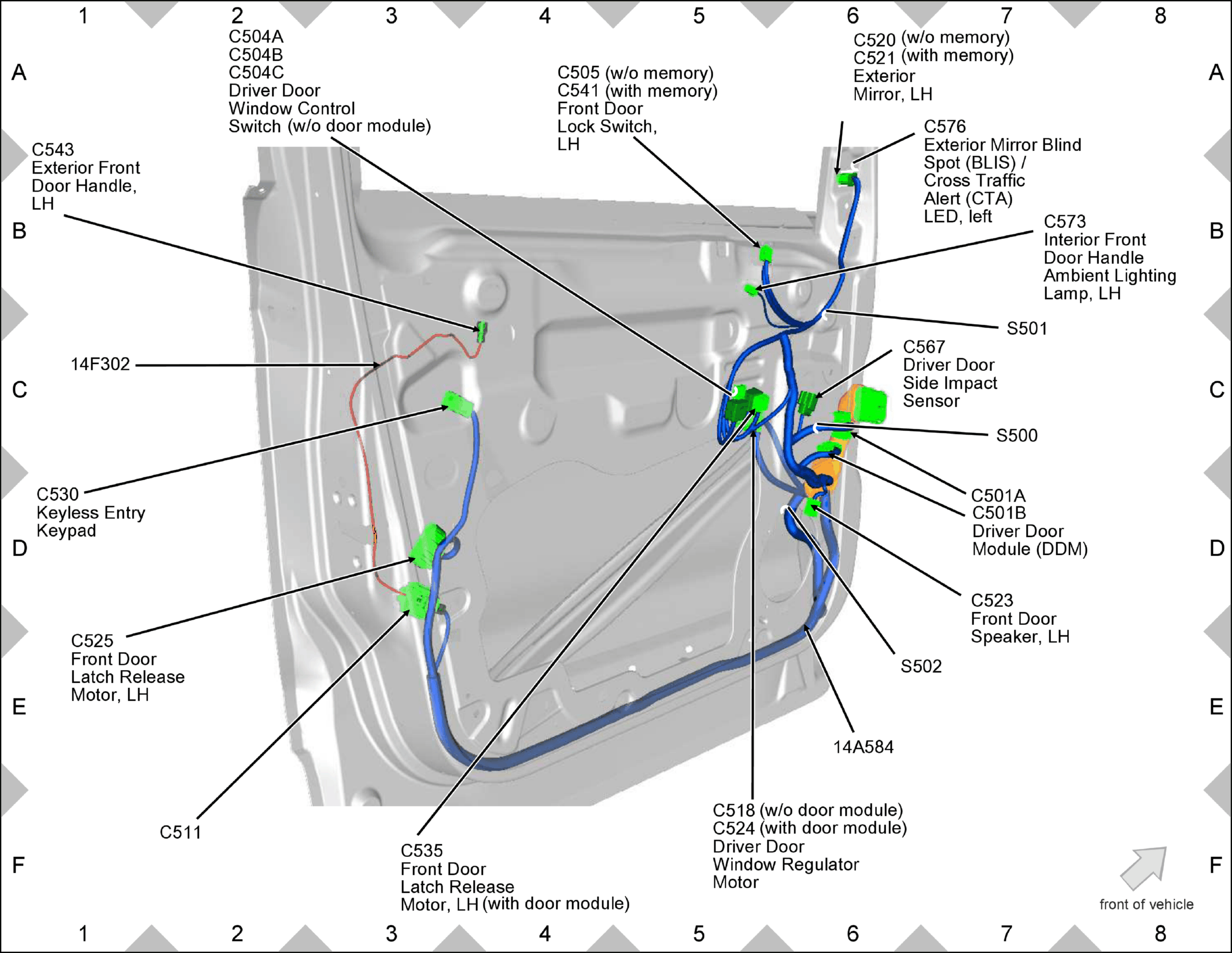

GFDW17780Courtesy of FORD MOTOR COMPANY

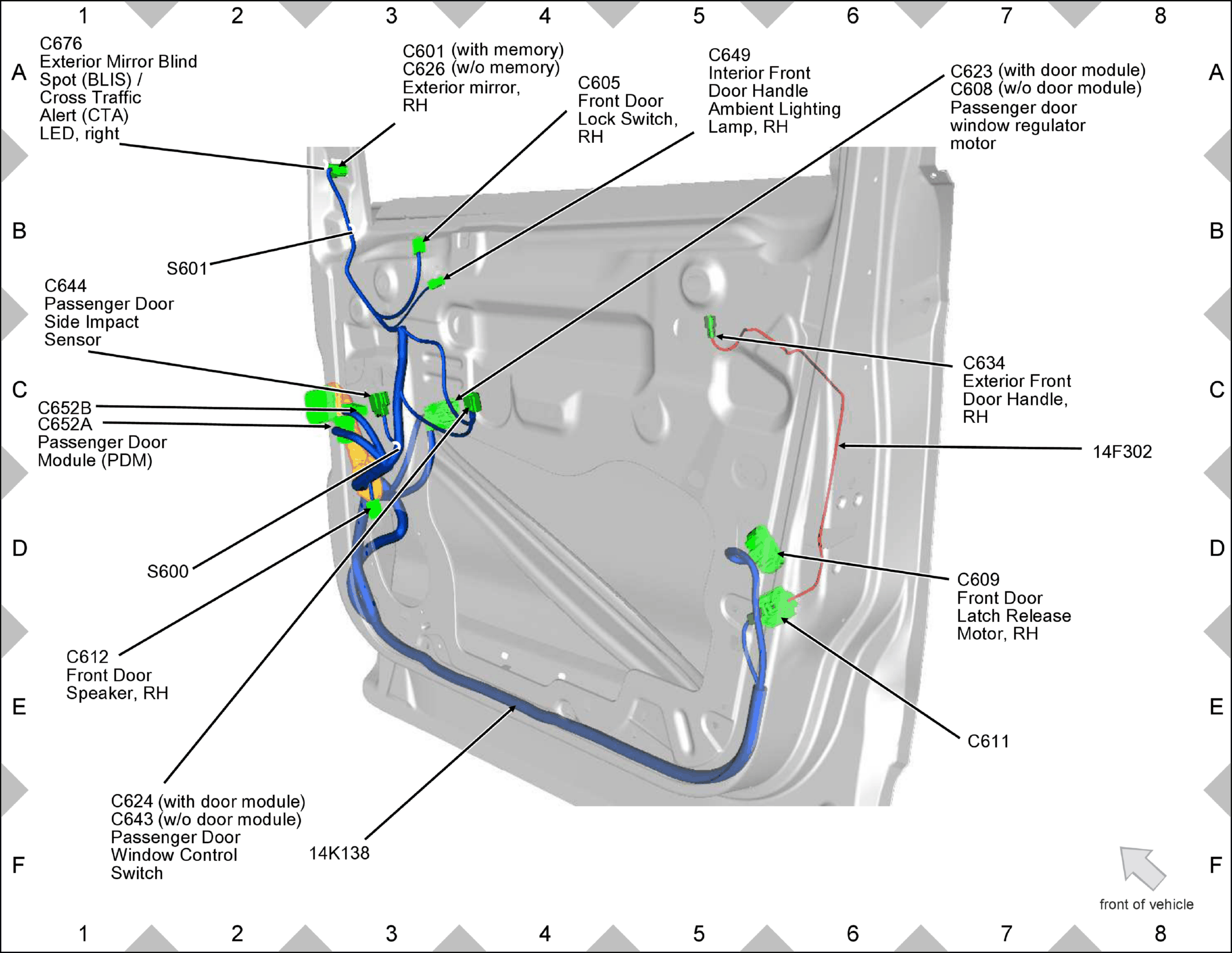

GFDW17781Courtesy of FORD MOTOR COMPANY

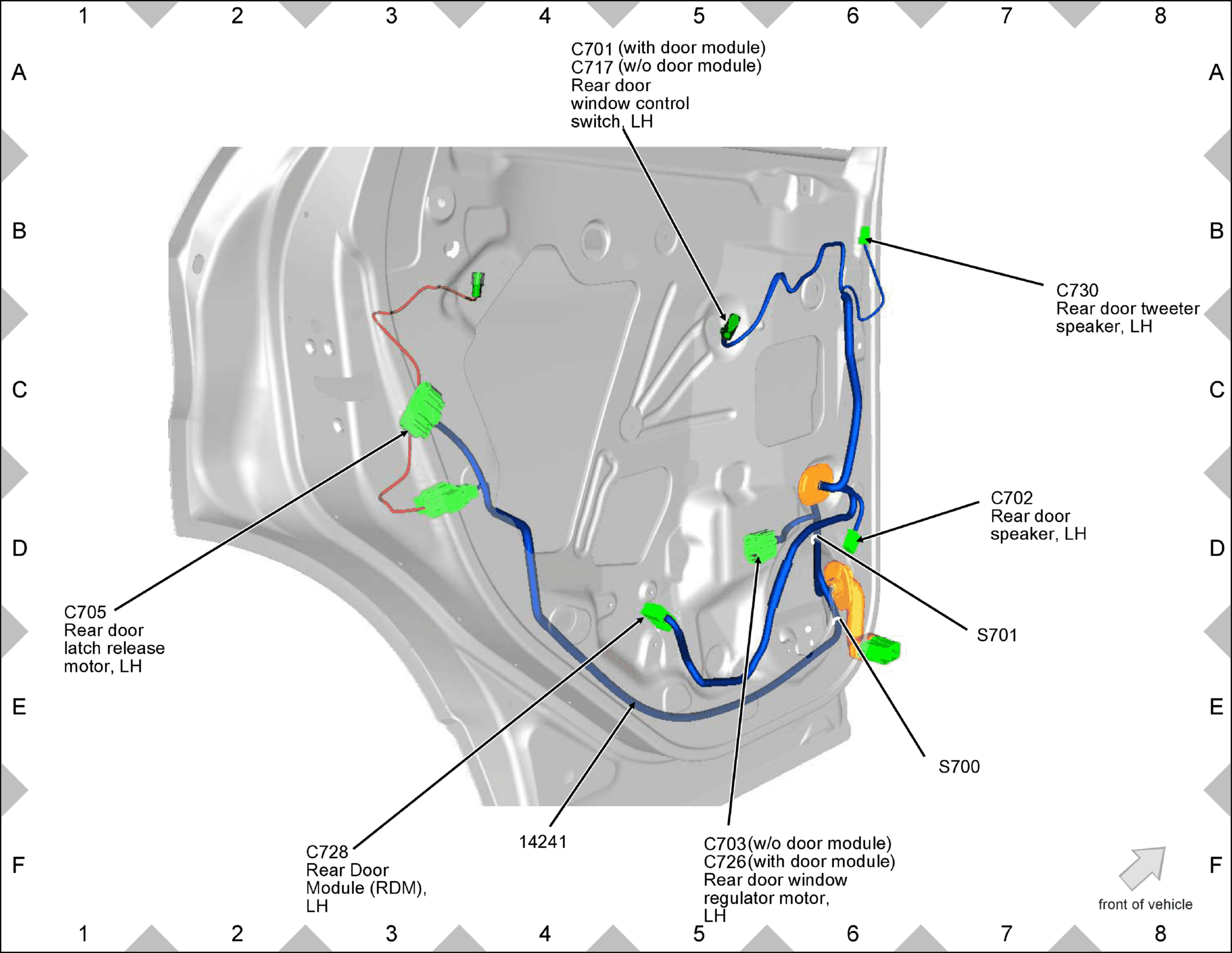

GFDW17782Courtesy of FORD MOTOR COMPANY

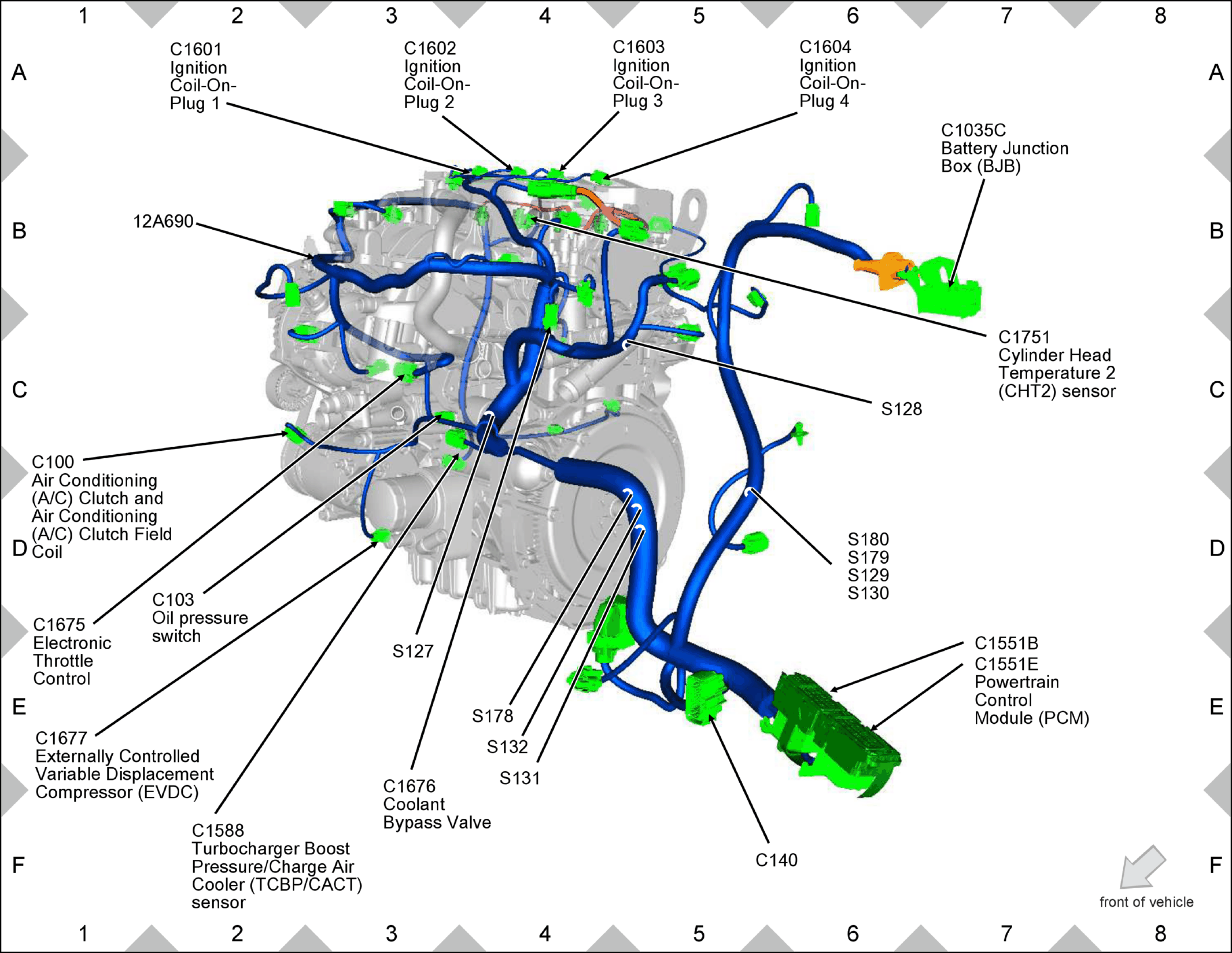

GFDW17783Courtesy of FORD MOTOR COMPANY

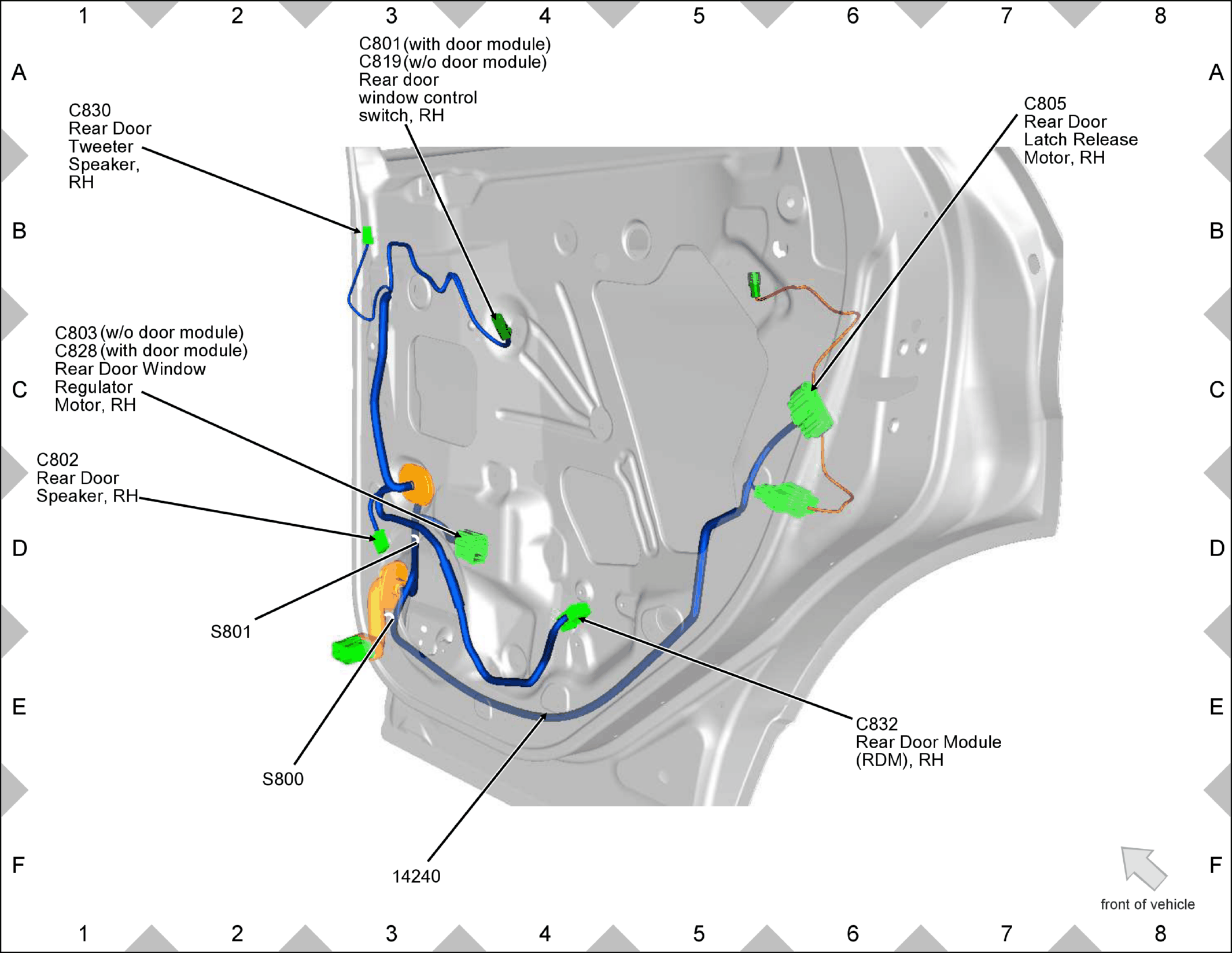

GFDW17784Courtesy of FORD MOTOR COMPANY

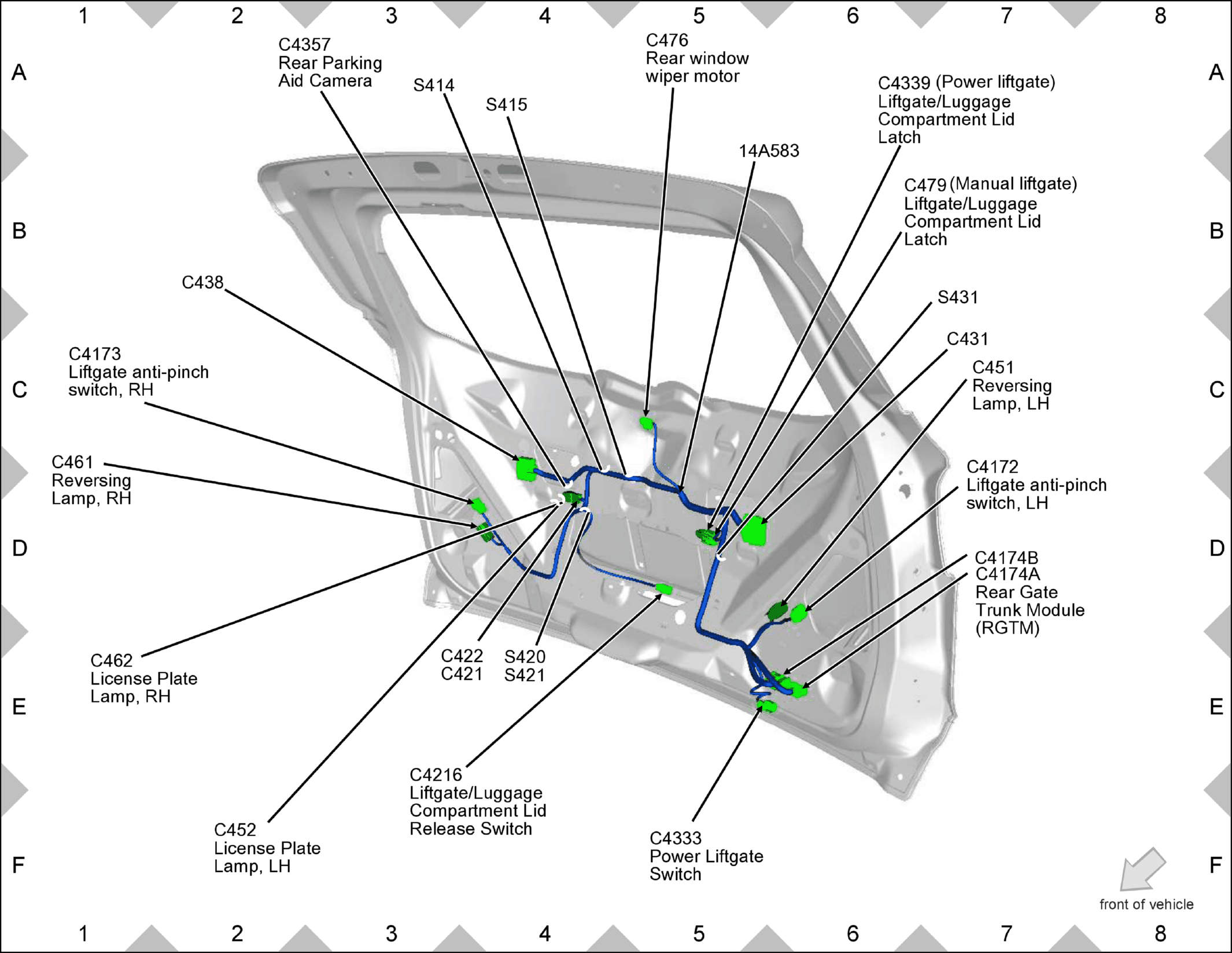

GFDW17785Courtesy of FORD MOTOR COMPANY

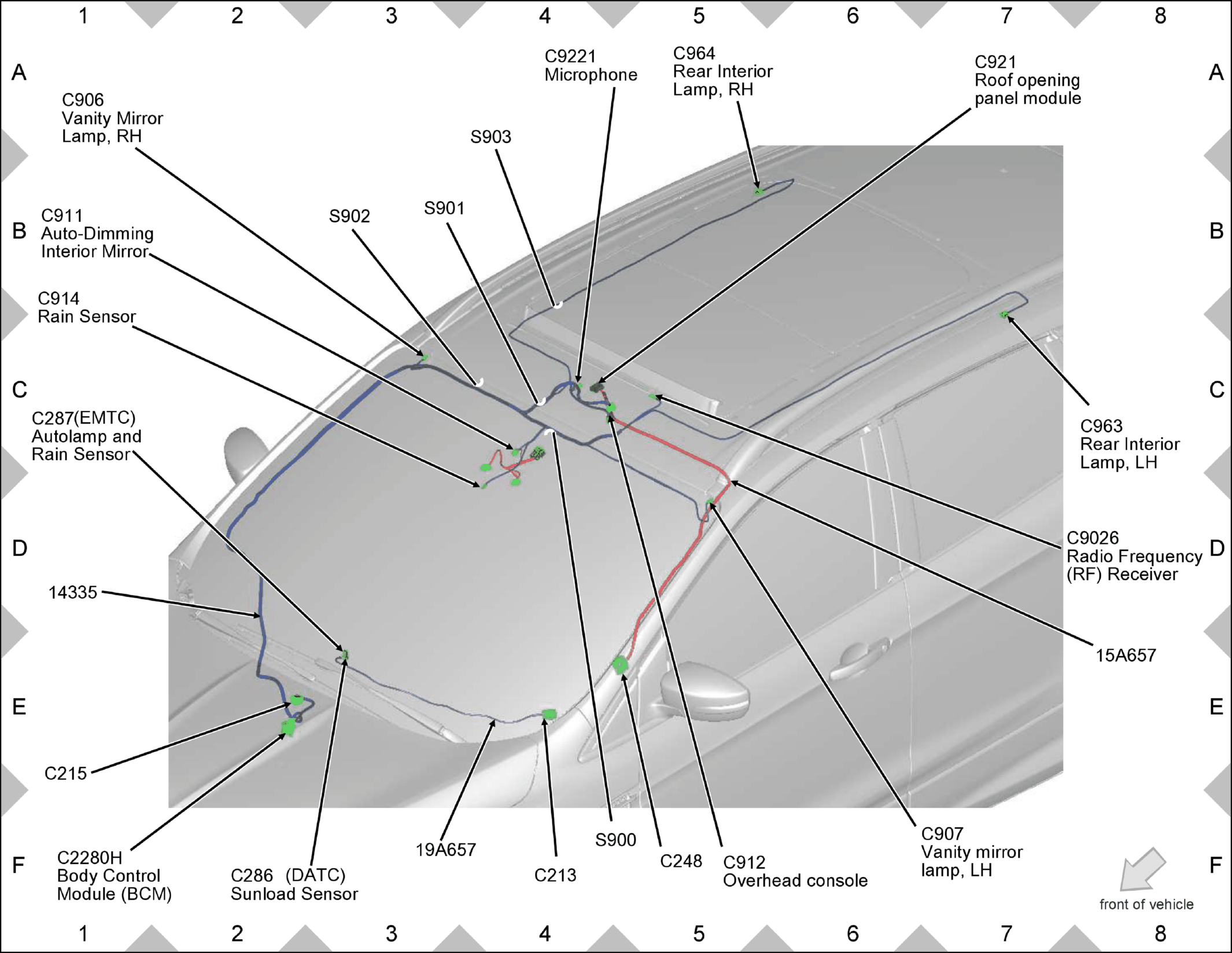

GFDW17786Courtesy of FORD MOTOR COMPANY

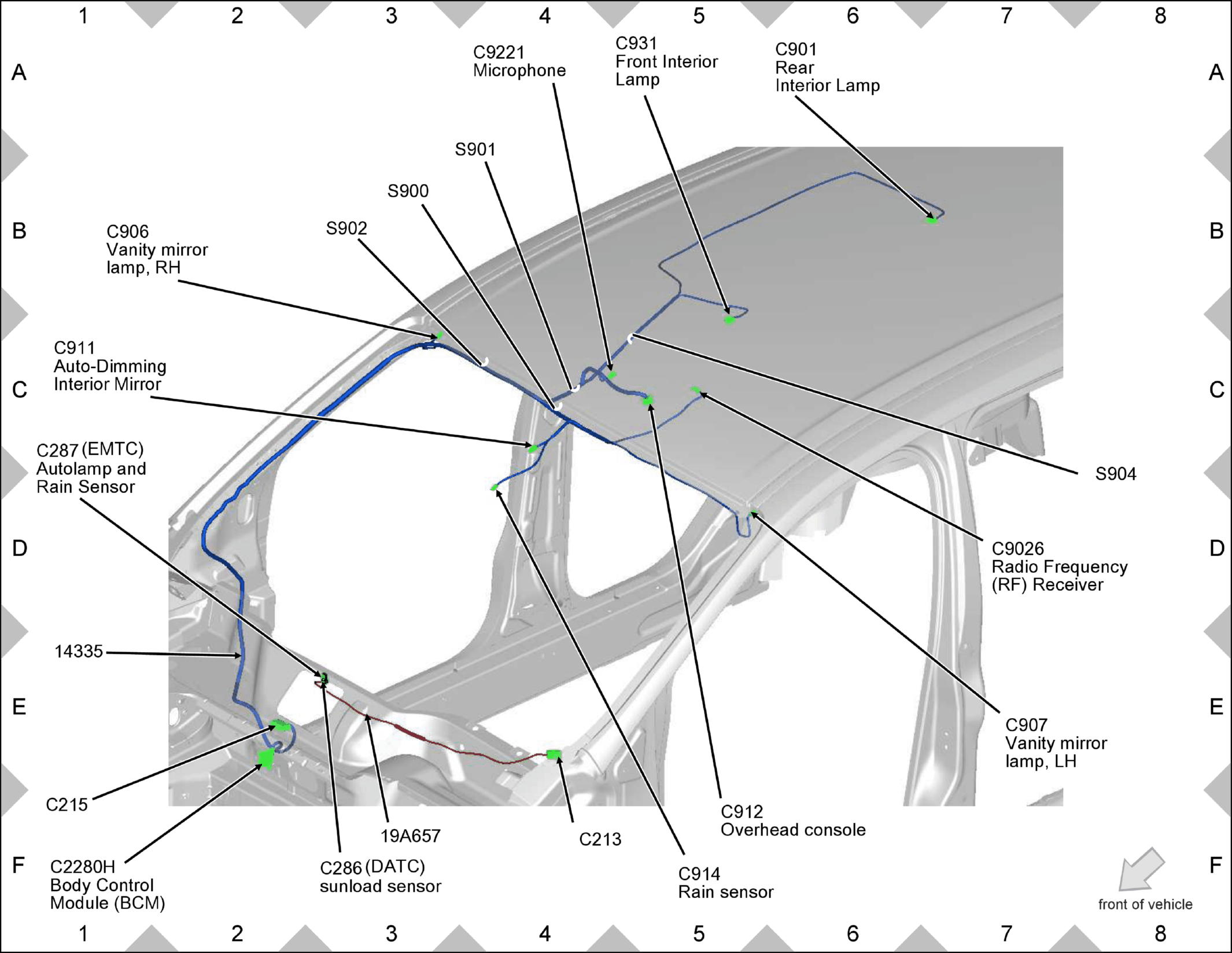

GFDW17787Courtesy of FORD MOTOR COMPANY

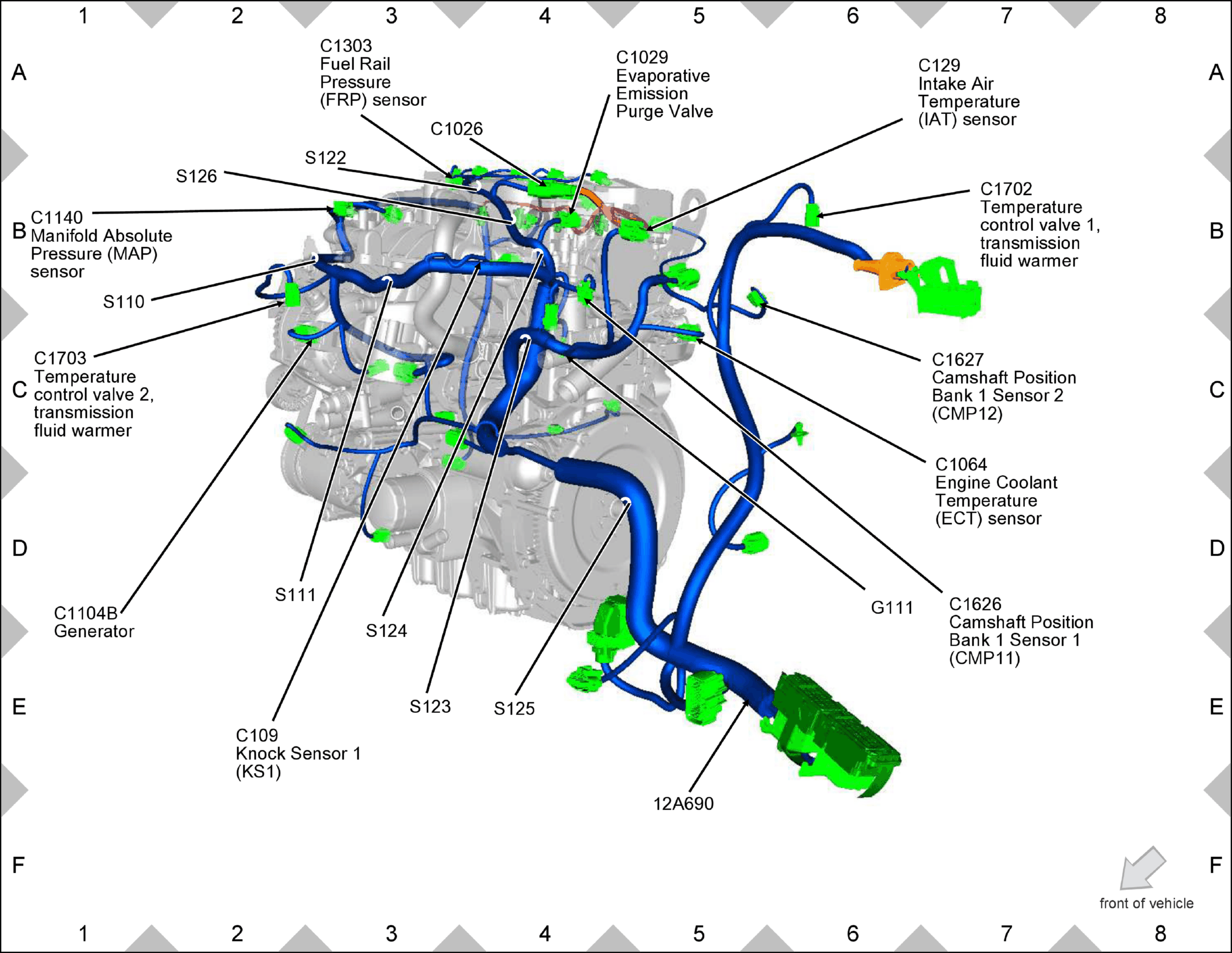

GFDW17788Courtesy of FORD MOTOR COMPANY

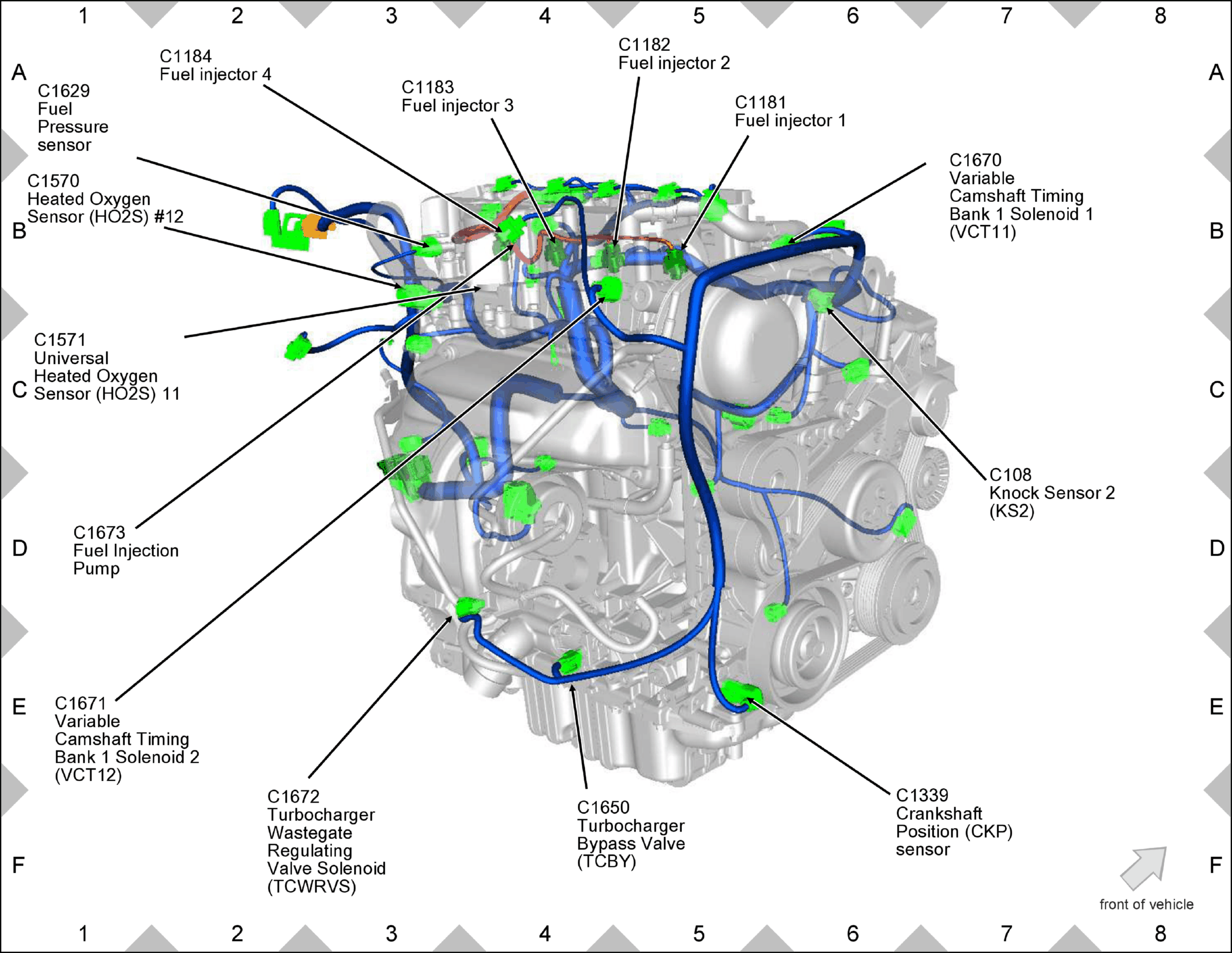

GFDW17789Courtesy of FORD MOTOR COMPANY

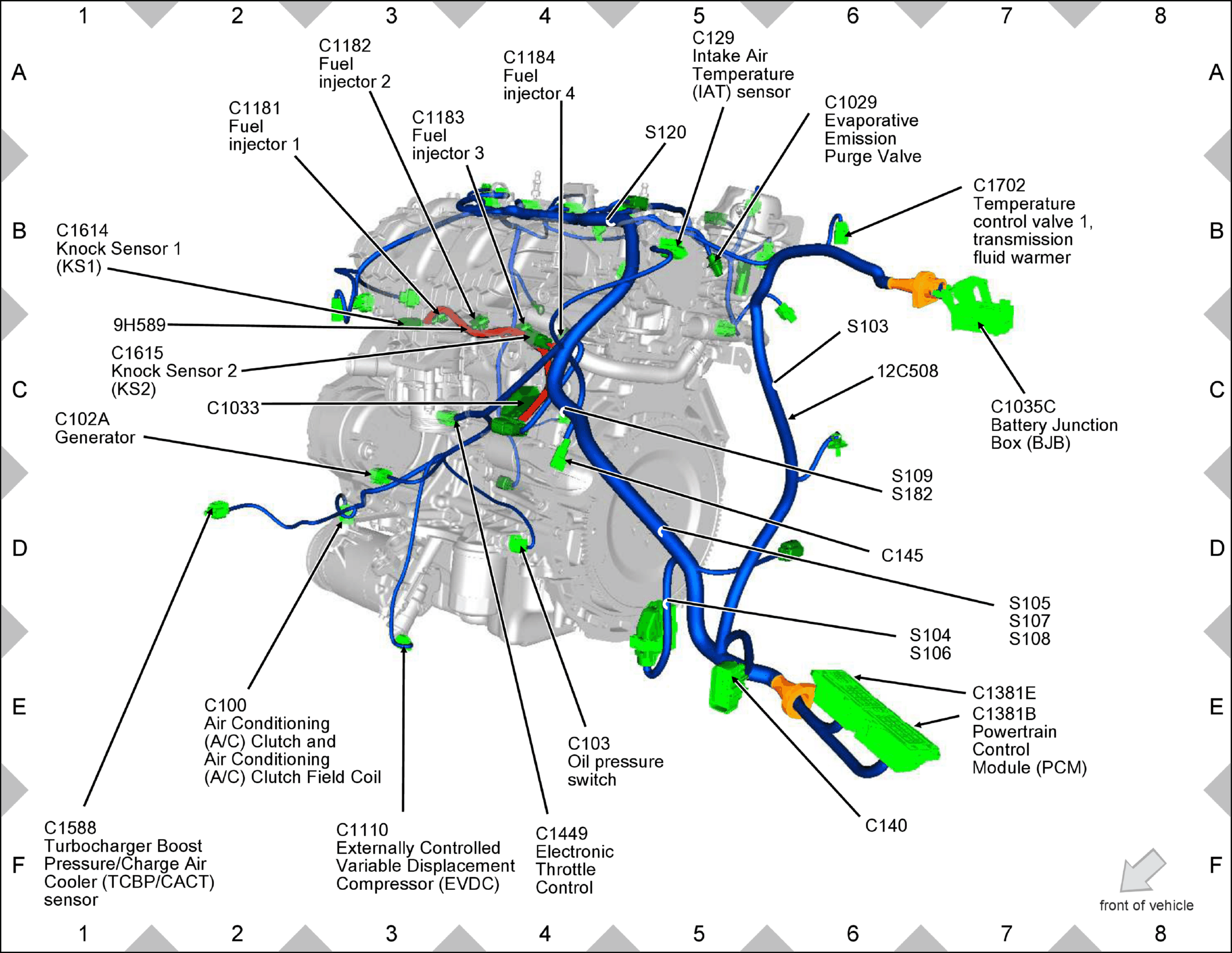

GFDW17790Courtesy of FORD MOTOR COMPANY

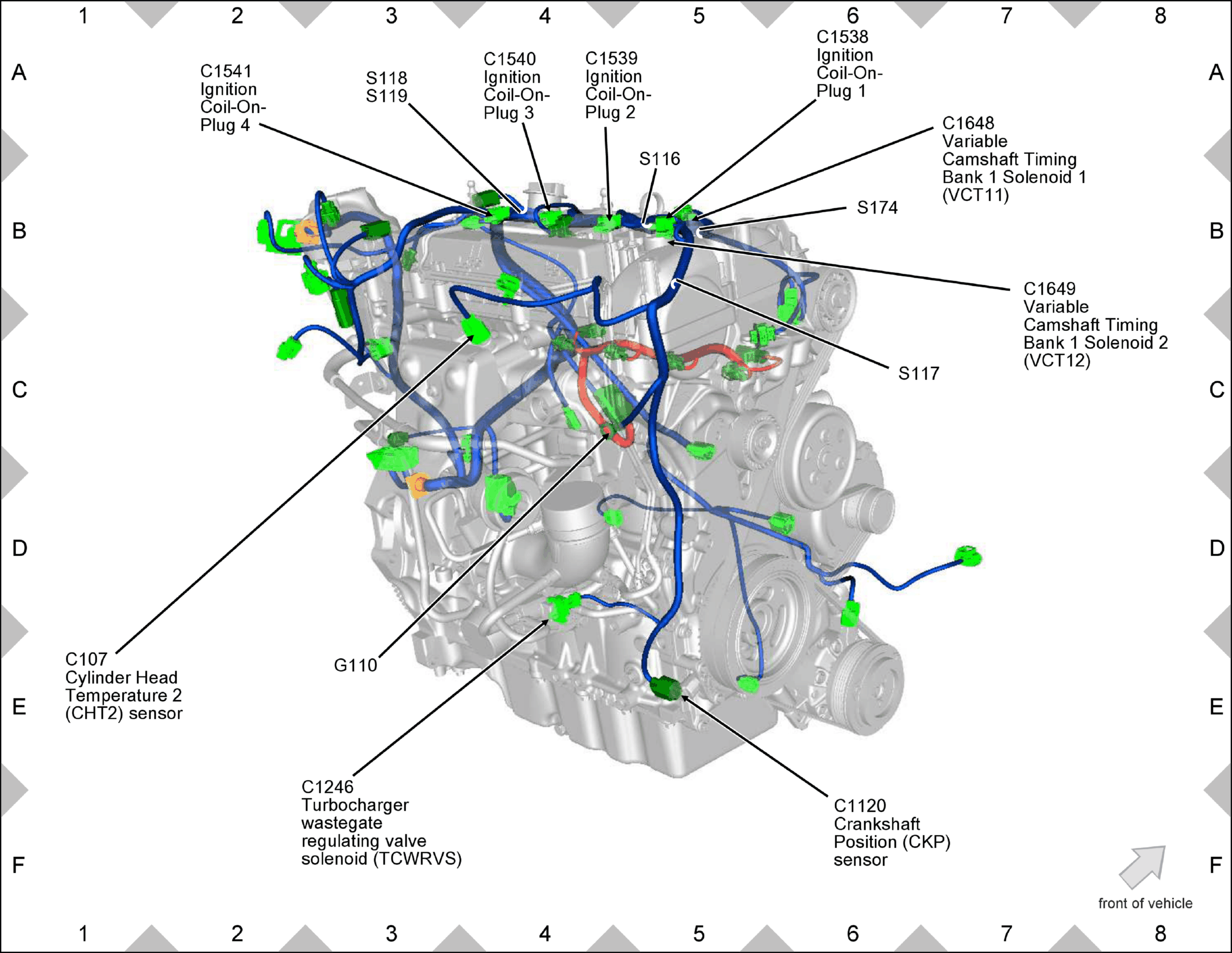

GFDW17791Courtesy of FORD MOTOR COMPANY

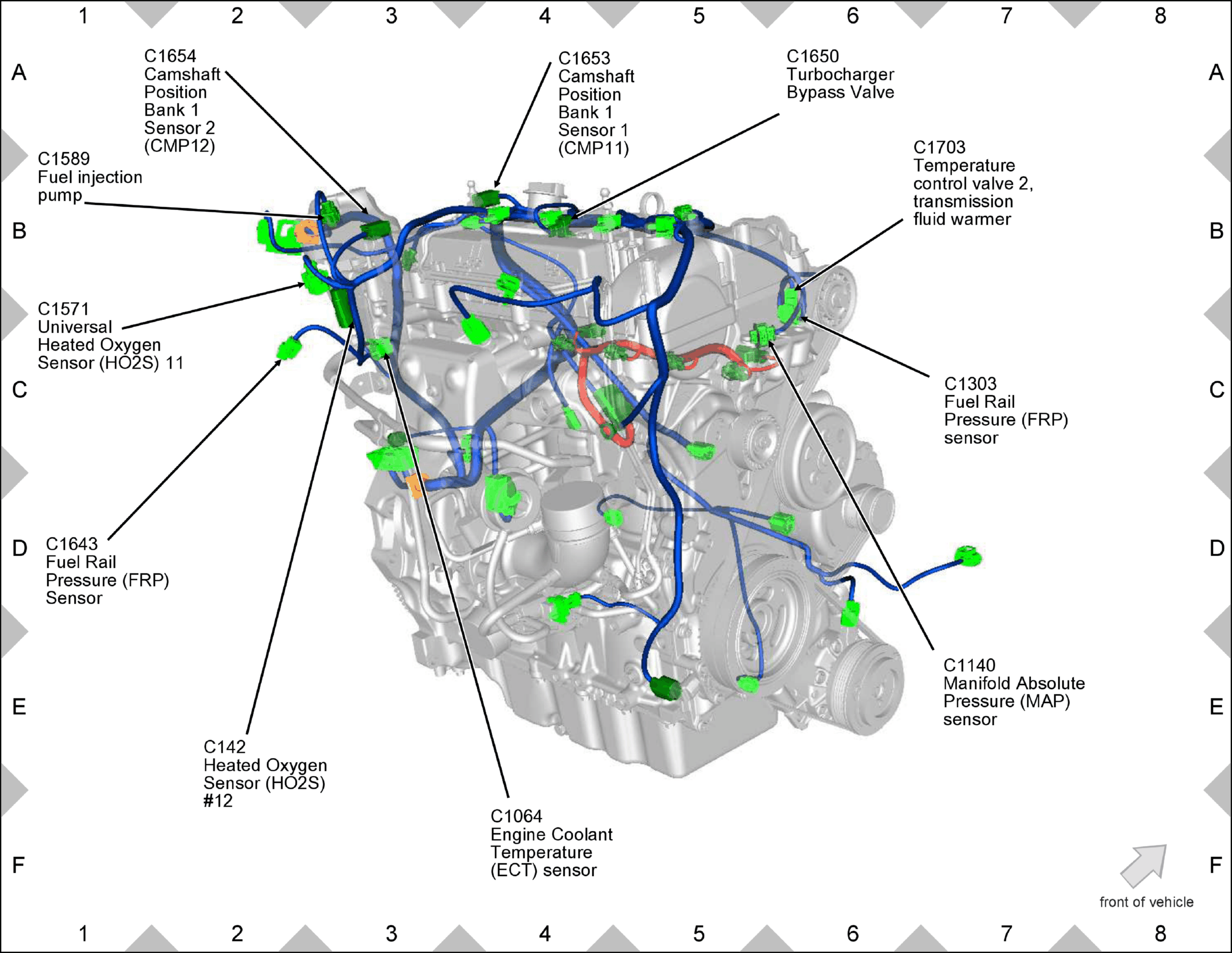

GFDW17792Courtesy of FORD MOTOR COMPANY

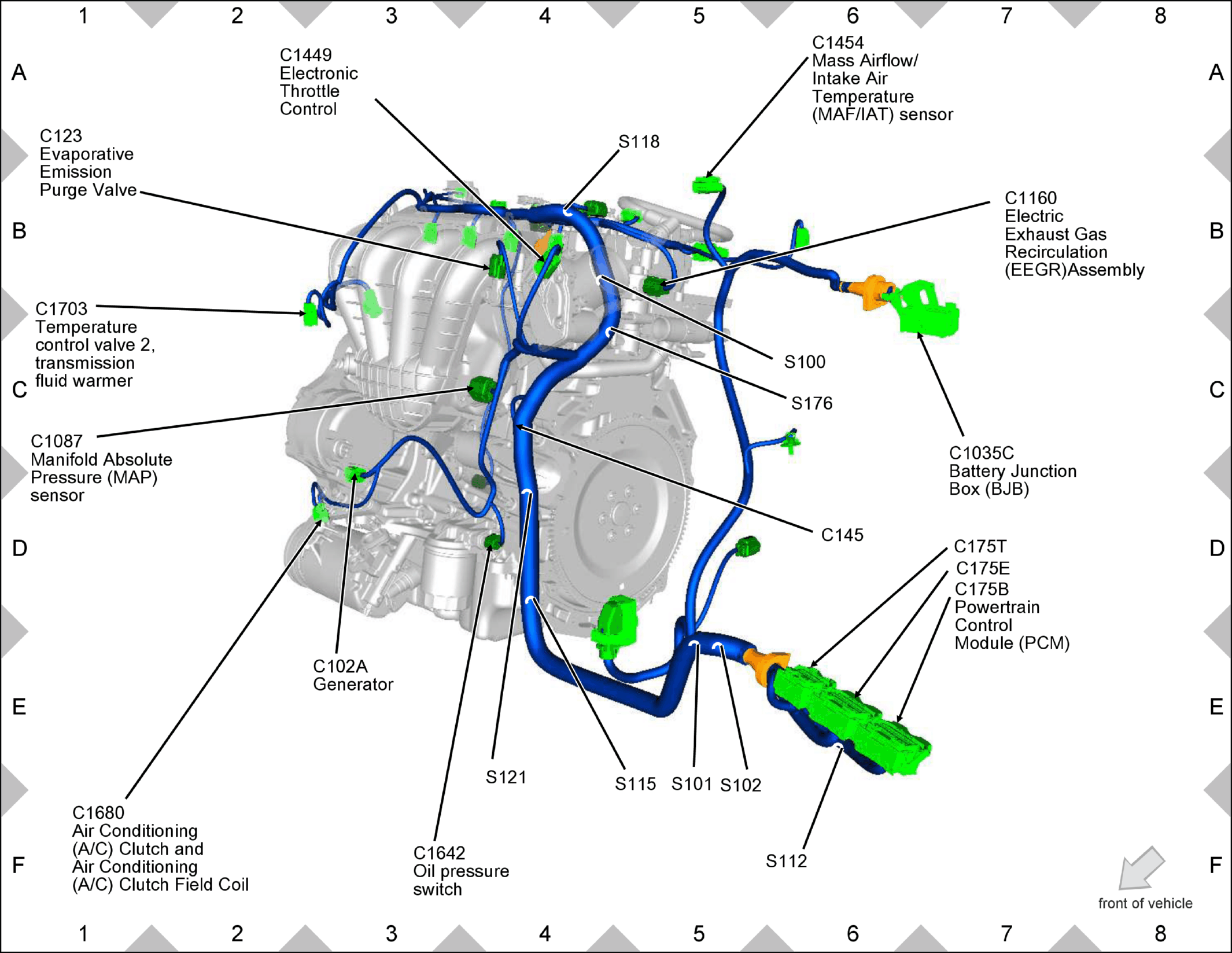

GFDW17793Courtesy of FORD MOTOR COMPANY
