Master Window Control Switch - Without Door Modules

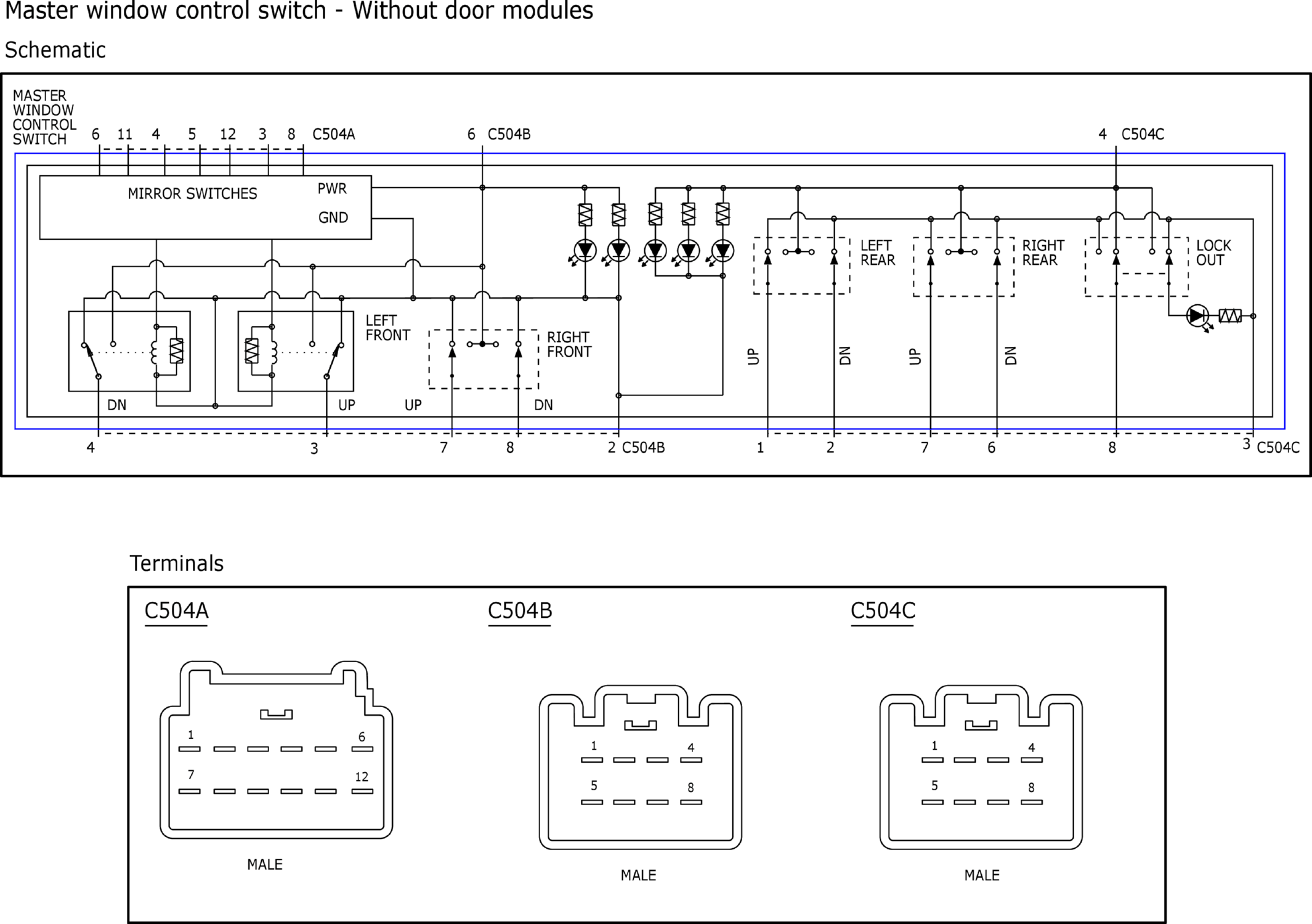

Fig 1: Master Window Control Switch - Without Door Modules (1 of 2)
GFDW18753Courtesy of FORD MOTOR COMPANY

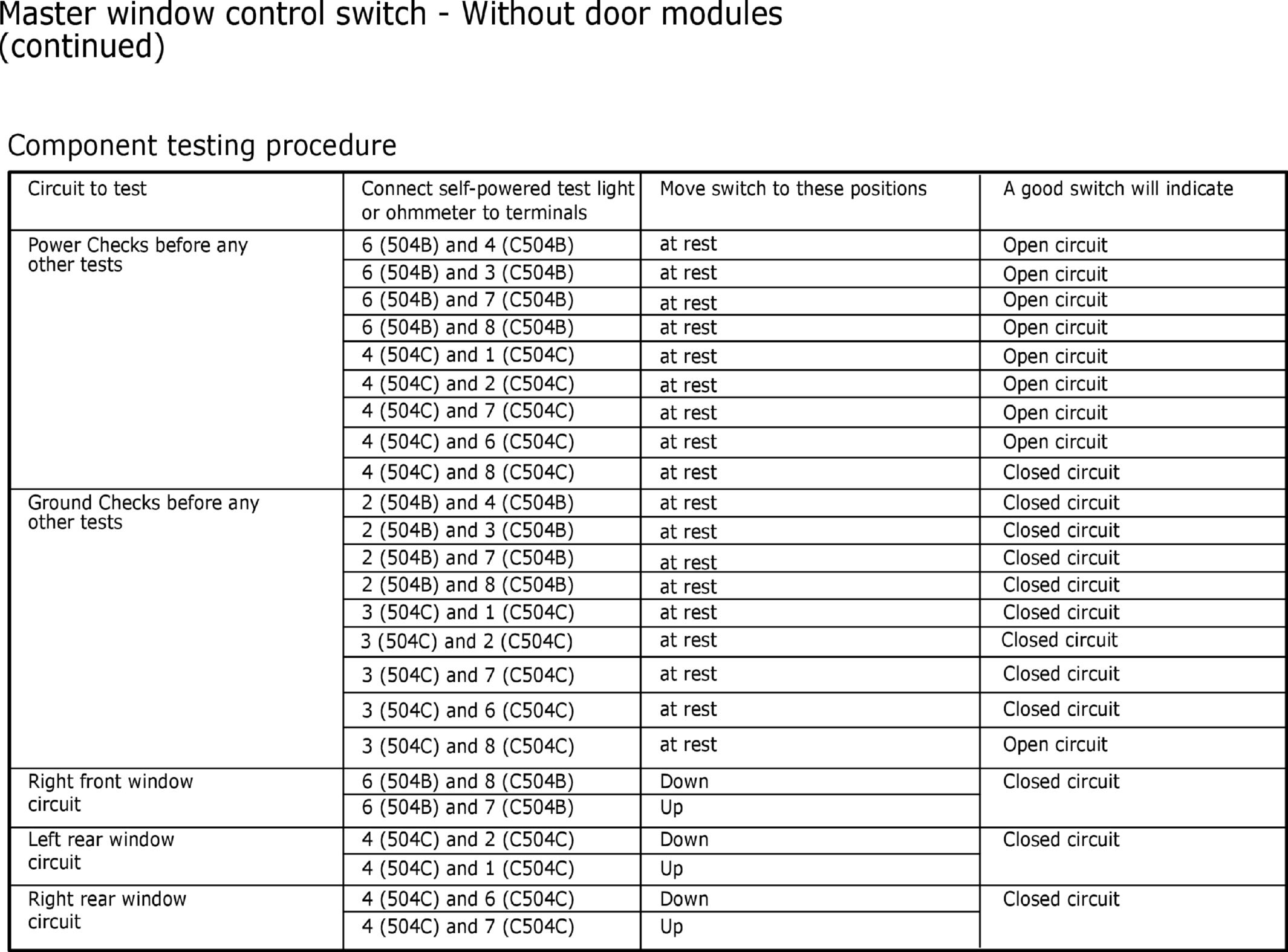

Fig 2: Master Window Control Switch - Without Door Modules (2 of 2)
GFDW18754Courtesy of FORD MOTOR COMPANY
