Component Testing: Relays

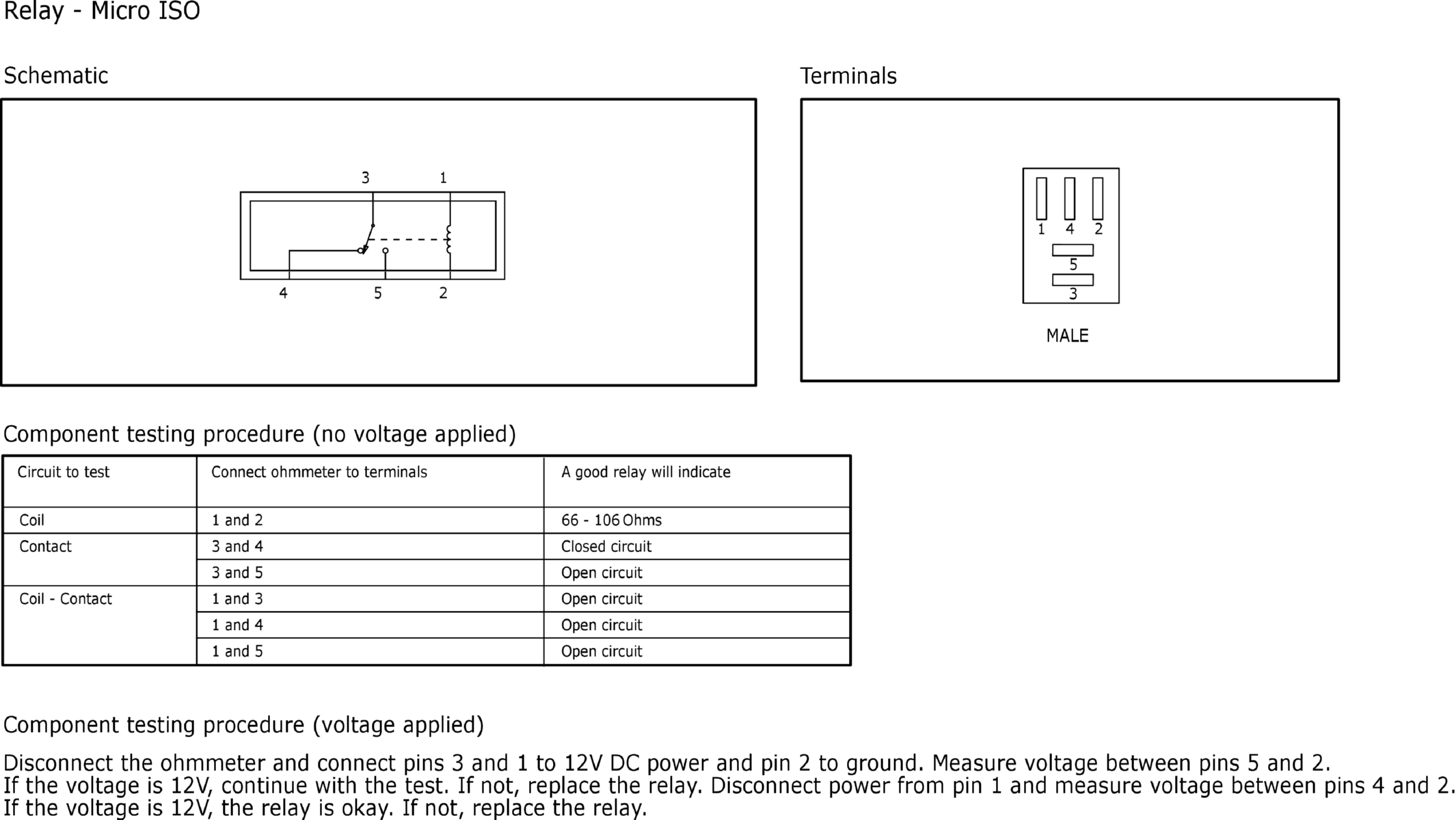

Fig 1: Relay - Micro ISO
GFDW18749Courtesy of FORD MOTOR COMPANY

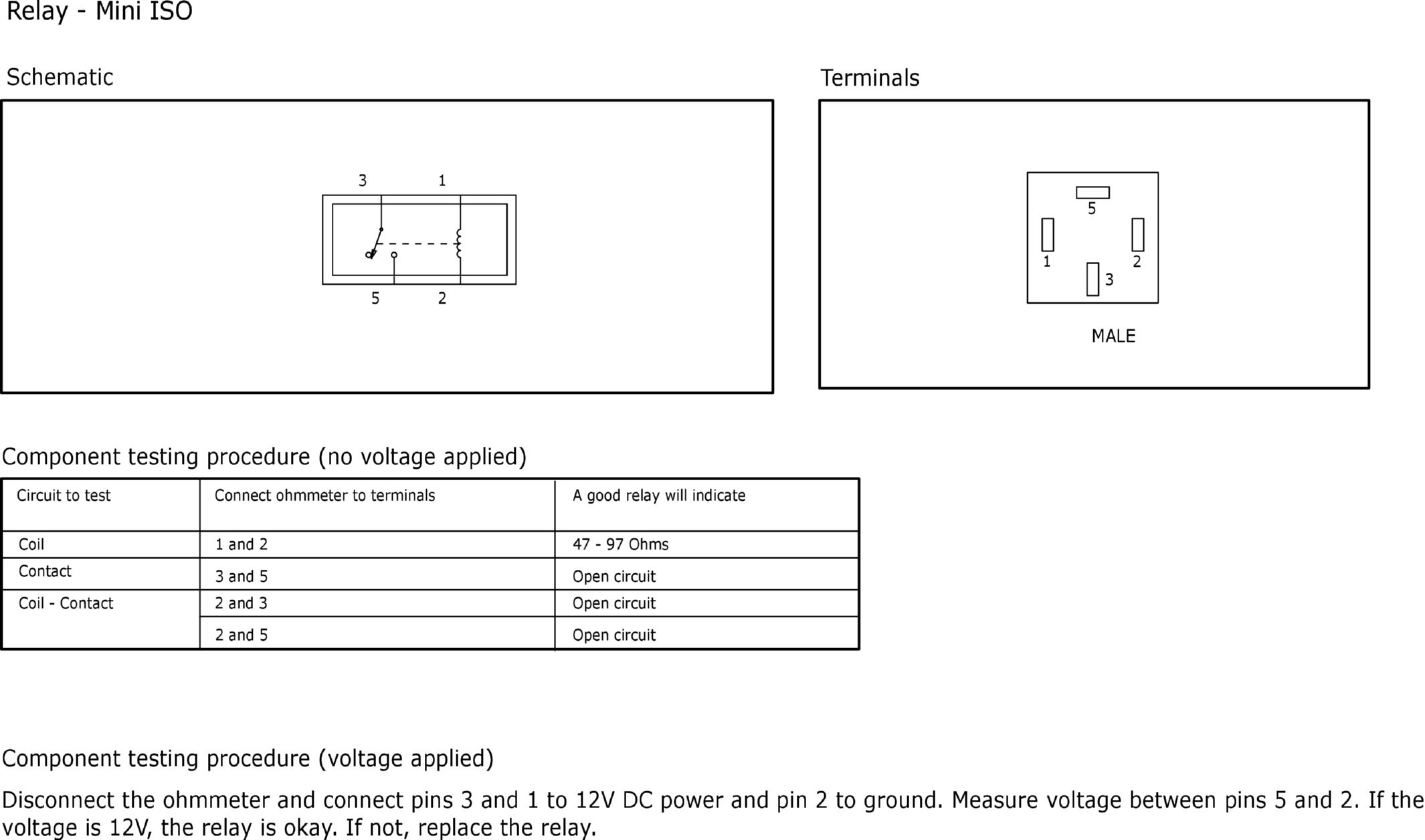

Fig 2: Relay - Mini ISO
GFDW18750Courtesy of FORD MOTOR COMPANY

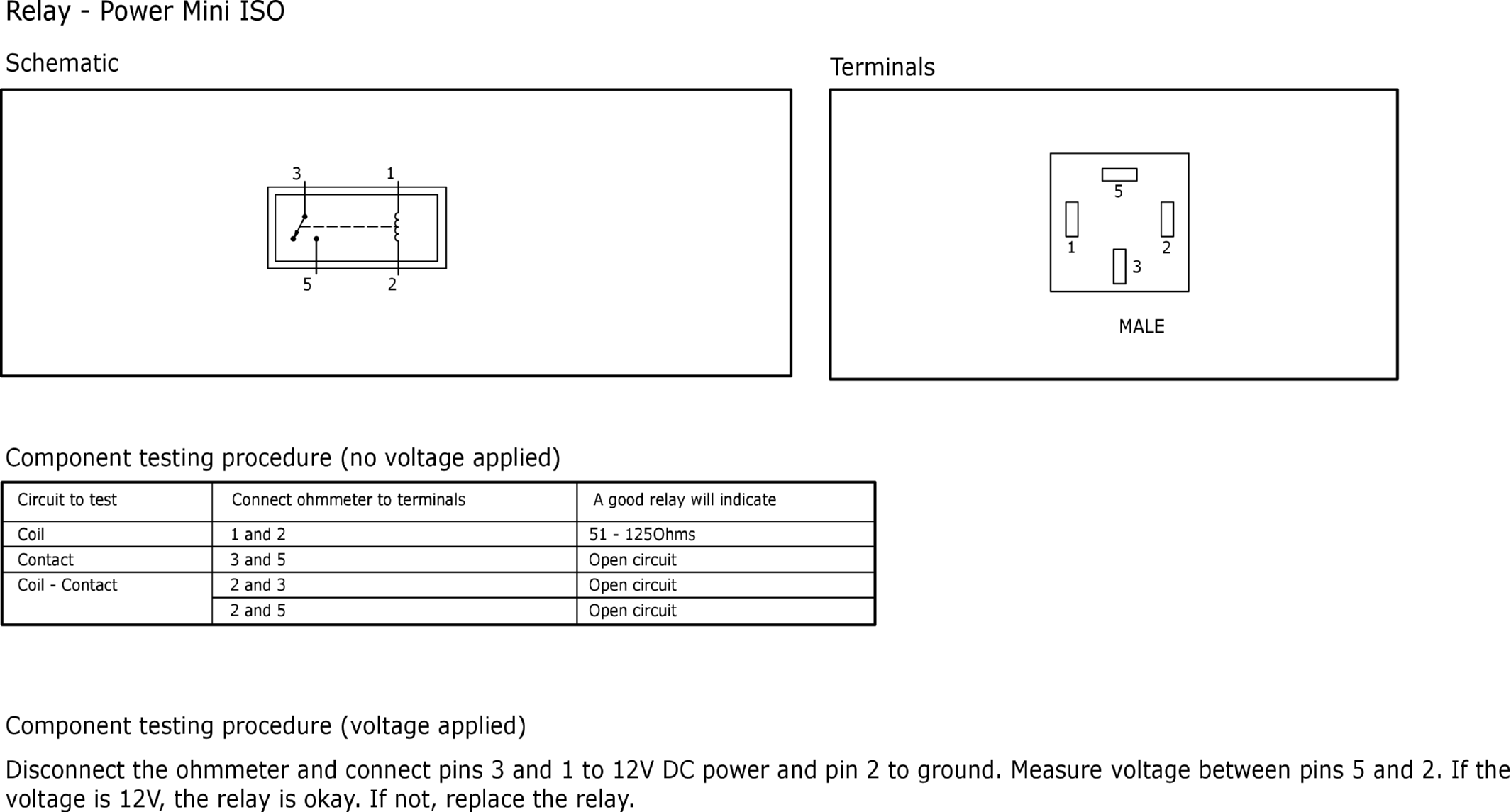

Fig 3: Relay - Power Mini ISO
GFDW18751Courtesy of FORD MOTOR COMPANY
