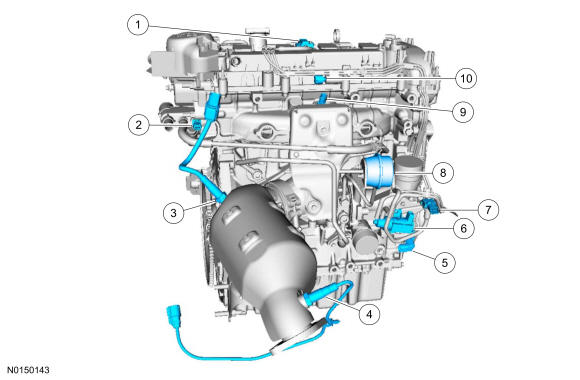

2.0L GTDI Engine Sensor Locations - RH

Courtesy of FORD MOTOR COMPANY

Item	Part Number	Description
1	9K378	Turbocharger bypass valve solenoid
2	12A648	ECT sensor
3	9F472	HO2S
4	9G444	CMS
5	6C315	CKP sensor
6	9E882	Turbocharger wastegate regulating valve solenoid
7	9F479	Wastegate vacuum sensor
8	-	Wastegate actuator
9	6K004	CHT sensor
10	030851	Filter and cover
