Removal And Installation: Seat: Notes

NOTE: For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD .

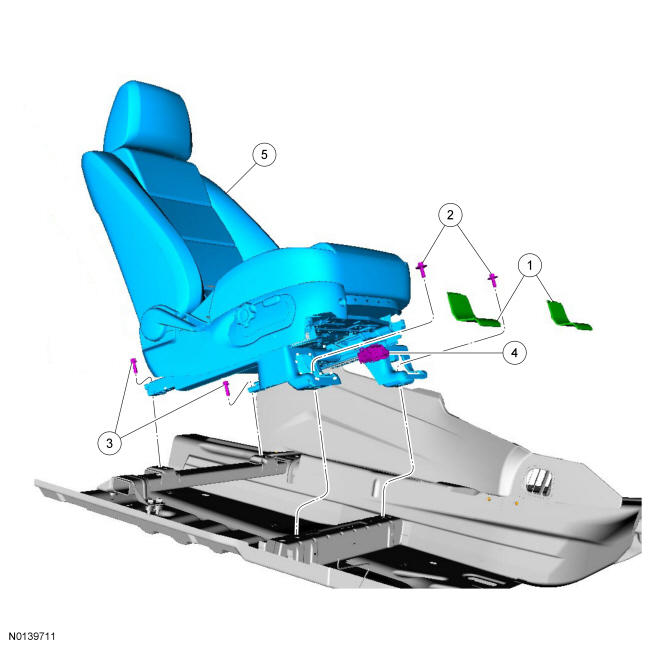

Exploded View

NOTE: Passenger side shown, driver side similar.

Courtesy of FORD MOTOR COMPANY

Item	Part Number	Description
1	78629	Front cover (2 required)
2	W709428	Front mounting bolts
3	W714018	Rear mounting bolts
4	-	Electrical connector
5	-	Passenger seat assembly
