Anti-Lock Brake System (ABS) Module: Notes

NOTE: For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD .

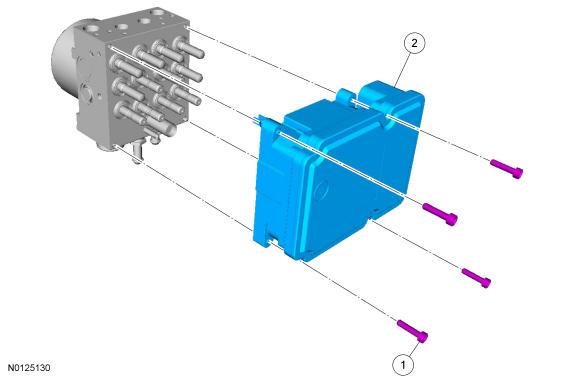

Exploded View

Courtesy of FORD MOTOR COMPANY

Item	Service Part Number	Description	Torque	Material Name	Notes
1	W302577	Anti-Lock Brake System (ABS) module screw (4 required) (also part of 2C219)	2 Nm (18 lb-in)	-	-
2	2C219	Anti-Lock Brake System (ABS) module	-	-	-
