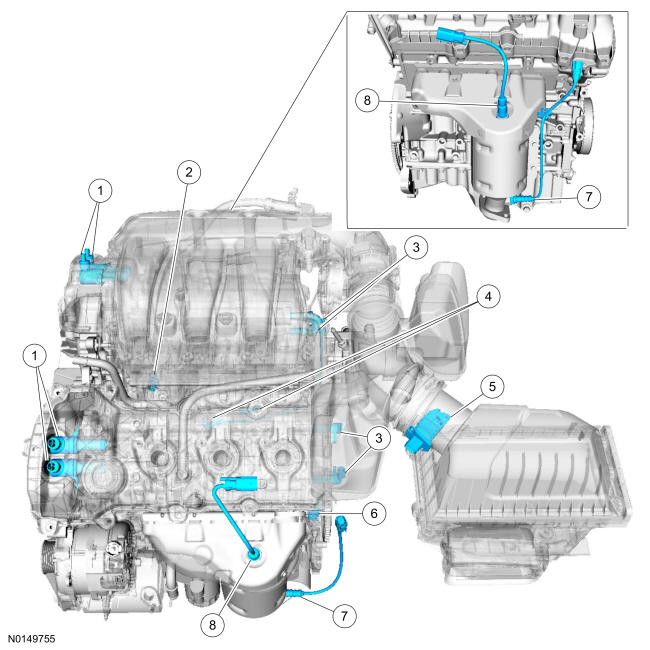

3.5L Ti-VCT Engine Sensor Locations

Courtesy of FORD MOTOR COMPANY

Item	Part Number	Description
1	6M280	VCT oil control solenoids
2	6G004	CHT sensor
3	6B288	CMP sensor
4	12A699	KS
5	12B579	MAF sensor
6	6C315	CKP sensor
7	9G444	CMS
8	9F472	HO2S
