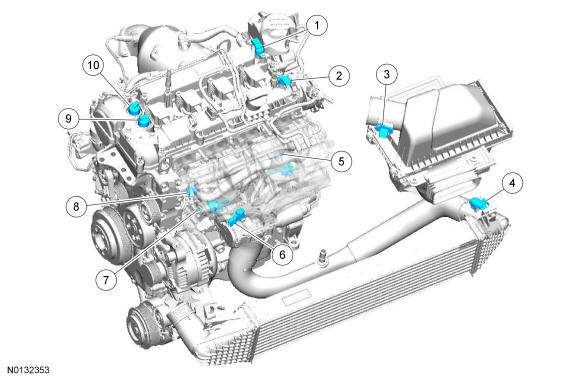

2.0L GTDI Engine Sensor Locations - LH

Courtesy of FORD MOTOR COMPANY

Item	Part Number	Description
1	12K073	Exhaust CMP sensor
2	12K073	Intake CMP sensor
3	12B579	MAF sensor
4	9F479	TCBP /CAC sensor
5	12A699	LH KS
6	9F479	MAP sensor
7	9F972	FRP sensor
8	12A699	RH KS
9	6M280	Intake VCT oil control solenoid
10	6M280	Exhaust VCT oil control solenoid
