All Terrain Control Module (ATCM): Notes
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.

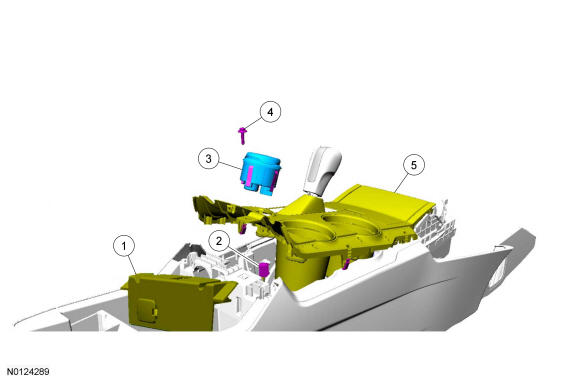

Exploded View
| Item | Part Number | Description |
|---|---|---|
| 1 | 45A76 | Arm rest latch trim panel |
| 2 | - | ATCM electrical connector (part of 14B076) |
| 3 | 14B596 | ATCM |
| 4 | W707628 | Upper finish panel screw |
| 5 | 45A76 | Upper finish panel |
