All Wheel Drive (AWD) Relay Module: Notes
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.

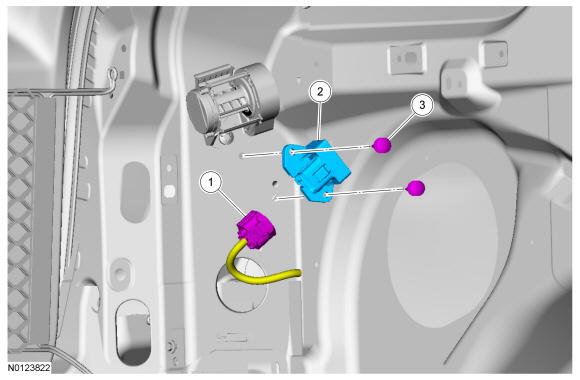

Exploded View
| Item | Part Number | Description |
|---|---|---|
| 1 | - | AWD relay module electrical connector (part of 14A005) |
| 2 | 7E453 | AWD relay module |
| 3 | W707373 | AWD relay module pushpin (2 required) |
