Seat - Exploded View, Front
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.

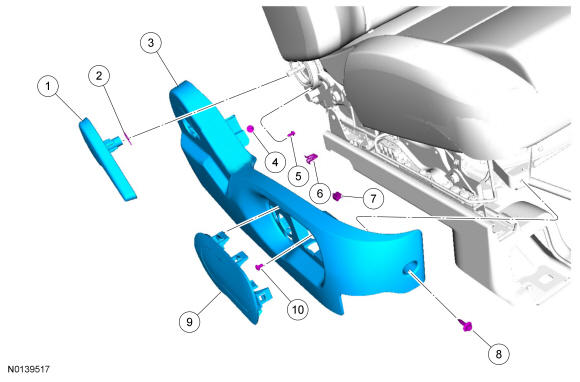

Cushion Side Shield - Manual Seat Track With Manual Recline
| Item | Part Number | Description |
|---|---|---|
| 1 | 62418 | Manual recliner handle |
| 2 | W790163 | Manual recliner handle clip |
| 3 | 62186 | Cushion side shield |
| 4 | W706676 | Pin type retainer |
| 5 | W506841 | Screw |
| 6 | W713010 | Cushion side shield retainer |
| 7 | W711045 | Cushion side shield retainer |
| 8 | W505153 | Screw |
| 9 | 63258 | Cushion side shield bezel |
| 10 | W713899 | Screw |

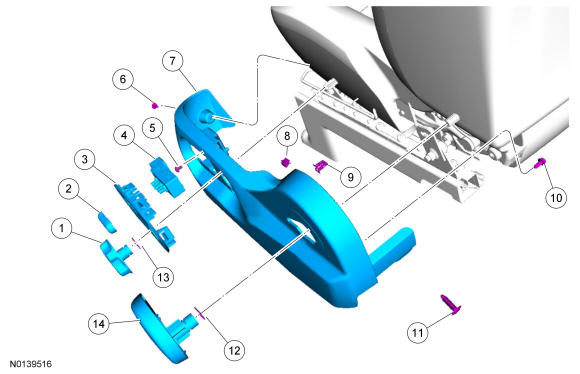

Cushion Side Shield - Power Seat Track With Manual Recline and Manual Lumber (6-Way Power)
| Item | Part Number | Description |
|---|---|---|
| 1 | 61199 | Manual lumbar handle |
| 2 | 14711 | Seat track control knob |
| 3 | 63258 | Cushion side shield bezel |
| 4 | 14A701 | Seat control switch |
| 5 | W713899 | Screw |
| 6 | W505153 | Screw |
| 7 | 62186 | Cushion side shield |
| 8 | W713010 | Cushion side shield retainer |
| 9 | W711045 | Cushion side shield retainer |
| 10 | W506841 | Screw |
| 11 | W706676 | Pin type retainer |
| 12 | W790163 | Manual recliner handle clip |
| 13 | W790161 | Manual lumbar handle clip |
| 14 | 62418 | Manual recliner handle |

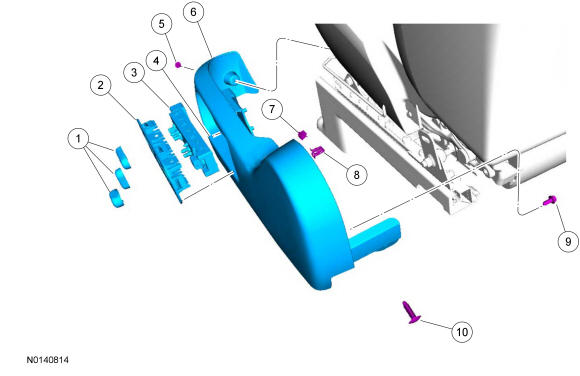

Cushion Side Shield - Power Seat Track With Power Recline and Power Lumbar (10-Way Power)
| Item | Part Number | Description |
|---|---|---|
| 1 | 14711 | Seat track control knob |
| 2 | 63258 | Cushion side shield bezel |
| 3 | 14A701 | Seat control switch |
| 4 | W713899 | Screw |
| 5 | W505153 | Screw |
| 6 | 62186 | Cushion side shield |
| 7 | W713010 | Cushion side shield retainer |
| 8 | W711045 | Cushion side shield retainer |
| 9 | W506841 | Screw |
| 10 | W706676 | Pin type retainer |

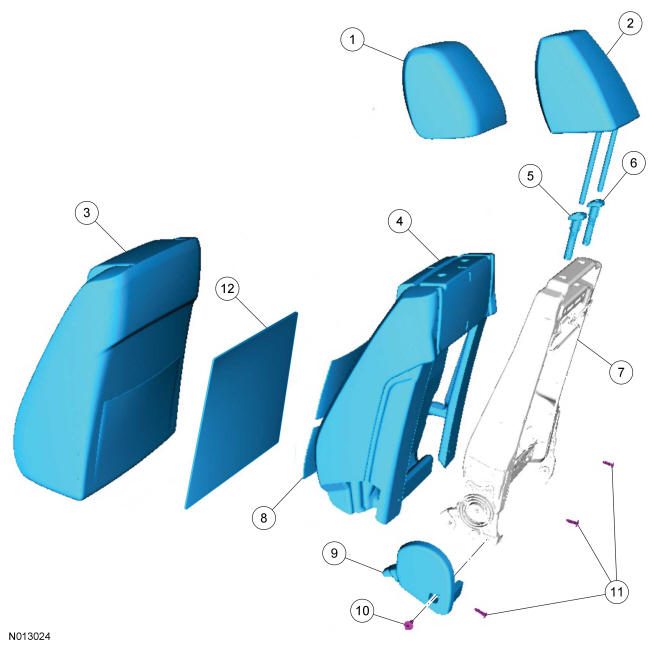

Seat Backrest - Trim Parts
| Item | Part Number | Description |
|---|---|---|
| 1 | 610A62 | Head restraint cover |
| 2 | 611A08 | Head restraint |
| 3 | 64416 | Backrest trim cover |
| 4 | 64810 | Backrest foam pad |
| 5 | 60A16 | Head restraint guide sleeve, master |
| 6 | 610A18 | Head restraint guide sleeve, slave |
| 7 | 61018 | Backrest frame |
| 8 | - | Backrest heater mat (If equipped, part of 61018) |
| 9 | 62186 | Cushion side shield |
| 10 | W710250 | Scrivet |
| 11 | W706676 | Pin type retainer |
| 12 | - | Stab shield (police package) |

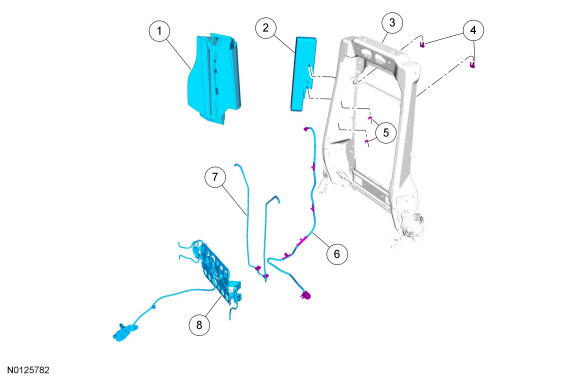

Seat Backrest - Frame Parts With Manual Lumbar and Static Lumbar
| Item | Part Number | Description |
|---|---|---|
| 1 | 610E38 | Deployment chute |
| 2 | 611D10 | Side air bag module |
| 3 | 61018 | Backrest frame |
| 4 | W790133 | Static lumbar-to-backrest frame clip |
| 5 | W520111 | Side air bag module-to-backrest frame nuts |
| 6 | 14C687 | Side air bag module jumper wire harness |
| 7 | 64842 | Static lumbar (if equipped) |
| 8 | 65500 | Manual lumbar adjust assembly (if equipped) |

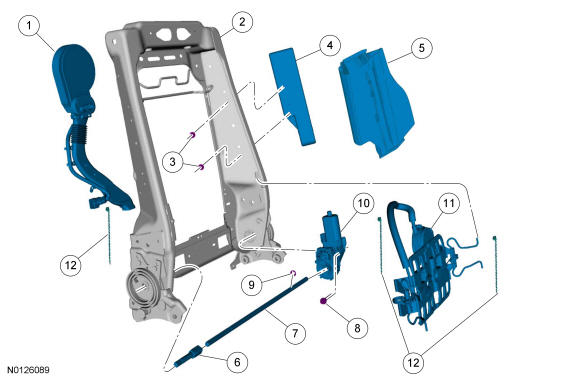

Seat Backrest - Frame Parts With Power Lumbar, Power Recline and Climate Controlled Seat System
| Item | Part Number | Description |
|---|---|---|
| 1 | 19N550 | Backrest TED (if equipped) |
| 2 | 61018 | Backrest frame |
| 3 | W520111 | Side air bag module-to-backrest frame nuts |
| 4 | 611D10 | Side air bag module |
| 5 | 610E38 | Deployment chute |
| 6 | 613A68 | Short recliner shaft (if equipped) |
| 7 | 613A68 | Long recliner shaft (if equipped) |
| 8 | W701242 | Power recline motor bolt (if equipped) |
| 9 | 61479 | Recliner shaft E-clip (if equipped) |
| 10 | 14547 | Power recline motor (if equipped) |
| 11 | 65500 | Power lumbar adjust assembly (if equipped) |
| 12 | - | Zip tie (if equipped) |

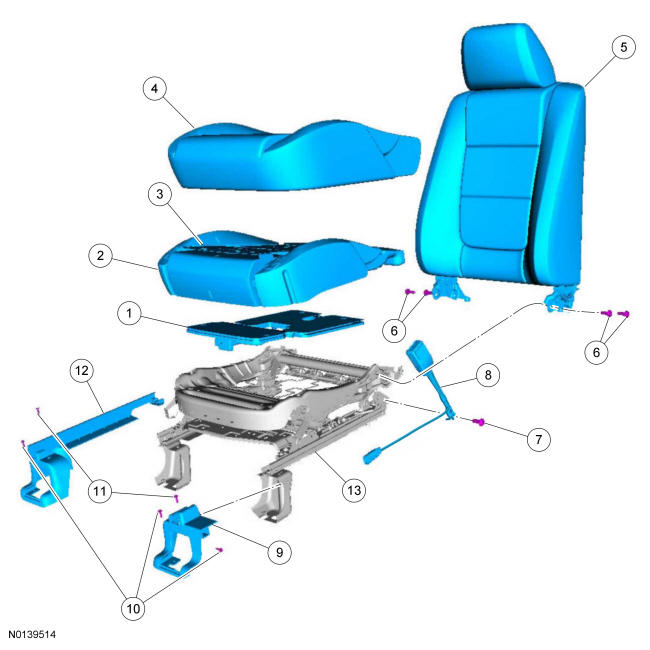

Seat Cushion With an Original Equipment Manufacturer (OEM) Occupant Classification System (OCS)
| Item | Part Number | Description |
|---|---|---|
| 1 | - | OEM OCS (part of 632A22) (Part of OCS service kit) |
| 2 | - | Passenger cushion foam pad. (part of 632A22 and the OCS service kit) |
| 2 | 632A23 | Driver cushion foam pad |
| 3 | - | Cushion heater mat (if equipped) (part of 632A22/632A23) |
| 4 | 62900 | Cushion cover |
| 5 | - | Backrest assembly |
| 6 | W707385 | Recliner-to-seat track bolts (4 required) |
| 7 | W712978 | Safety belt buckle and pretensioner bolt |
| 8 | 61202 | Safety belt buckle |
| 9 | 61748 | Seat track cover |
| 10 | W713899 | Screw (3 required) |
| 11 | W715298 | Pin type retainer (2 required) |
| 12 | 61748 | Seat track cover |
| 13 | 61710 | Seat track |

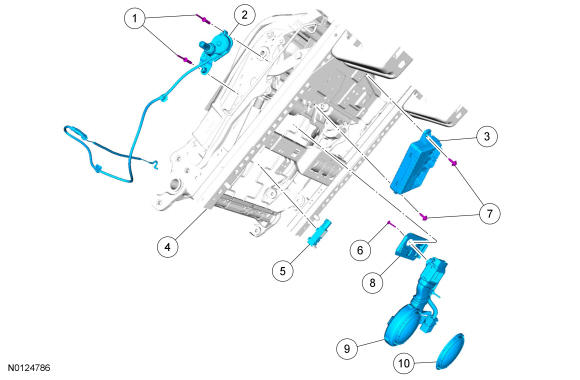

Passenger Power Seat Track
| Item | Part Number | Description |
|---|---|---|
| 1 | W713066 | Rivets (2 required) |
| 2 | - | Manual lumbar adjuster (part of 65500) |
| 3 | 14C724 | DCSM |
| 4 | 61710 | Seat track |
| 5 | 14B416 | Seat track position sensor. |
| 6 | - | Cushion TED adapter plate screw (part of 19N550) |
| 7 | W505153 | Screws (2 required) |
| 8 | - | Cushion TED adapter plate (part of 19N550) |
| 9 | 19N550 | Cushion TED |
| 10 | 19E880 | TED filter |

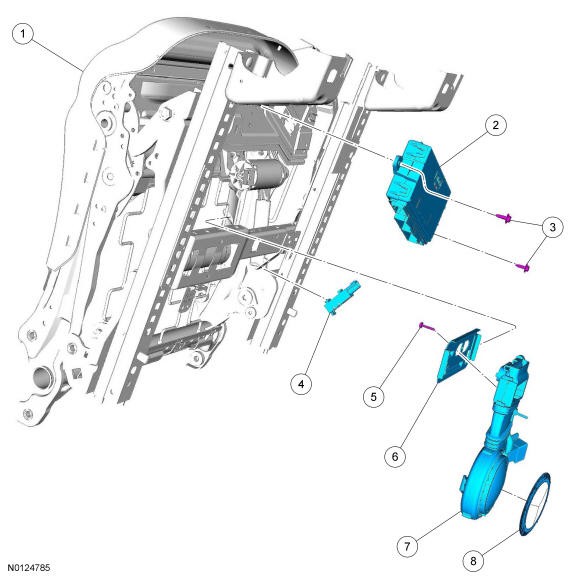

Driver Power Seat Track
| Item | Part Number | Description |
|---|---|---|
| 1 | 61710 | Seat track |
| 2 | 14C708 | DSM |
| 3 | W505153 | Screws (2 required) |
| 4 | 14B416 | Seat track position sensor. |
| 5 | - | Cushion TED adapter plate screw (part of 19N550) |
| 6 | - | Cushion TED adapter plate (part of 19N550) |
| 7 | 19N550 | Cushion TED |
| 8 | 19E880 | TED filter |
