Piston Pin Bore Diameter
General Procedure
NOTE:
Refer to general specifications in the appropriate Engine article for the appropriate specification.
- 1.NOTE: Piston and piston pins are a matched set and should not be interchanged.

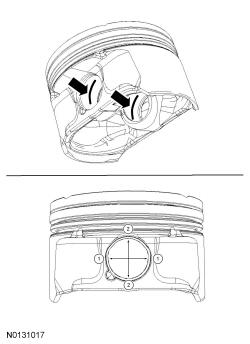

Measure the piston pin bore diameter in 2 directions in the middle of each side as shown in illustration. Verify the diameter is within specification.
