Steering Column Shroud: Removal

NOTE: Vehicle without column selector lever shown, vehicle with column selector lever similar.

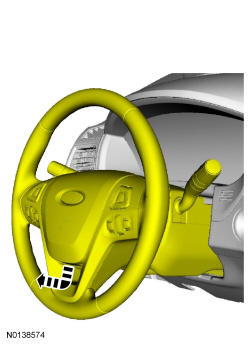

1. 1.



Courtesy of FORD MOTOR COMPANY

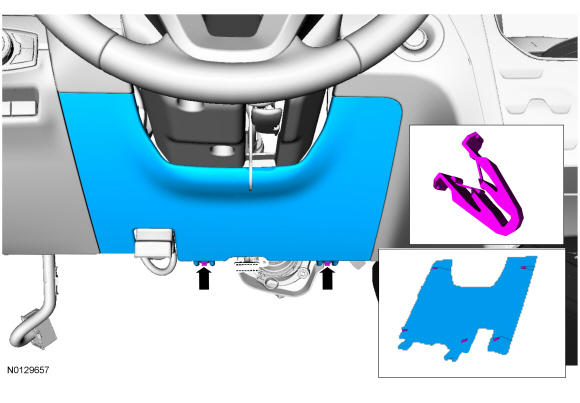

1. 2.

   Tighten to 2 Nm (18 lb-in).

Courtesy of FORD MOTOR COMPANY

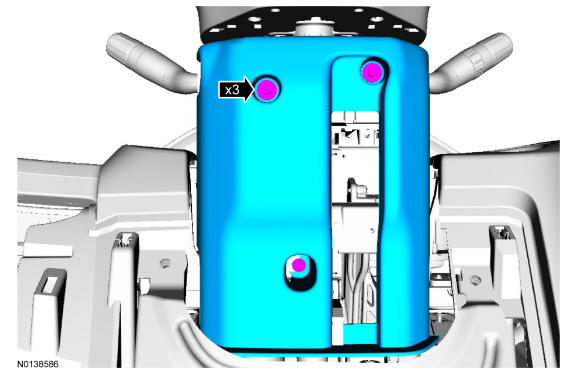

1. 3.



Courtesy of FORD MOTOR COMPANY

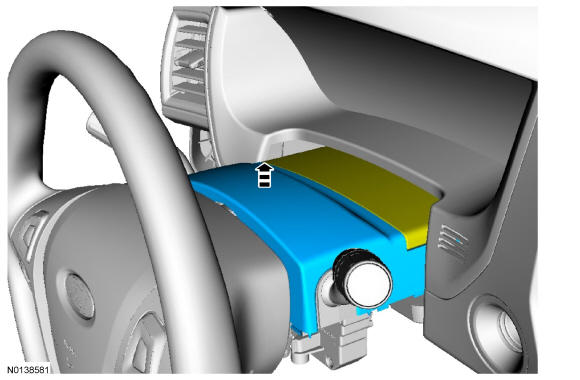

1. 4.



Courtesy of FORD MOTOR COMPANY
